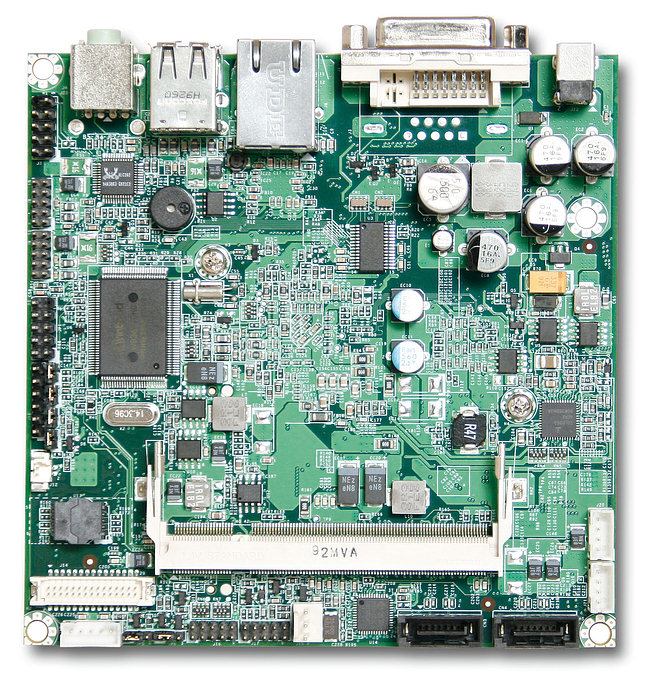

NANO-8045L takes advantage of the latest Intel Atom technologies. It supports DDR2 SDRAM, dual displays, one Gigabit Ethernet. Base on leading IntelR AtomTM solution, NANO-8045L is a compact and ultra low power dissipation board for Medical, Mobile Gaming and DS applications.

Intel Atom Solutions



Features
  • Intel® Atom™ processor Z510 / Z530 and System Controller Hub US15W

  • One 200-pin SO-DIMM supports DDR2 SDRAM up to 2GB

  • Dual independent display: DVI and 24bit LVDS

  • One Type II Compact Flash & two SATA ports

  • One Realtek Gigabit Ethernet

  • Support DC 12V input

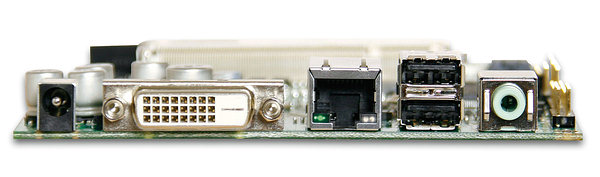

  • Only 17mm height for rear I/O


    • Chassis selections:
    WADES-1012 Chassis
    -1 x CF(II)
    -2.5" SATA HDD
    -Wi-Fi
Ordering Guide
NANO-8045L-1100  Intel Atom Z510 CPU based Nano-ITX Board
NANO-8045L-1600  Intel Atom Z530 CPU based Nano-ITX Board
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
