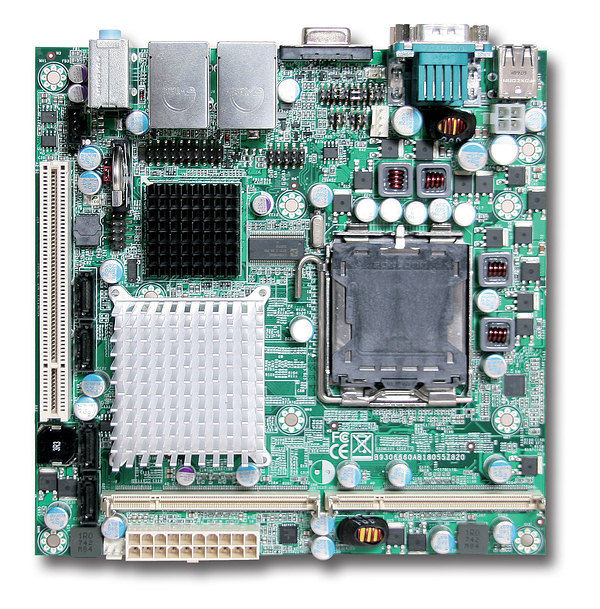

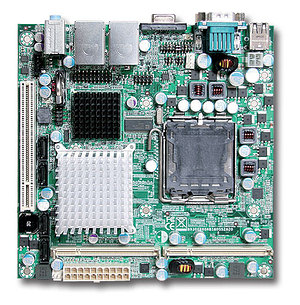

WADE-8055 is an industrial-grade Mini-ITX board with best C/P ratio. The LGA775 CPU socket enables WADE-8055 to support wide range processors, such as Intel^® Core™2 Duo, Pentium^® 4 or Celeron^® CPUs. With special heatsink design, WADE-8055 can run with Celeron^® 440 35W processor without any fan.Moreover, all solid type capacitors enhance the durability,stability and reliability of the board as well.

Ordering Guide

Larger Image(s)

Datasheet

Quote & Request

Features

Intel^® Core™ 2 Duo processor

Intel^® 945G GMCH Chipset

Max. 4GB, DDR2 SDRAM in dual SO-DIMM sockets

Four SATA ports support

Two GbE-LAN ports and one PCI slot

Max. two COM and eight USB 2.0 ports

All capacitors are solid type

Chassis selections:


WADE-2221	WADE-2231Q	WADE-2232Q	ARTO-220
-1 x PCI Slot -2.5" HDD	-1 x PCI Slot -3.5" HDD	-2 x PCI Slot -3.5" HDD	-2 x PCI Slots -3.5" HDD -1.5U(H) x 13.6"(W)

Ordering Guide


	WADE-8055	Intel^® Core™2 Duo / Pentium^® 4 / Celeron^® D processors Mini-ITX Board
	PEP-581R/582R	One/Two slots PCI riser card
	PEP-572L	Two slots PCI riser card (Cable type)

*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
