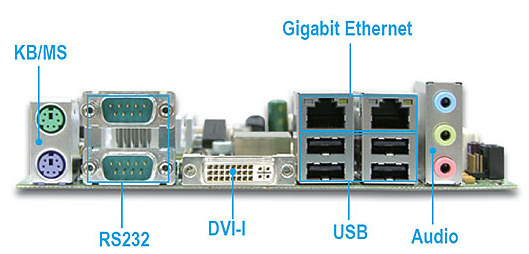

Intel® Mini-ITX board featuring latest mobile chipset GME965, WADE-8066 takes advantage of Intel® Core™ 2 Duo technologies. The graphic media accelerator X3100 provides both fast videoresponse time and high quality images via the two-channel memory architecture. WADE-8066 supports dual display by VGA, DVI, LVDS and TV-Out. With its display-enriched interface, WADE-8066 can support various multimedia devices.



Features
  • Intel® Mini-ITX board support Intel® Core™ 2 Duo processors

  • Intel® GME965 & ICH8ME Chipset

  • Max. DDR2 4GB Memory in Dual SO-DIMM Sockets

  • SATA RAID 0,1

  • Dual PCI Express x1 interface Gigabit Ethernet ports

  • One PCI Express x4 and one PCI Expansion Slot Via Riser Card


    • Chassis selections:

    WADE-2221 Chassis
    		WADE-2231Q Chassis
    WADE-2232Q Chassis
    ARTO-220
    WADE-2231Q
    -1 x PCI Slot
    -2.5" HDD    		-1 x PCI Slot
    -3.5" HDD
    		-2 x PCI Slot
    -3.5" HDD
    		-2 x PCI Slots
    -3.5" HDD
    -1.5U(H) x 13.6"(W)
Ordering Guide
WADE-8066  Intel® Mini-ITX board support Core™ 2 Duo and Celeron M processors Main Board with DVI, Audio, GbE LANs, 8 USB 2.0
B9970540  1U active heatsink
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
