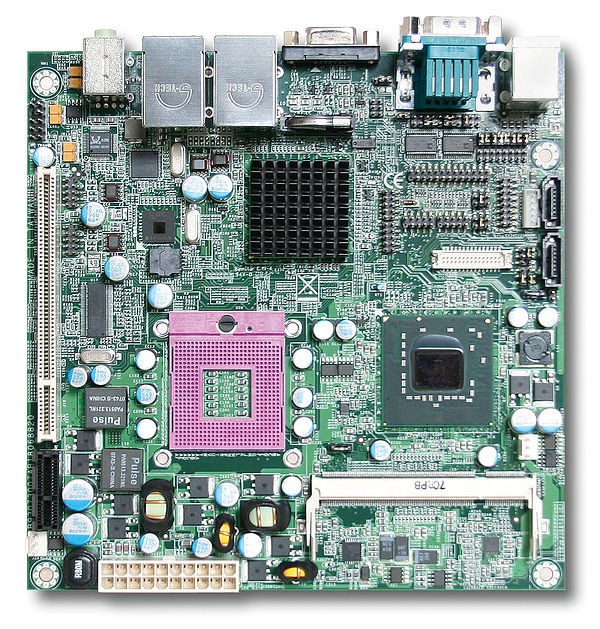

The WADE-8068 built with Intel® mobile GME965 chipset and takes advantage of Intel® Core™ 2 Duo technologies that can support dual channel DDR2 memory, two Gigabit Ethernet ports, one expansion PCI-Express x1 slot and one PCI slot. Base on integrated graphic media accelerator (GMA) X3100 graphic device, WADE-8068 can support high 3D performance dual display by VGA and LVDS. With enriched serial ports make WADE-8068 can be adopted for diversity applications such as Panel PC, Lottery, Medical, Gaming and Digital Signage.



Features
  • Intel® Mini-ITX board support Intel® Core™ 2 Duo and Celeron™ M processors

  • Intel® GME965 & ICH8M-E chipset

  • Max. DDR2 4GB Memory in Dual SO-DIMM Sockets

  • Two SATA ports and one type II CF slot

  • Dual Display: VGA / 24 bith LVDS, 3rd display via expansion slot

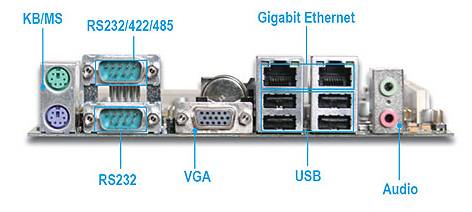

  • Dual gigabit ethernet ports

  • One PCI slot and one PCI-E x1 slot with PCI-E x4 signal

  • Three RS232 ports and one RS232/422/485 port


    • Chassis selections:

    WADE-2221 Chassis
    		WADE-2231Q Chassis
    WADE-2232Q Chassis
    ARTO-220
    WADE-2231Q
    -1 x PCI Slot
    -2.5" HDD    		-1 x PCI Slot
    -3.5" HDD
    		-2 x PCI Slot
    -3.5" HDD
    		-2 x PCI Slots
    -3.5" HDD
    -1.5U(H) x 13.6"(W)
Ordering Guide
WADE-8068  Intel® Mini-ITX board support Core™ 2 Duo and Celeron M processors Main Board with VGA, Audio, GbE LANs, 8 USB 2.0
B9970540  1U active heatsink
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
