Portwell's Latest Solution with Intel® Xeon® D-1700/2700 Processor
Introducing Portwell's newest Embedded Solutions with the latest
Intel® Xeon® D-1700 and D-2700 Processors (codenamed Ice Lake-D) in
various form factors, including 1U Network Appliance, COM Express®, and COM-HPC® Server-on-Modules, featuring high-bandwidth networks and peripherals, superior performance of computing capability with low power consumption, and long product life span. Ideal for high bandwidth and scalable performance network or IoT applications including Edge Server.
As a Titanium member of the Intel® Partner Alliance with over 25 years of
experience in the Industrial PC industry, Portwell is committed to providing the most up-to-date embedded computing solutions, product longevity, engineering support, and value-added services. Customer's success in their own marketplace is our biggest success.
If you require custom-tailored solutions for your projects, please contact American Portwell Technology at info@portwell.com or 1-877-APT-8899. |

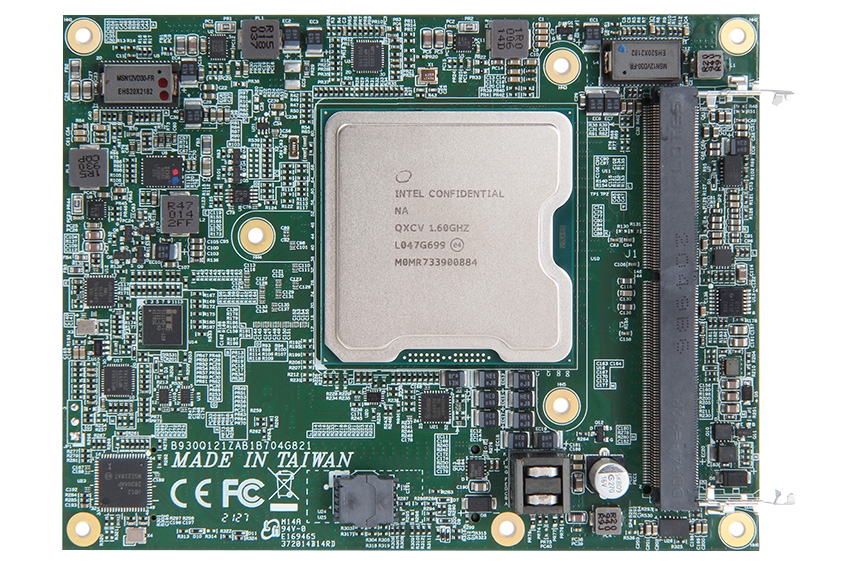

PCOM-B704GT
Come Express® Type 7 Basic Module (125 x 95mm)
|
|
- Intel® Xeon® D-1700 Series SoC, up to 10 cores
- 4x 10GbE and 1x 1GbE network interface
- 16x PCle Gen 4 and 16x PCIe Gen 3 lanes for high speed I/O cards
- On board TPM 2.0 for hardware-based security
- Industrial temperature range from -40°C ~ +85°C
|
|
|

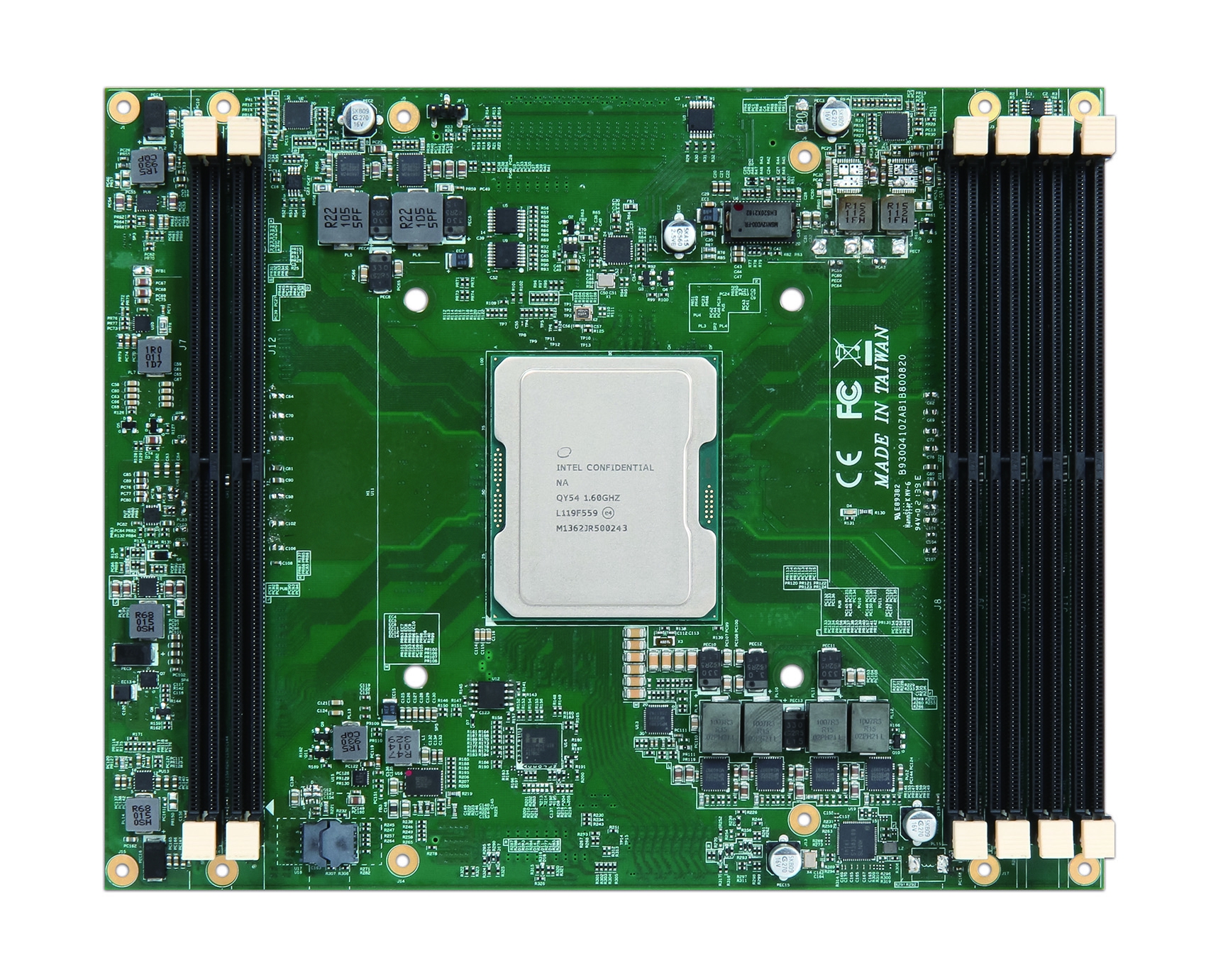

PCOM-B800GT
Come-HPC® Server Type E Module (200 x 160mm)
|
|
- Intel® Xeon® D-2700 Series SoC, up to 20 cores
- 4x 25/10GbE, 4x 10GbE, and 1x 2.5GbE network
interface (Up to 100Gb throughput)
- 2x PCIe 4.0 x16 and 2x PCIe 3.0 x8 for high speed
I/O cards, 1x PCIe Gen 3 x1 for BMC
- On-board board TPM 2.0 for hardware-based security
- Industrial temperature range from -40°C ~ +85°C
|
|
|

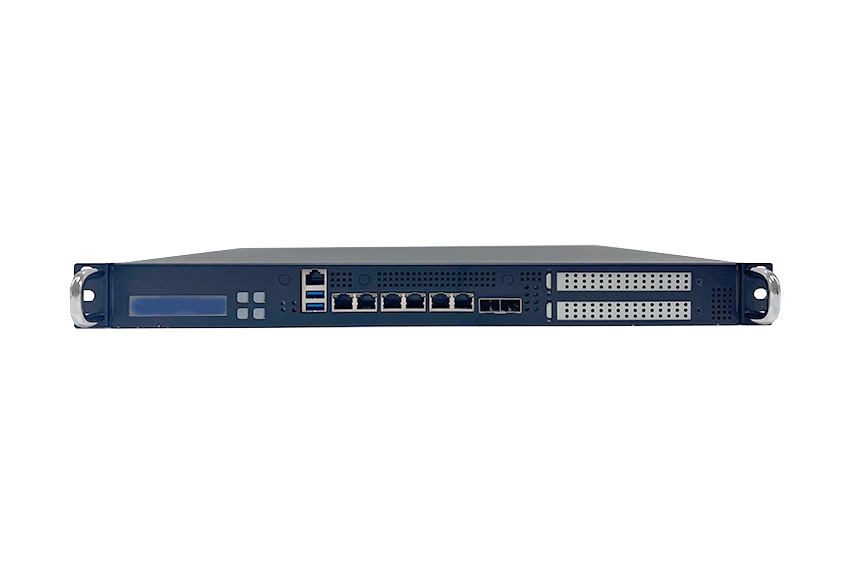

APTNS-13180
1U Network Security Appliance
|
|
- Intel ® Xeon® D-1700 Series SoC, up to 10 cores
- 6x 2.5GbE 2.5GbE copper via I225 with 2 pairs bypass, 2x 10/25GbE SFP+/SFP28 (Up to 50Gb throughput)
- 1x PCIe 4.0 x16 or 2x PCIe 4.0 x8 slots for
expansion LAN modules, or 1x OCP 3.0 x16 slot as option
- 2x 2.5” HDD/SSD, 1x M.2 Key M 2280
- 2x M.2 Key B 2242 for 4G/5G/LTE module
- On-board TPM 2.0 for hardware-based security
|
|
|
One-stop shop and professionalism starting from design phase |
|
Trusted project management, reliable design review & testing |
|
ISO 9001, ISO 13485, ISO 14001, TL 9000, QMS Certified |
|
|
|
|
|
|
