Looking for an upgrade on your IoT devices?
American Portwell Technology now offers a series of new edge computing platforms in four different form factors powered by the latest Intel Atom® x6000E and Pentium® N and J Series Processors (Codenamed Elkhart Lake) and technologies. It features power efficient, superior computing and graphics performance with low power consumption, multiple enhanced I/O including 2.5GbE LAN with Intel® TCC/TSN, triple independent 4K displays, USB 3.2 Gen 2 (10Gbps), PCIe Gen 3, SATA III, and long product life span. The available options include NANO-ITX embedded board, Qseven computer-on-module and COM Express modules in Compact and Mini form factors.
As a Titanium member of the Intel® Partner Alliance with over 25 years of experience in the Industrial PC industry, American Portwell is committed to providing the most up-to-date embedded computing solutions, product longevity, engineering support, and value-added services. Customer's success in their own marketplace is our biggest success.
If you require custom-tailored solutions for your projects, please contact American Portwell Technology at info@portwell.com or 1-877-APT-8899.
|

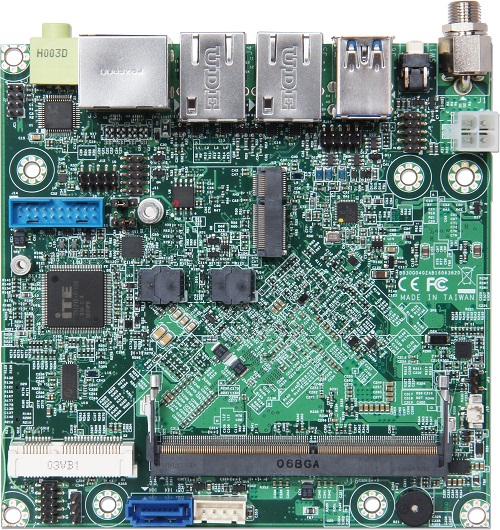

NANO-6063
NANO-ITX Embedded Board
- Intel Atom® x6000E Series SoC (up to 12W)
- DDR4 3200MT/s up to 32GB with In-Band ECC
- M.2 Key E, mini-PCIe/mSATA, SATA 3.0, 4x USB 3.2 Gen 2
- 2.5GbE LAN with Intel TCC/TSN support
- Triple displays up to 4K: DP, HDMI and VGA
- Industrial temperature range from -40°C to 85°C
|
|
|

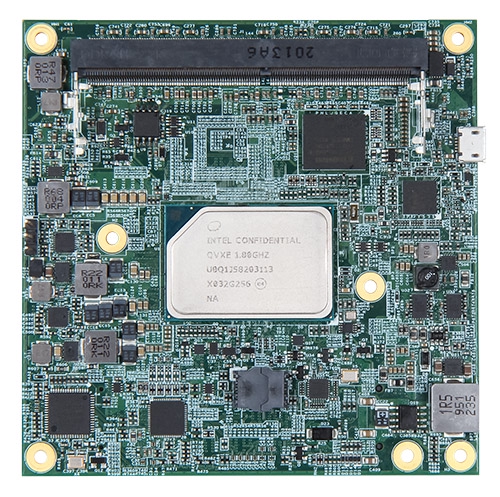

PCOM-B645VGL
COM Express Type 6 Compact Module
- Intel Atom® x6000E Series/Pentium SoC (up to 12W)
- DDR4 3200MT/s up to 32GB with In-Band ECC
- 6x PCIe 3.0 x1, 2x USB 3.2 Gen 2, 8x USB 2.0, 2x SATA 3.0
- 2.5GbE LAN with Intel® TCC/TSN support
- Triple displays up to 4K: DP/HDMI, LVDS/eDP and VGA interfaces
- Wide voltage input from 9V to 18VDC
- Industrial temperature range from -40°C to 85°C
|
|
|

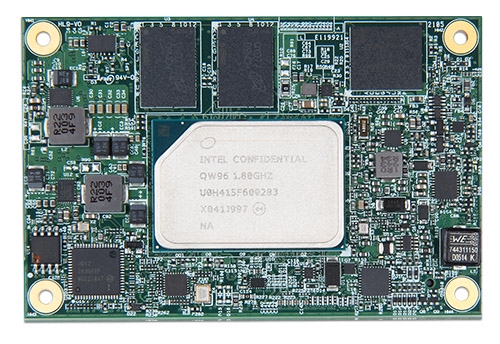

PCOM-BA02GL
COM Express Type 10 Mini Module
- Intel Atom® x6000E Series/Pentium SoC (up to 12W)
- On-board LPDDR4 3200MT/s up to 8GB with In-Band ECC
- 4x PCIe Gen 3 x1, 2x USB 3.2 Gen 2, 8x USB 2.0, 2x SATA 3.0
- 2.5GbE LAN with Intel® TCC/TSN support
- Dual displays up to 4K: DP/HDMI, LVDS/eDP
- Wide voltage input from 4.75V to 20VDC
- Industrial temperature range from -40°C to 85°C
|
|
|

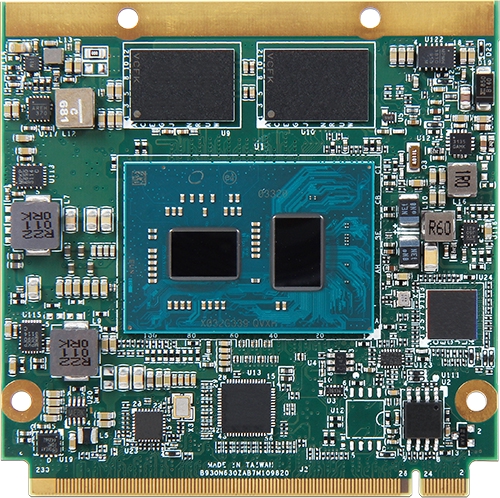

PQ7-M109
Qseven 2.1 Module
- Intel Atom® x6000E Series/Celeron SoC (up to 12W)
- On-board LPDDR4 3200MT/s up to 8GB with In-Band ECC
- Onboard eMMC 5.1 up to 256GB
- 4x PCIe Gen 3 x1, 2x USB 3.2 Gen 1, 6x USB 2.0, 2x SATA 3.0, GbE LAN, CANbus, LPC interface
- Dual displays up to 8K: DD/HDMI, 24-bit LVDS
- Industrial temperature range from -40°C to 85°C
|
|
|
Perfect for edge applications requiring ultra-low power consumption in small form factor |
|
1.5x computing performance and 2x graphics improvement upgrade |
|
|
Integrated 2.5GbE Time Sensitive Networking (TSN) & Time Coordinated Computing (TCC) for real-time industrial markets |
|
Enhanced high speed I/O and storage interfaces |
|
|
Ruggedized design with extended temperature range by SKUs |
|
Longevity support with extended product life span |
|
|
One-stop shop and professionalism starting from design phase |
|
Trusted project management, reliable design review & testing |
|
ISO 9001, ISO 13485,
ISO 14001, TL 9000
QMS Certified |
|
|
