Meet Portwell's SD-WAN Solutions
Advanced Network Solutions |
With all the trends in networking, how can we fulfill the demands of low latency, high computing, high bandwidth, more connectivity, PoE support, and IP security in a single solution? Portwell's ANS Series will be the one. ANS-8A62/64P & ANS-2121/41/42P are designed and built with SD-WAN (SDN) applications in mind for deployment in 5G and IoT devices. |
- Intel Atom® x5-E3940(4C)/ E3930(2C) Processor (Apollo Lake)
- 2x GbE RJ45, 8x GbE RJ45 (with PoE+ support by SKU)
- 1x RJ45 Console, 1x HDMI, 2x USB3.0
- 1x DDR3L 1866/1600/1333 MT/s ECC SO-DIMM up to 8GB
- 1x eMMC 16GB(on-board), 1x TPM2.0 (on-board)
- 1x Mini-PCIe(PCIe/ USB2.0), 1x M.2 Key-B Slot(PCIe/ USB3.0), 1x SATA III, 2x micro SIM Design ready for 5G and WiFi 6 (802.11ax)
- Compact design 2 in 1U rackmount
|
|

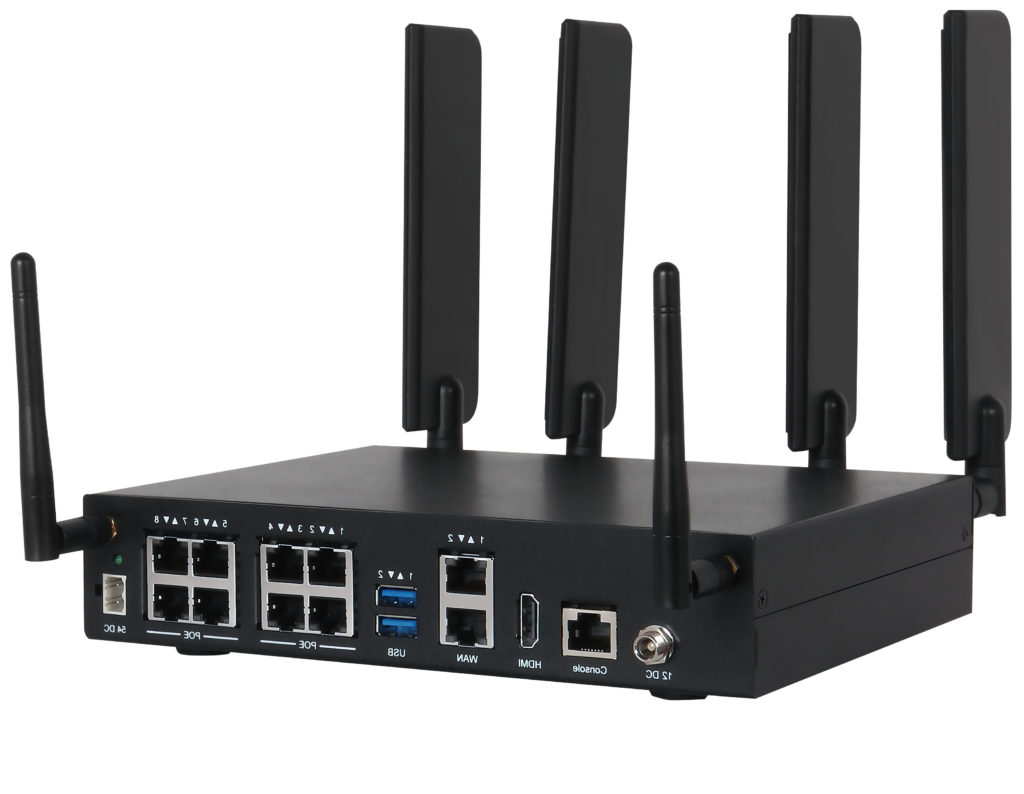

Compact System with Intel® Apollo Lake E3900 series for SD-WAN solution |
|
|

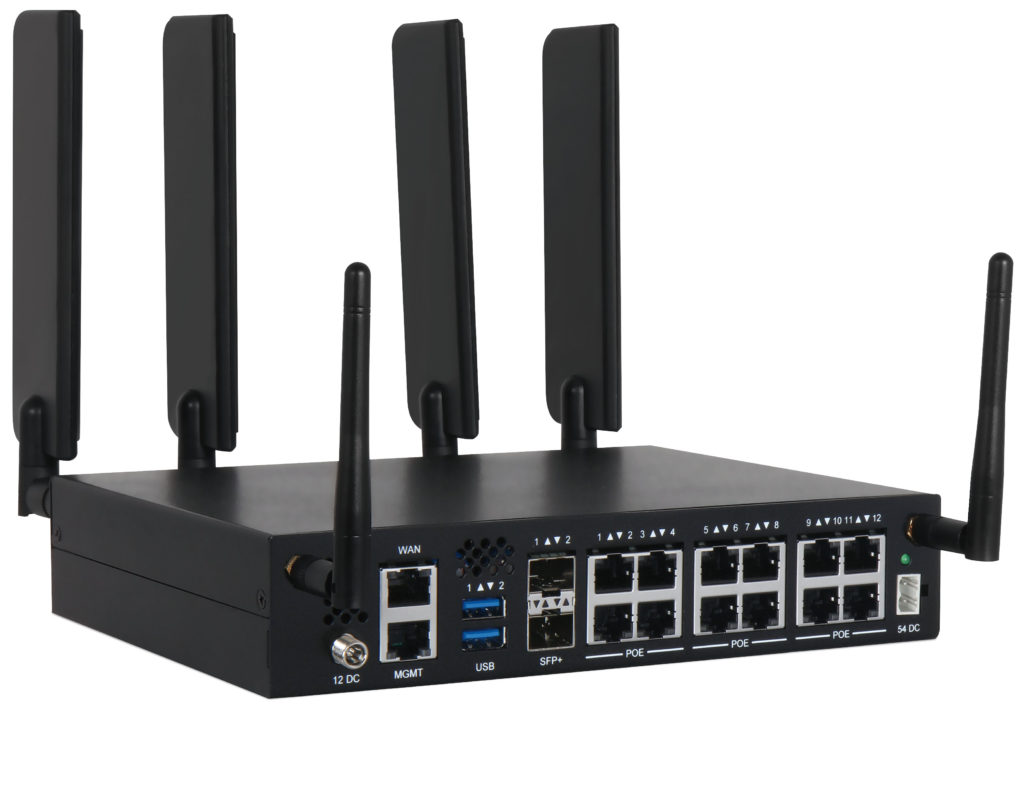

Compact System with Intel® Denverton C3758(8C)/ C3558(4C) Processor for SD-WAN solution |
|
- Intel Atom® C3758(8C)/ C3558(4C) Processor (Denverton)
- 2x 10Gb SFP+, 1x GbE
- RJ45 Marvell 88E1514, 12x GbE RJ45 RTL8111H (with PoE+ support by SKU)
- 1x RJ45 Console, 2x USB3.0
- DDR4 2400/2133MHz (by SKU), Dual SO-DIMM(support ECC), MAX. 32GB
- 1x TPM2.0(Onboard)
- 1x Mini-PCIe(PCIe/ USB2.0), 1x M.2 Key-B Slot(PCIe/USB3.0), 1x SATADOM
- Design ready for 5G and WiFi 6 (802.11ax)
- Compact design for Half-Rackmount
|
|
|
Intel® Platform
Portwell’s ANS series implements Intel Atom® Processor E3900 Series (formerly Apollo Lake) with low power consumption and Intel Atom® Processor C3000 Series (formerly Denverton) with high computing efficiency to fulfill the requirements from edge to server. |
|
Wireless
In addition to the physical Copper & Fiber and Ethernet connection, ANS series also supports rich wireless transmission interfaces such as WiFi, 3G, LTE module and LPWAN: LoRa. |
|
|
DATA COM
Housed in a compact 1/2 width cabinet, ANS series provides up to 12 high-density Ethernet GbE Ports. What’s more, 2x 10GbE Fiber Ports are equipped on Intel Denverton system to support more uplink network bandwidth. |
|
Smart Design
Compared to other equivalent-level solutions in the market, ANS series is highly competitive with its up-to-12 LAN ports support. |
|
|
IoT Solution
With the development of AI under mature IoT networks, edge-computing with powered devices enables Portwell to implement the on-site solution and process the data in a short time. |
|
Software & IPSec
To enhance the security of all types of infrastructures, Intel features DPDK and QAT in its latest product selections. As an experienced solution provider, Portwell can help our customers to accomplish software development via those resource. |
|
|
Meet AnnA-ANS Network Associate |
In ANS series products, you can use our web GUI tool assistant ANS Network Associate (AnnA), to manage your system. AnnA is a user-friendly Web tool with a novel-designed interface, and can help you manage and deploy all ANS machines through an easily maintained user interface. Through AnnA software, you can conduct settings for PoE or software switch, while using the product to help you monitor the latest status, check the health of the machine by real-time updating and also provide complete log report. Or have your IT staff use AnnA as a troubleshooting tool. It can provide an easier way to manage and handle all problem conditions. |
|
|
|
|
|
|
