Introducing Portwell's newest portfolio of Embedded Computer Boards with the latest 10th Gen Intel® Core™ and Xeon® W Processors in various form factors, featuring power efficient, superior performance of computing capability and graphics with low power consumption, and long product life span.
The rich I/Os and flexible configurations support diverse performance-demanding applications such as industrial automation, intelligent control systems, factory robot, automated test equipment, semiconductor equipment, factory process control, automated guide vehicle (AGV), medical equipment, healthcare imaging systems, communication appliances, smart transportation, IoT applications and much more.
As a Titanium member of the Intel® Partner Alliance with over 25 years of experience in the Industrial PC industry, Portwell is committed to providing the most up-to-date embedded computing solutions, product longevity, engineering support, and value-added services. Customer's success in their own marketplace is our biggest success.
If you require custom-tailored solutions for your projects, please contact American Portwell Technology today at info@portwell.com or 1-877-APT-8899. |
PEB-9783G2AR
Flex-ATX Embedded Board with 20 USBs
- 10th Gen Intel® Core™/Xeon® W Processor
- Up to 128GB DDR4 2666 MHz ECC/Non-ECC
- 20x USB, 4x COM, Dual GbE LAN, 2x SATAIII RAID 0, 1
- PCIe Gen 3, M.2 Type M support Intel Optane
- 2x DP 1.4, 1x HDMI, up to 4K resolution
|
|
|

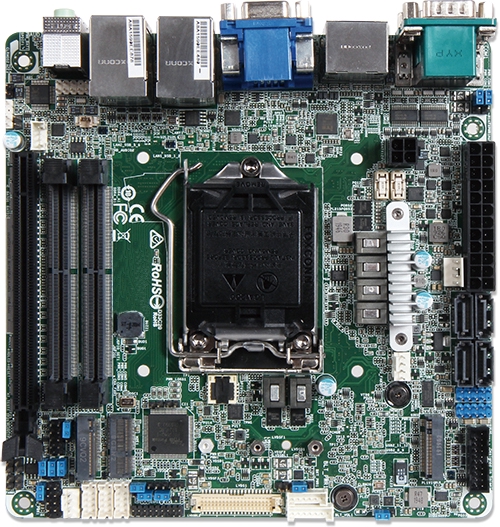

WADE-8212
Mini-ITX Embedded Board
- 10th Gen Intel® Core™ Processor
- Up to 64GB DDR4 2933 MHz Non-ECC
- PCIe Gen 3, M.2 Type E, Type M, Type B
- 10x USB, Dual GbE LAN (2.5G), 5x COM, 4x SATAIII
- 1x HDMI 2.0a, 1x DP 1.2, 1x VGA, 1x LVDS, up to 4K resolution
|
|
|
ROBO-8115VG2AR
PICMG 1.3 Full-Size Single Board Computer
- 10th Gen Intel® Core™/Xeon® W Processor
- Up to 128GB DDR4 2666 MHz ECC/Non-ECC
- 10x USB, 4x COM, Dual GbE LAN, 5x SATA RAID 0, 1, 5, 10
- PCIe Gen 3, PCI, M.2 Type M support Intel Optane
- 1x DVI-I (VGA + DVI-D), 1x HDMI, up to 4K
resolution
|
|
|

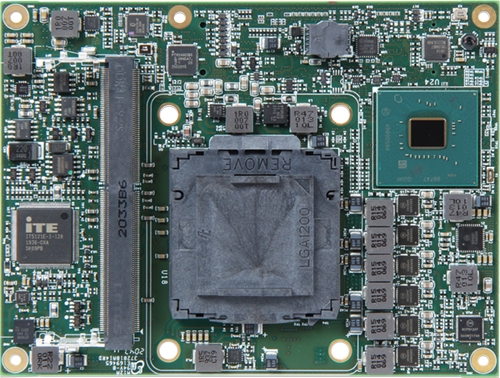

PCOM-B655VGL
COM Express Type 6 Module
- 10th Gen Intel® Core™/Xeon® W Processor
- Up to 32GB DDR4 2933 MHz ECC/Non-ECC
- 4 x USB 3.2 Gen 2, 8 x USB 2.0, 4x COM, GbE LAN, 4x SATAIII
- 1x PCIe Gen 3 x16, 8x PCIe Gen 3 x1
- 3x DDI (DP/HDMI), 1x LVDS/eDP, 1x VGA, up to 4K resolution
|
|
|
One-stop shop and professionalism starting from design phase |
|
Trusted project management, reliable design review & testing |
|
ISO 9001, ISO 13485,
ISO 14001, TL 9000
QMS Certitied |
|
|
