American Portwell's Latest Computer-on-Module (COM) Boards
Powered by 11th Gen Intel Core/Xeon Processors
The Artificial Intelligence of Things (AIoT) is the integration of Artificial Intelligence (AI) technologies and the Internet of Things (IoT) infrastructure to achieve more efficient IoT operations, enhance data management and analytics, and improve human-machine interactions (HMI). American Portwell has harnessed the power of the latest 11th Gen Intel Core/Xeon-W11000E series processors (Tiger Lake-UP3/H series platform) integrated with IoT-enhanced features and AI capability to deliver optimized computing performance and wide operating temperature in a low-power platform.
As a Titanium member of the Intel® Partner Alliance with over 25 years of experience in the embedded PC industry, American Portwell is committed to providing the most up-to-date embedded computing solutions, product longevity, engineering support, and value-added services. Customer's success in their own marketplace is our biggest success.
If you require custom-tailored solutions for your projects, please contact American Portwell Technology at info@portwell.com or 1-877-APT-8899.
|

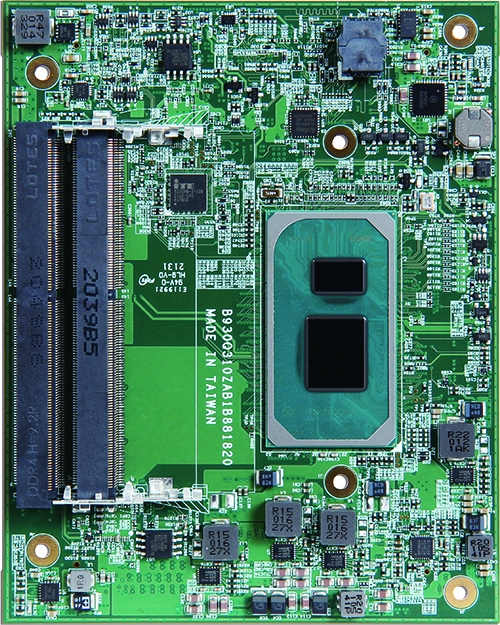

PCOM-B881
COM-HPC Client Size A Module
- 11th Gen Intel® Core™ processor (Tiger Lake-UP3)
- 4x PCIe Gen 4 and up to 10x PCIe Gen 3 lanes for high speed I/O card
- 2x 2.5GbE Base-T with vPro (industrial SKUs)
- 3x DDI and 1x eDP/MIPI-DSI for display, 2x Soundwire and 1x I2S for audio, and 2x MIPI-CSI for camera
- Industrial temperature range from -40°C to 85°C
|
|
|

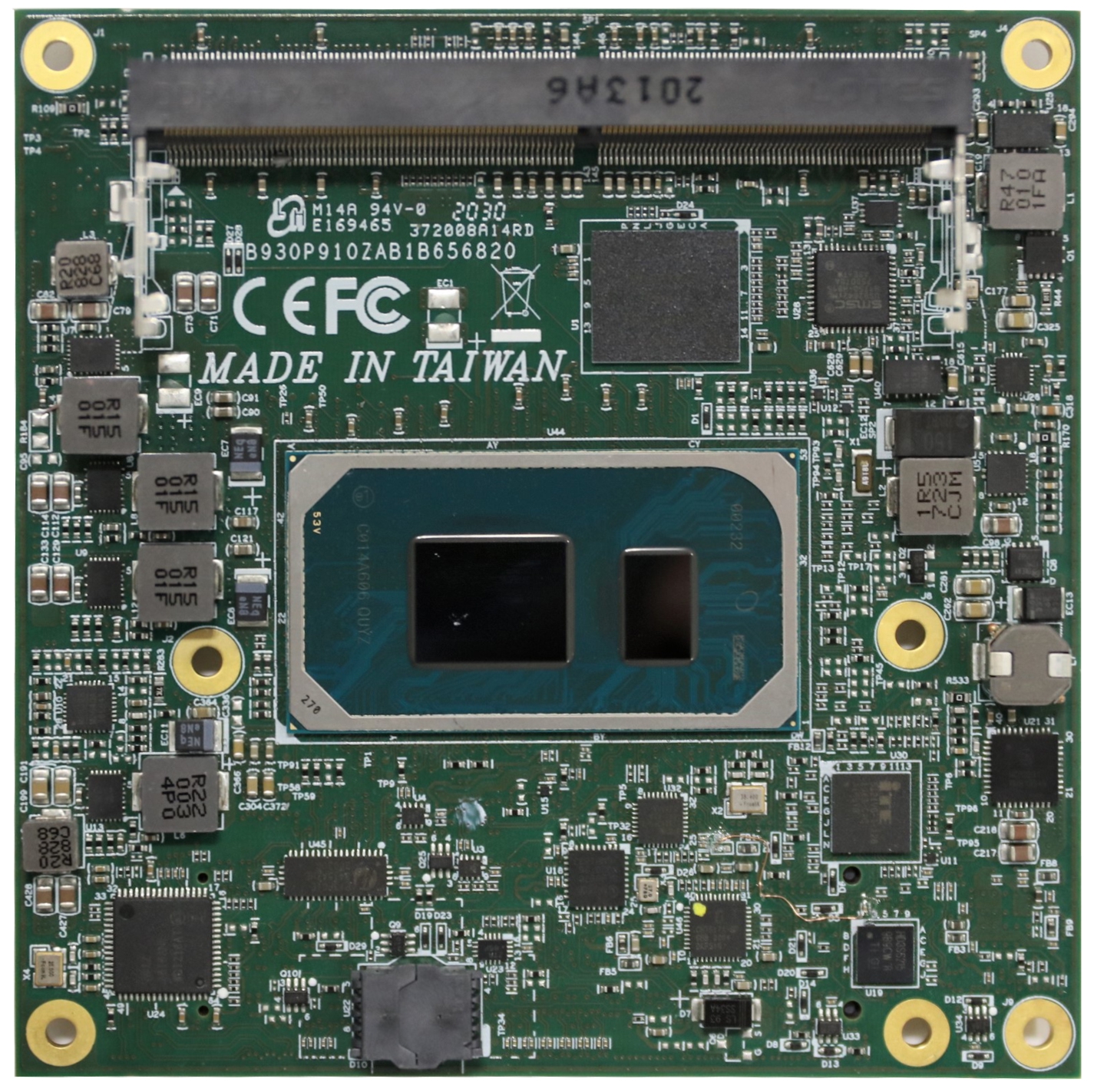

PCOM-B656VGL
COM Express Type 6 Compact Module
- 11th Gen Intel® Core™/Celeron® processor (Tiger Lake-UP3)
- 1x PCIe Gen 4 x4, 5x PCIe Gen 3 lanes, 4x USB 3.2 Gen 2, 8x USB 2.0, 2x SATA 3.0
- 2.5GbE LAN with Intel® TCC/TSN support
- Four independent displays up to 4K: DP/HDMI, LVDS/eDP and VGA interfaces
- Industrial temperature range from -40°C to 85°C
|
|
|

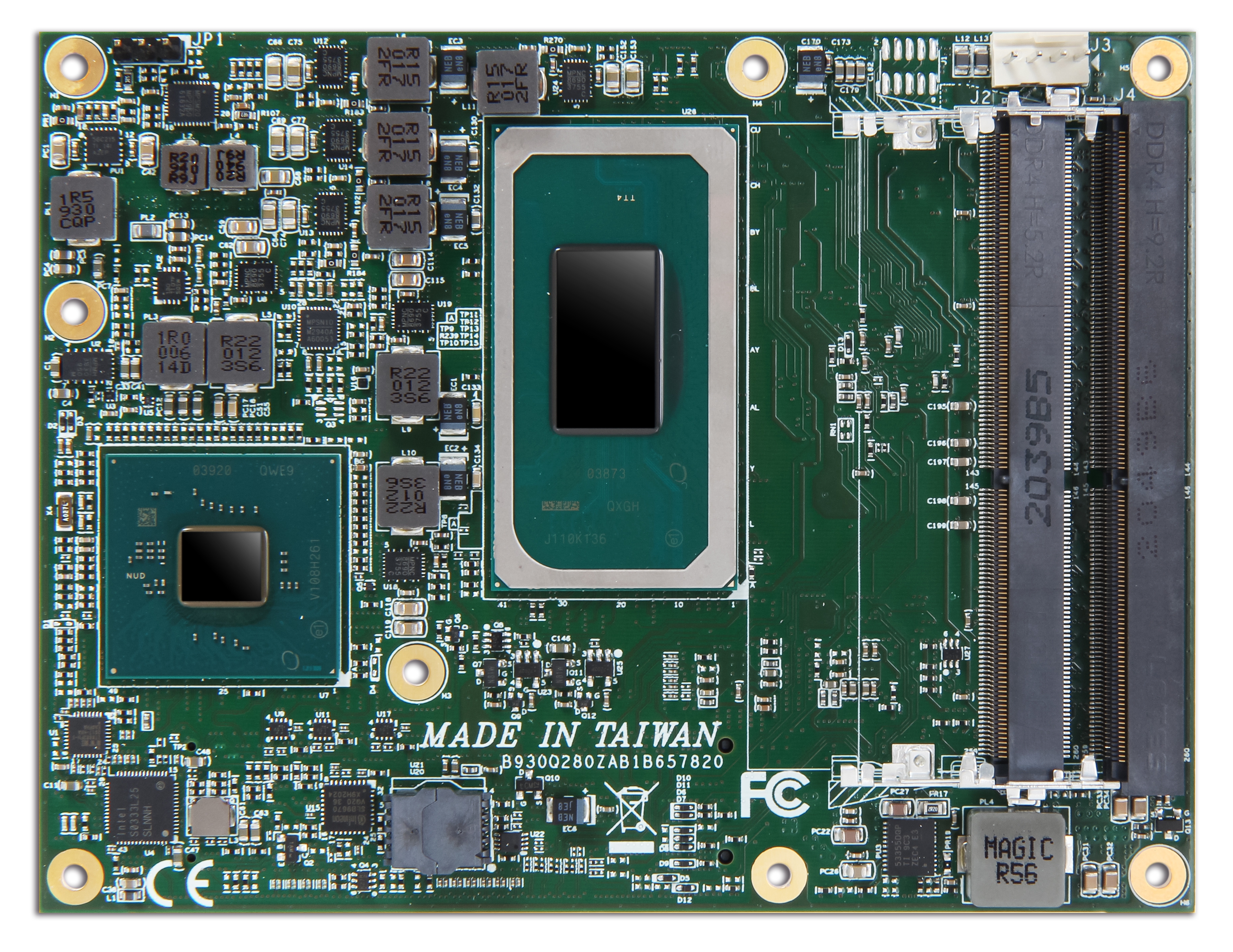

PCOM-B657VGL
COM Express Type 6 Basic Module
- 11th Gen Intel® Xeon® W-11000E Series/Core™/Celeron® processor (Tiger Lake-H)
- 1x PCIe Gen 4 x16, 8x PCIe Gen 3 x1, 4x USB 3.2 Gen 2, 8x USB 2.0, 4x SATA 3.0 with TSN, 4x SATAIII
- Four independent displays: 3x DDI, eDP/LVDS, VGA
- Industrial temperature range from -40°C to 85°C
|
|
|
Faster and More Efficient at the Edge
American Portwell's new 11th Gen Intel Core/Xeon based AIoT hardware solutions provide high-speed I/O expansion and connectivity through PCIe Gen 4 lanes, 2.5GbE ports, and USB 3.2 Gen 2 ports, empowering your next-gen edge deployment with the accelerated and efficient AI inferencing performance. The platforms can also achieve Edge computing via Intel TSN/TCC technologies and In-band ECC (IBECC) feature to enable real-time communication, computing and control.
|
|
|
Upgradable and Long Product Life
Since the demands of the industrial playing field are uneven, the newly designed COMe and COM-HPC platforms can operate in a wide temperature range suitable for harsh environments so your workflow can continue uninterrupted. These platforms are CPU-upgradable and easy to maintain, they also help shorten your design effort and safeguard development investments.
|
|
|
Diversified Applications
The new COM platforms can be applied in edge computing, smart factory, industrial and energy automation, automated test equipment, robotics, medical imaging, smart healthcare, transportation control, gaming, etc. In addition, American Portwell can also provide services to clients on the carrier board design and development, review schematics and BIOS customization.
|
|
|
