Industrial IoT Appliances

  • RSQ10 Series featuring Intel Atom® x6000E processor series
  • KUBER-2000 Series / LYNX-6K Series featuring Intel Atom® E3900 series or Intel® Celeron® N3350 processor
  • WEBS Series featuring range of Intel Atom® x7000E processor series up to 11th Gen Intel® Core™ mobile processors
  • NUC System featuring range of Intel Atom® E3900 processor series up to 7th Gen Intel® Core™ mobile processors
  • ANS Series SD-WAN appliances featuring range of Intel Atom® E3900 processor series up to Intel Atom® C3000 processor series)

RSQ10 Series

RSQ10 series is ultra-compact industrial computers featuring Intel Atom® x6000E Series processors (formerly Elkhart Lake). With a robust aluminum enclosure and DIN rail mounting option, the RSQ10 series supports extended temperature and wide power input voltage, optimizing both resilience and versatility. Its rugged and reliable design effectively supports edge computing capabilities while serving as an IIoT gateway, seamlessly integrating Intel’s real-time networking capabilities for industrial environments. With a customizable expansion interface tailored to specific field requirements, the RSQ10 series excels in diverse tasks such as efficient data collection, seamless data transition, optimized edge computing, and streamlined communication across various applications including industrial automation, intralogistics, and smart retail. Trust the RSQ10 series as a proven and ideal solution for demanding applications. Contact us to learn how it can transform your industrial computing needs.

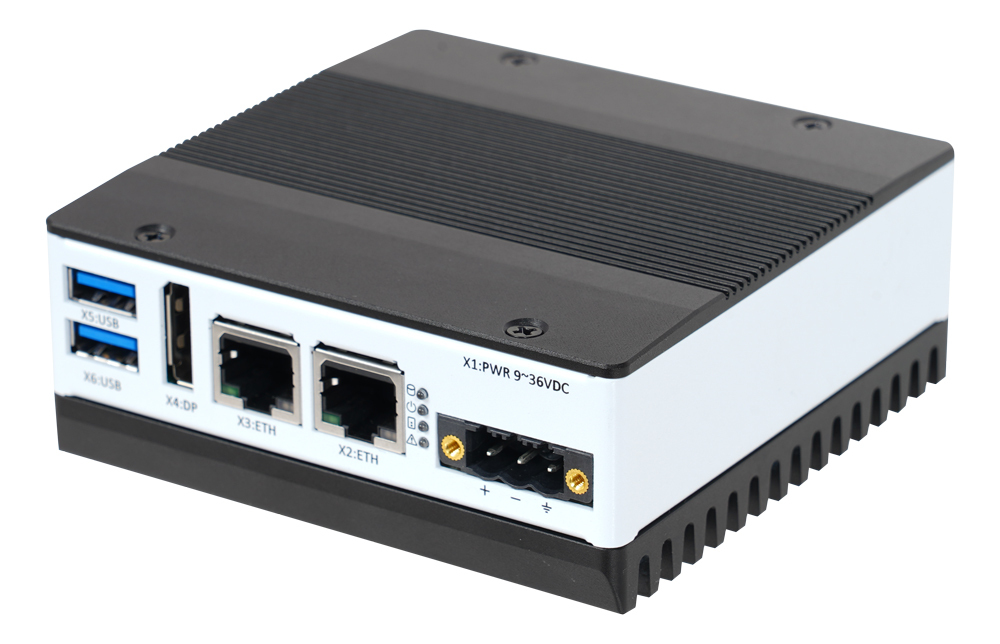

RSQ10 RSQ10

Compact Rugged System with Intel Atom® x6000E Series processor

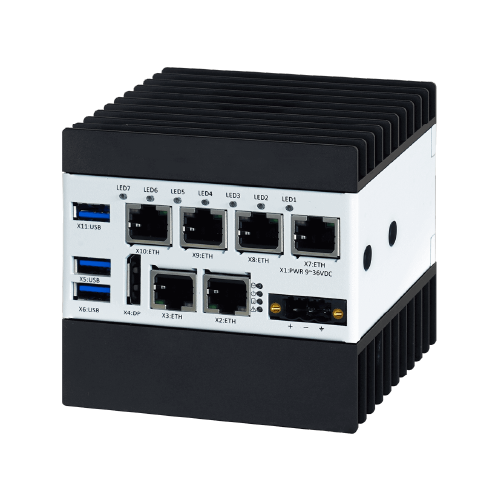

RSQ10-FG RSQ10-FG

Compact Rugged System with Intel Atom® x6000E Series processor, supporting 5G

KUBER-2000 Series

KUBER-2000 series is a palm-sized, flexible and ready-to-use industrial PC designed for a wide range of applications in the industrial 4.0 era. With less than 4 inches in length, this series provides scalable Intel Atom® processor E3900 series, Intel® Celeron® processor N3350, and Intel® Pentium® processor N4200 (formerly Apollo Lake) processors, supporting up to 4 cores. Its robust aluminum housing and standard industrial functionalities ensure durability and reliability. The state-of-the-art expansion design ensures that various I/O choices for diverse application requirements are fulfilled with minimal investment. Whether you need to perform data collection and transition, edge computing, or communication tasks in applications such as industrial automation, intralogistics or smart retail environments, KUBER-2000 series is proven to be your best choice.

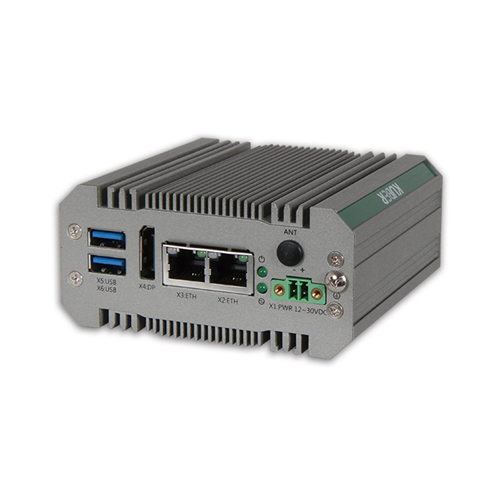

KUBER-2110 KUBER-2110

Ultra-Small form factor IPC powered by Intel Atom® E3900 Series Processor

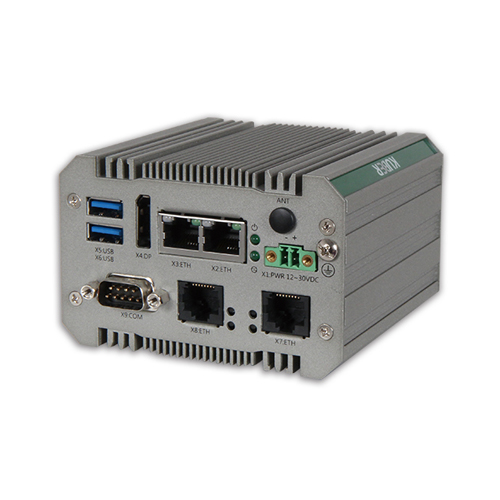

KUBER-212A KUBER-212A

Ultra-Small form factor IPC with isolated LANs and COM, designed for medical use

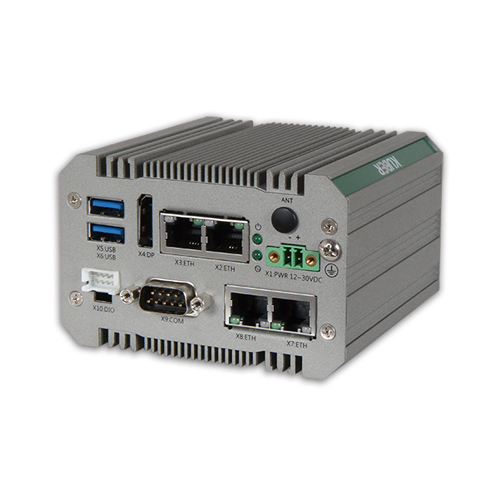

KUBER-212B KUBER-212B

Ultra-small form factor IPC with extended CANbus, LANs and GPIO, suitable for Automated Guided Vehicle (AGV) controller

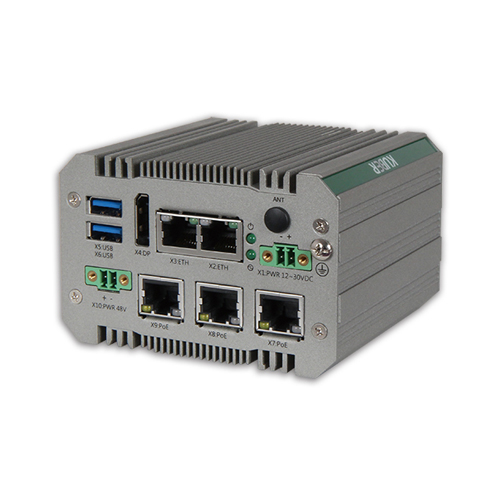

KUBER-212D KUBER-212D

Ultra-small form factor IPC designed as a PoE gateway compliant with IEEE 802.3af standard, applicable for varied PDs

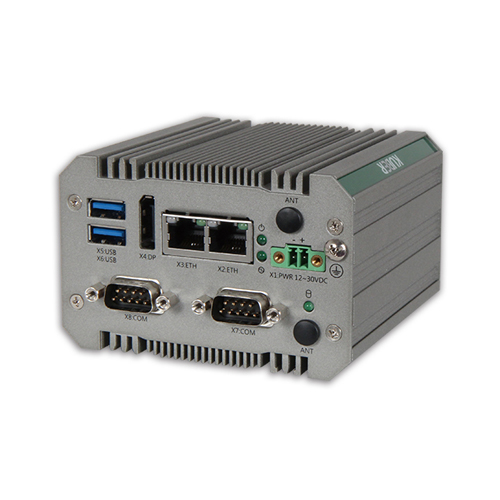

KUBER-212E KUBER-212E

Ultra-small form factor IPC designed as a soft PLC gateway for various industrial automation environment

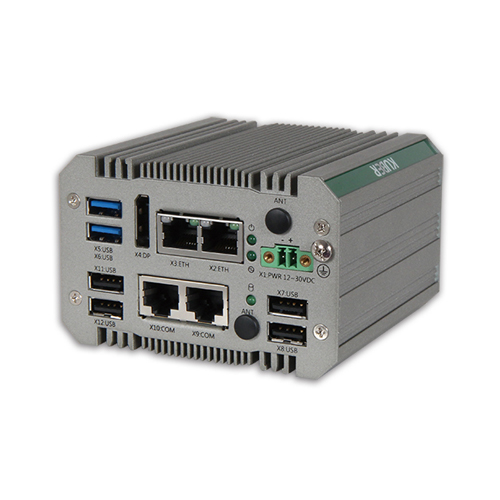

KUBER-212G KUBER-212G

Ultra-small form factor IPC designed as a compact IoT gateway with console ports, USB ports and M.2 and Mini-PCIe slot

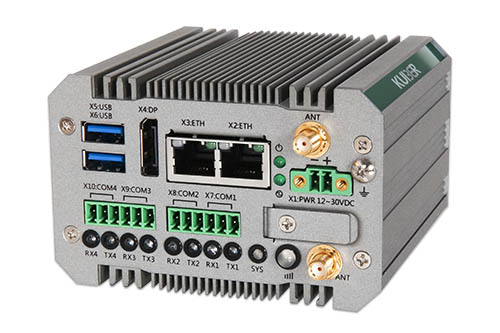

KUBER-212H KUBER-212H

Ultra-small form factor IPC designed as a compact industrial IoT gateway with multiple RS485 COM ports, USB ports, and M.2 and Mini-PCIe interfaces

LYNX-6K Series

Portwell's LYNX-6K Series is a palm-sized fan-less IPC adopting low power Intel® Celeron® N3350 processor. Certified with heavy industry EMC and EMI Class B, the ruggedized design provides high stability and reliability. LYNX series is suitable for industrial automation, smart factory, edge computing and IIoT gateway applications.

LYNX-6110 LYNX-6110

LYNX-6110 is a compact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor.

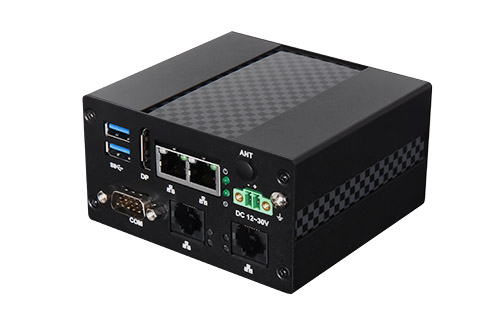

LYNX-612A LYNX-612A

LYNX-612A is a compact, ruggedized and fan-less industrial IoT gateway with low power Intel® Apollo Lake processor

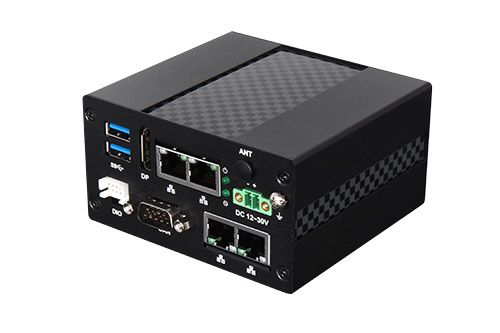

LYNX-612B LYNX-612B

LYNX-612B is a compact, ruggedized and fan-less industrial PC using low power Intel® Apollo Lake processor.

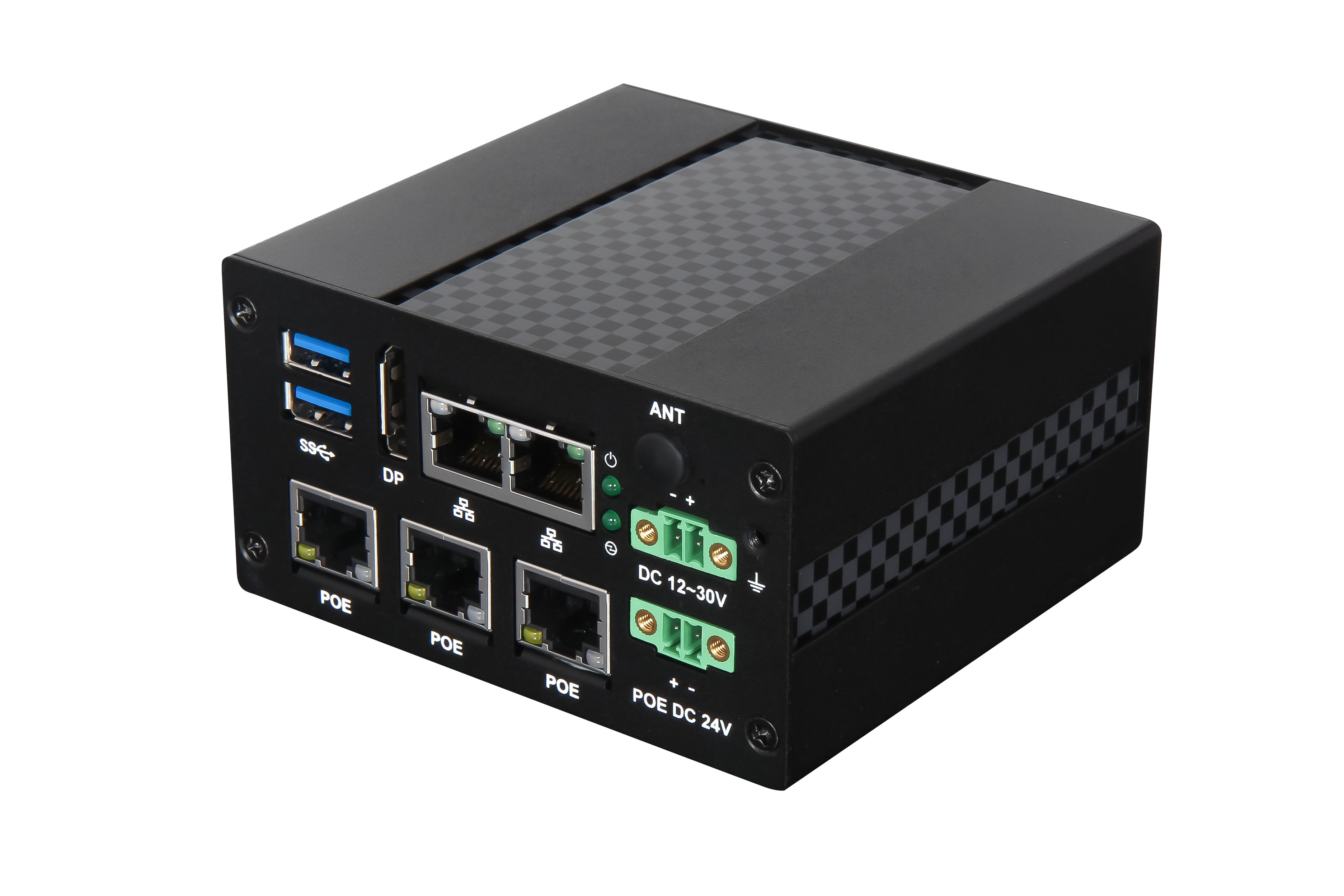

LYNX-612D LYNX-612D

Target as PoE gateway with 3 PoE LAN ports, LYNX-612D is a compact, fan-less and cable-less PC adopting low power Intel® Apollo Lake processor.

LYNX-612E LYNX-612E

LYNX-612E is a compact, fan-less and cable-less PC adopting low power Intel® Apollo Lake processor.

LYNX-612G LYNX-612G

LYNX-612G is a compact, fan-less and cable-less PC adopting low power Intel® Apollo Lake processor.

WEBS Series

Industrial-grade rugged embedded computer systems that are designed by precise thermal simulation and verification to make the system stable and user-friendly. These fanless embedded PCs have all-aluminum chassis design to provide effective heat dissipation. Built with the latest Intel® technologies, the WEBS systems feature not only superior performance but also low power consumption. They are environmentally-friendly and suitable for energy-critical applications.

WEBS-89I0 WEBS-89I0

Rugged Fanless Embedded System with Intel® Celeron® J6412 SoC based proprietary board

WEBS-3120 WEBS-3120

11th Gen Intel® Core™ Processors based Fan-less Embedded System with DDR4 up to 16GB, dual 2.5 Gigabit Ethernet, six USB and HDMI

WEBS-21J0 WEBS-21J0

Embedded Compact Fan-less System with Intel Atom® x7000E Series based NANO-ITX Board

WEBS-21I0 WEBS-21I0

Rugged Fan-less Embedded System with Intel Atom® x6000E Series SoC based NANO-ITX Board

WEBS-21G0 WEBS-21G0

Embedded Compact Fan-less System with 8th Gen Intel® Core™ i SoC based NANO-ITX Board

WEBS-21D0 WEBS-21D0

Fanless embedded system featuring Intel® Atom® processor E3900 product family in Nano-ITX form factor

WEBS-13D1 WEBS-13D1

Fanless embedded system featuring Intel Atom® processor E3900 product family with 3.5" form factor embedded system board

ANS Series

With many years of experience in networking and communication product development and familiarity with the market trends, ANS Series, the Advanced Network Solutions, is launched for SD-WAN applications with 5G, WiFi6 and IoT devices deployment. ANS Series is a compact system fulfill the demands of low latency, high computing, high bandwidth, more connectivity, PoE+ support, and IP Security. In addition to hardware design supporting more ports and PoE functions, we also provide software APIs and Web tools to bring the turnkey solution to our customers.

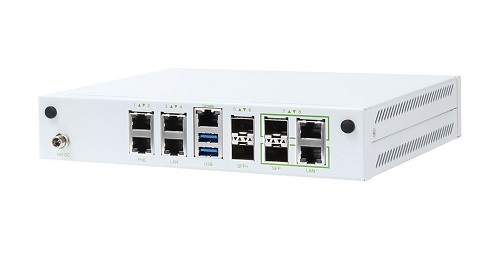

ANS-9A44F ANS-9A44F

Compact SD-WAN appliance with Intel Atom® C3758R (8C)/ C3558R (4C) Processor (Denverton)

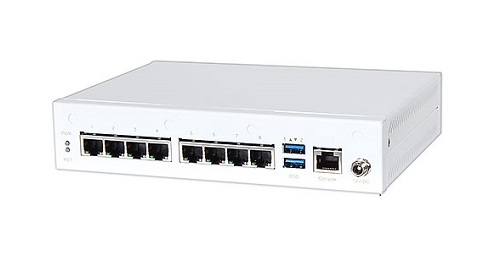

ANS-9142 ANS-9142

Compact SD-WAN appliance with Intel® Denverton C3436L(4C) / C3338R(2C) Processor

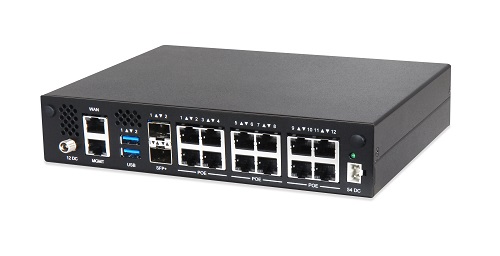

ANS-2141P ANS-2141P

Compact System with Intel® Apollo Lake E3900 series for SD-WAN solution

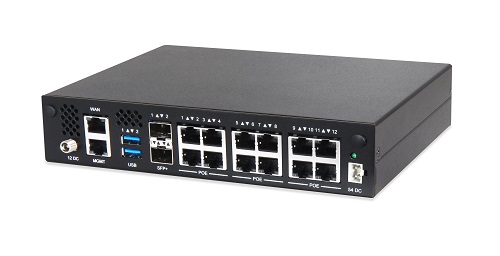

ANS-8A64P ANS-8A64P

Compact SD-WAN appliance with Intel® Denverton C3758(8C) / C3558(4C) Processor

NUC System

Based on 4x4-inch NUC board, these ultra-compact embedded computing systems featuring fan-less and rugged design with the latest Intel® technologies support, deliver significant power reduction, scalable performance and smaller platform footprint. They are suitable for space constrained IoT applications with low power consumption.

RICH-61E0 RICH-61E0

Embedded System with 7th Gen Intel® Core™ Mobile Processors based NUC platform for Medical or AIoT application

RICH-61D0 RICH-61D0

RICH-61D0 is designed with Dual/Quad-core Intel® Apollo Lake SoC (up to 10W) featuring dual-channel DDR3L memory up to 8GB, one Gigabit Ethernet port, M.2 expansion interface, and support for wide input voltage range from 12V to 19V.

MEDS-2003 MEDS-2003

7th Generation Intel® Core™ Mobile Processor based NUC size Medical Certified Embedded System
