| Specification | |
|---|---|
| Form Factor | microATX |
| CPU | Intel® Core™ Ultra Processors (codenamed Arrow Lake S) Up to 24 cores, 35W to 125W TDP |
| BIOS | AMI Aptio® V UEFI BIOS |
| IPMI | AST2600 BMC Firmware: OpenBMC |
| System Memory | Total 4 DIMMs (2DPC) (1DPC) 2x DDR5 6400MHz UDIMM, up to 96GB (2DPC) 4x DDR5 5600MHz UDIMM, up to 192GB W880 supports ECC memory |
| Expansion | PCIe slot: 1x PCIe Gen5 x16 1x PCIe Gen4 x4 |

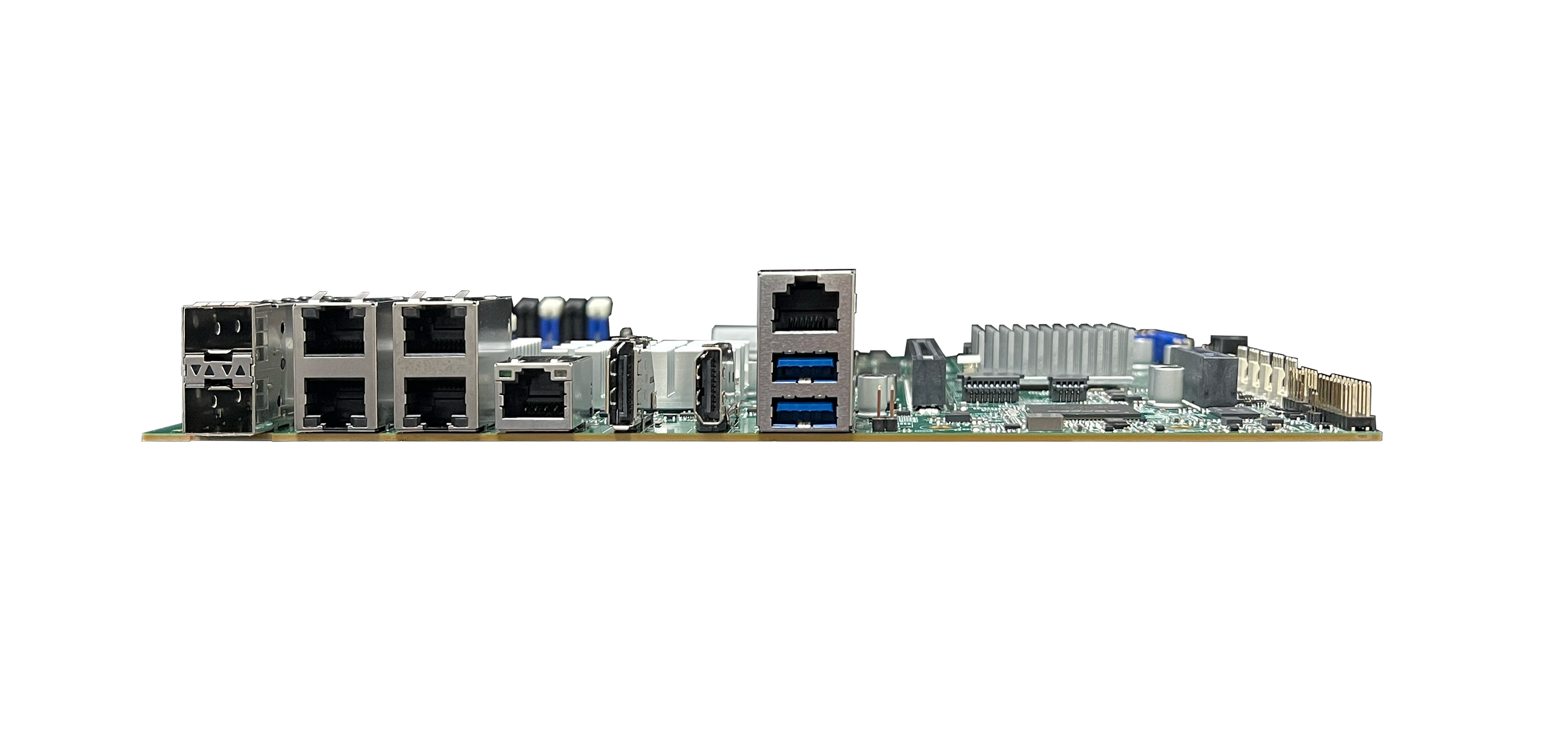

| Ethernet Ports | 4x 2.5GbE RJ45 via Intel® Ethernet Controller I226 2x 10GbE SFP+ via Intel® Ethernet Controller X710 1x GbE RJ45 IPMI |
| Storage | M.2: 1x M.2 Key M 2280 Gen5 x4 slot 1x M.2 Key M 2280 Gen4 x4 slot SATA: 4x SATAIII |
| Security | Optional TPM 2.0 |
| OS Support | Linux, Windows |
| Dimension | microATX 244mm (W) x 244mm (D) 9.6" (W) x 9.6" (D) |
| Serial Port | 1x RJ45 Console port |
| USB | 2x USB 3.2 Gen2 x1 ports, Type A 2x USB 3.2 Gen2 x1 headers onboard |
| Display | 1x HDMI 2.0 connector 1x DP connector |
| System Panel | Power switch, reset switch, power LED, storage LED (9-pin header) |
| Operating Environment | 0°C to 40°C (32°F to 104°F) |
| Storage Environment | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Certification | CE/FCC Compliance |
| Ordering Guide | |
|---|---|

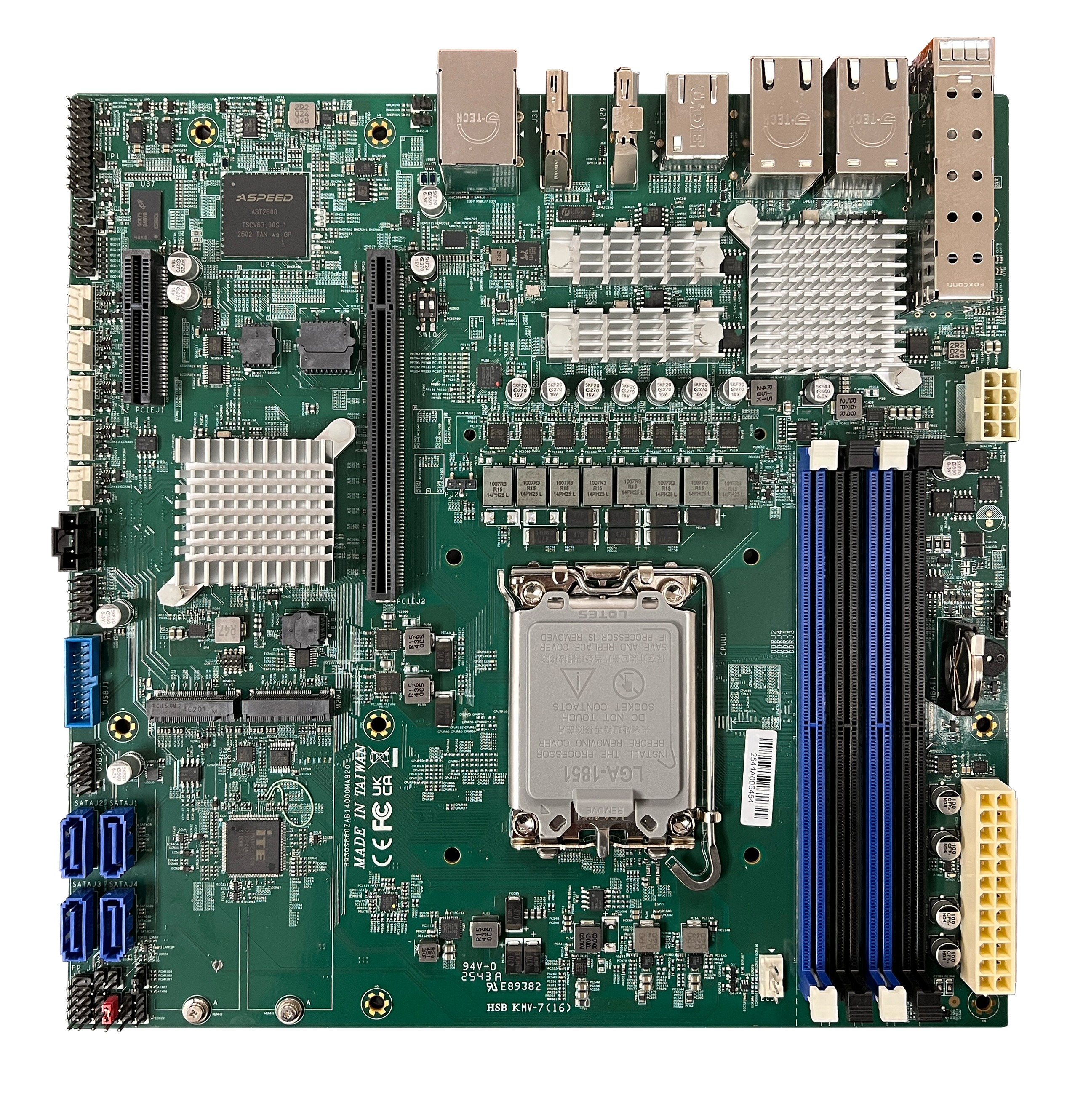

| In-progress | PNSB-4000MA, Intel® Core™ Ultra Series 2 processor, Intel W880 Chipset |
