COM Express is a computer-on-module specification defined by PICMG, including COM Express Type 7, which is based on a widely used COM Express Type 6 pinout. COM Express Type 7 modules are ideal for a large range of communication type applications because it strips audio and video signals of type 6, in exchange for the rich I/O capabilities including 32 lanes of PCIe and four 10Gb Ethernet, as well as the support for low power applications, or high computing capabilities.

Portwell offers a complete range of COM Express Type 7 modules and flexible carrier options, as well as technical and customization support no matter the customer applications.

Modules

High Performance

High performing SoC solution, ideal for server and datacenter requiring maximum performance and customizable I/O available on COM Express module.

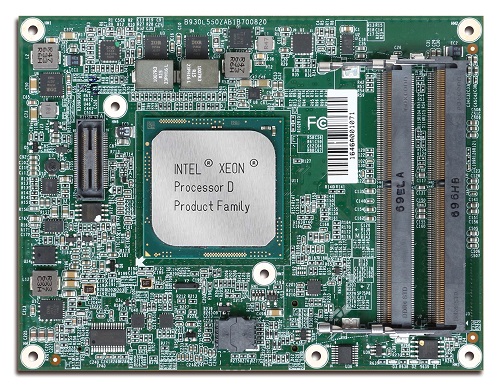

PCOM-B703G

COM Express® Type 7 Extended 155x110
Intel Xeon processor D2100 (Skylake-D)

Intel® Xeon® processor D-2100 NT series
DIMM DDR4 2667 ECC up to128GB
Support 4x USB3.0/2.0, 4x SATA III
PCIe Gen 3 expansion up to 32 PCIe lanes
Support High speed Ethernet (4x XGMII/KR)

Learn More

Mainstream

Flexible module solution ideal for compact, high bandwidth and scalable performance network or IoT applications, customizable to suit various carrier designs and application needs.

PCOM-B704G
COM Express® Type 7 Basic 125x95mm
Intel® Xeon® D Processor

COM Express® Type 7 Basic 125x95
Intel® Xeon® D Processor
Memory up to 64GB SO-DIMM, ECC/Non-ECC, up to 2933MT/s
4x 10GbE and 1x 1GbE network
Support 32x PCIe lanes, with 16x Gen 4 and 16x Gen 3

Coming Soon

PCOM-B700G

COM Express® Type 7 Basic 125x95mm
Intel® Xeon® processor 5. D-1500/1600(N) series (Broadwell/Hewitt Lake-DE/NS)

Intel® Xeon® processor D-1500/1600(N) series (Broadwell/Hewitt Lake-DE/NS)
DDR4 ECC/non-ECC SDRAM on three SO-DIMM sockets, up to 48GB
2x 10GbE and one GbE interfaces
4x USB 3.0/2.0, 2x SATA III, 8x PCIe x1 Gen 2, 1x PCIe x4 Gen 3, 1x PCIe x16 Gen 3
Support a wide -40°C to 85°C industrial temperature range (selected SKUs)

Learn More

Energy Saving

Great for compact, low power but high bandwidth networking applications like SD-WAN, micro server, branch and gateway, as well as storage and IoT solutions.

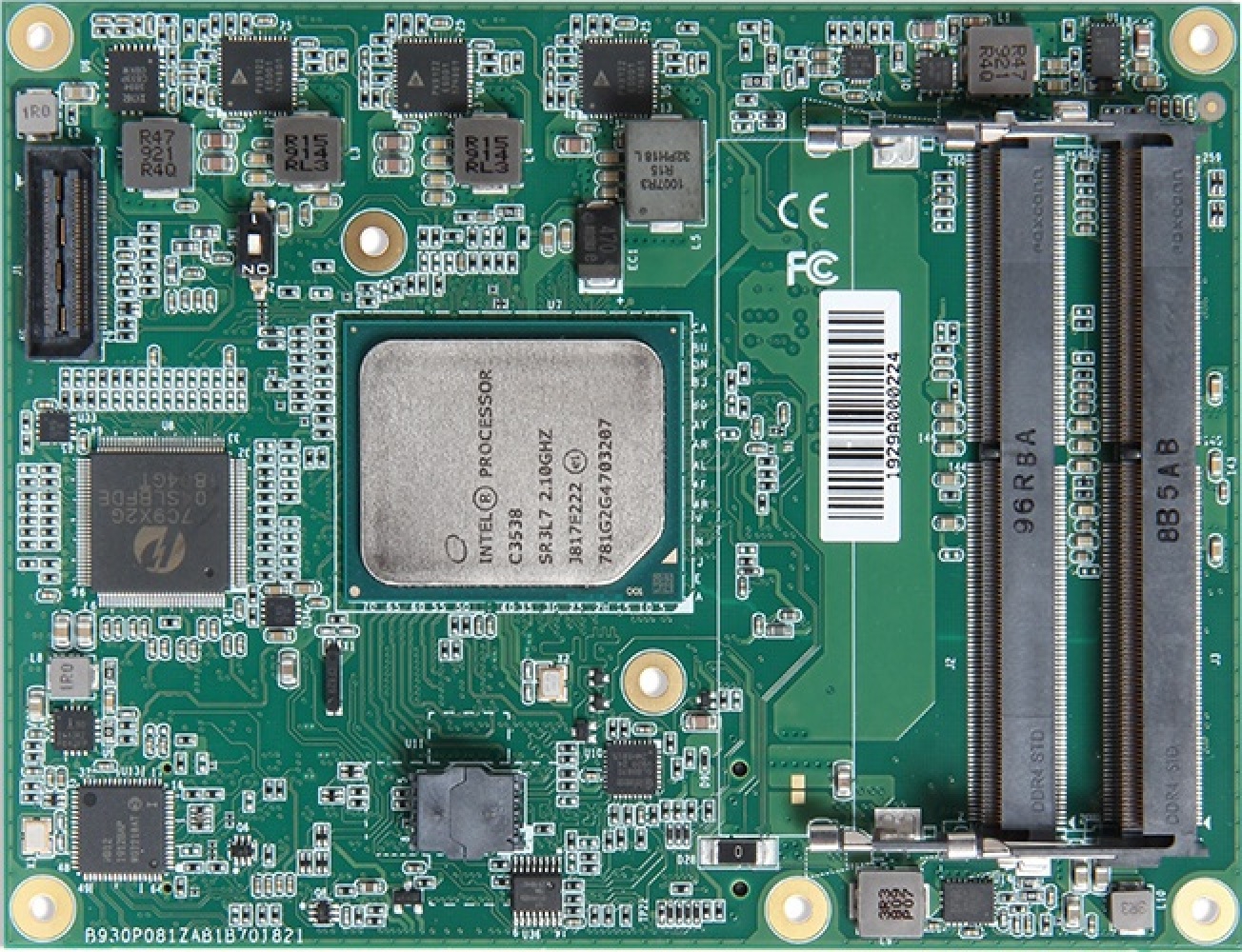

PCOM-B702G
COM Express® Type 7 Compact 95x95mm
Intel Atom® processor C3000 Series (Denverton/Refresh)

Intel Atom® processor C3000 Series
DDR4 2133 MT/s ECC up to 64GB
Up to 12 PCIe Lanes (based on CPU/HSIO arrangement)
High-speed Ethernet, 4x 10GbE and 1x GbE interfaces
4x USB 2.0, 4x USB 3.2 Gen 1 (based on CPU/HSIO arrangement), 2x SATA III
Wide-Temp (-40°C to 85°C) Support

Learn More

PCOM-B701GT

COM Express® Type 7 Basic 125x95mm
Intel Atom® processor C3000 Series (Denverton/Refresh)

Intel Atom® processor C3000 series
DDR4-2133/2400 ECC/Non-ECC SDRAM on Three SO-DIMM Sockets, up to 96GB
4x 10GbE KR
4x USB 3.2 Gen 2, 4x USB 2.0, 2x SATA III, 1x PCIe Gen 3 x8, 2x PCIe Gen 3 x2, 3x PCIe Gen 2 x1
Wide-Temp (-40°C to 85°C) on Selected SKUs

Learn More

Carrier Boards

Flexible carrier options provide quick design prototyping of all Portwell COMe type 7 modules as well as design reference for customized carrier boards.

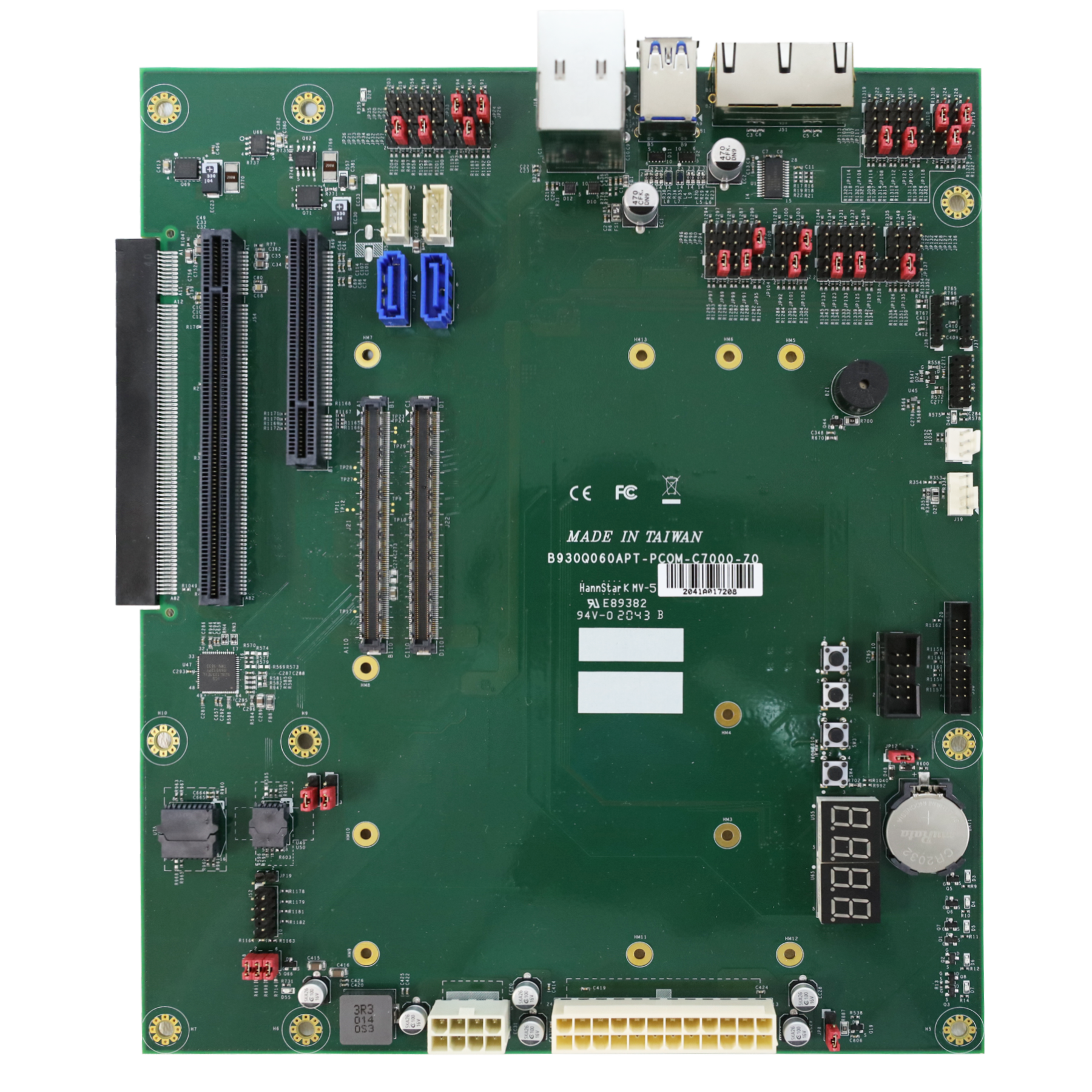

PCOM-C7000

ATX Form Factor Evaluation Carrier Board for COM Express Revision 3.0 Type VII Module

A total of 32x PCIe Lanes, in combinations of:
a) 2x PCIe Gen 4 x16, or 1x PCIe Gen 4 x16 + 2x PCIe Gen 4 x8 (via PCOM-C7000-P1)
b) 1x PCIe Gen 4 x16 + 4x PCIe Gen 4 x4 (via PCOM-C7000-P2)
1x GbE on-board, 4x 10GbE SFP+ via 2 types of network extension cards:
a) For native SFI signals: PCOM-C7000-N1
b) For KR signals (with PHY Inphi CS4227): PCOM-C7000-N2
