| Specification | |
|---|---|
| Processor | 10th Generation Intel® Core™ and Xeon® W processor (Formerly Comet Lake-S), support up to 95W TDP |
| Form Factor | 1U |
| Chipset | Intel® W480E PCH |
| Memory | 4x DDR4 2666/2933MHz ECC/Non-ECC UDIMM, up to 128GB |
| Network | 8x GbE RJ-45, 2x 10G SFP+ |
| Bypass | 2 pairs on base board plus optional NIC modules (up to 10 pairs) |
| Storage | 2x 2.5” SATA/SAS HDDs, 1 x M.2 Socket |
| Expansion | SKU1: 2x PCIe Gen3 x8 for Portwell proprietary NIC module SKU2: 1x PCIe Gen3 x8 NIC + 1x iSAM for 2 HDD/SSD |
| Serial Port | 1x RJ-45 system console port, 1x micro-USB port |
| USB | 2x USB 3.0 ports, 1 x USB 3.0 at the back (optional) |
| Display Output | HDMI and VGA ports via IPMI module (Optional) |
| LED | PSU / LAN / Power / HDD / Ethernet |
| OS Support | Linux Kernel/Windows |
| Power Supply | 300W Redundant PSU |
| Security | 1x pin header for TPM module (Optional) |
| Mounting | Rackmount |
| Dimension | 438mm x 507.7mm x 44mm; 17.24'(W) x 19.98'(D) x 1.73'(H) |
| Operating Environment | Temperature: 0 to 40°C (32 to 104°F) RH: 20 to 90% |
| Storage Environment | Temperature: -10 to 70°C (14 to 158°F) RH: 5 to 95% @ 55°C |
| Certification | CE/FCC/UL |
| Ordering Guide | |
|---|---|

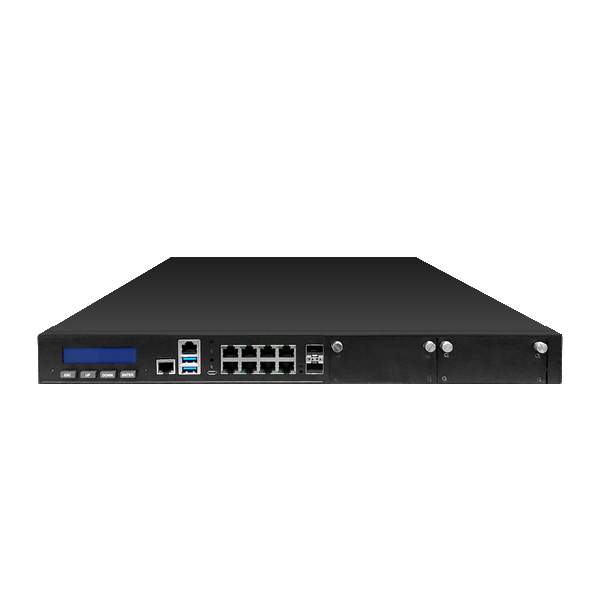

| CAR-4060 | 1U Network Appliance based on 10th Intel® Core™ and Xeon W processor (Formerly Comet Lake-S) |
