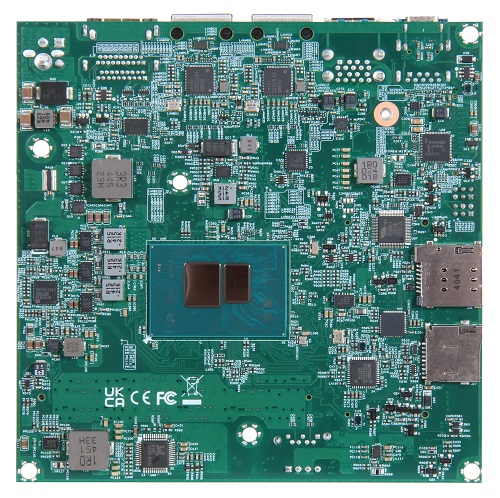

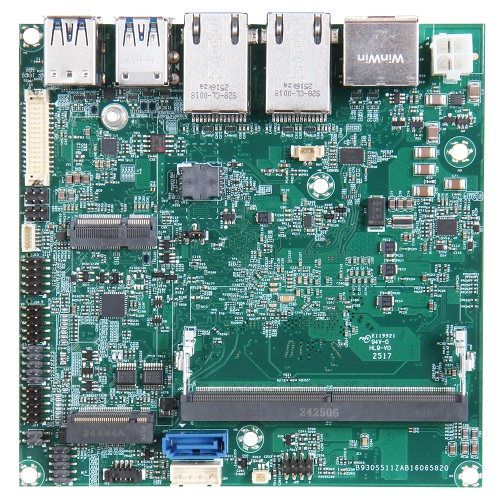

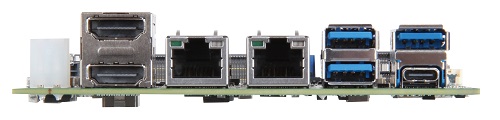

NANO-6065 is a Nano-ITX embedded board powered by Intel® Core™ Processor N-series, Intel® Processor N-series (formerly Twin Lake), and Intel Atom® x7000RE Series Processors (formerly Amston Lake). Designed for low power consumption and high efficiency, the platform supports a range of advanced Intel® technologies. These include Intel® Gaussian & Neural Accelerator (GNA) for AI workloads, Intel® Image Processing Unit (IPU) for enhanced visual input, and Intel® Smart Sound Technology (SST) for high-quality audio processing—among other features that enable intelligent edge computing. With its compact form factor and rich I/O, the NANO-6065 is an ideal foundation for building robust IoT solutions across medical, retail, and digital signage applications.
| Specification | |
|---|---|
| Processor | - Intel® Core™ 3 Processor N355 - Intel® Processor N150 - Intel Atom® x7835RE Processor |
| BIOS | AMI UEFI BIOS |
| Memory | - 1x DDR5 4800MT/s SO-DIMM up to 16GB - Support In-Band ECC |
| Storage Devices | - 1x SATA III - 1x Micro SD socket |
| Watchdog Timer | Programmable Watchdog Timer, time out period from 0.5 sec to 254.5 secs |
| Hardware Monitoring | System Monitor (Voltage, Fan speed, Temperature) |
| Expansion Interface | - 1x M.2 E Key 2230 (USB/ PCIe) - 1x M.2 B Key 3052/2280 (USB/ PCIe/ SATA) |
| Audio | - HDA controller integrated in Intel® SoC - Realtek ALC897 HDA codec - On board pin header (line-in, line-out, mic-in) |
| Ethernet | - 2x Intel® 2.5GbE Controller - 2x RJ45 connectors on rear I/O |
| Serial Port | - 2x RS-232/422/485 on board pin header (selectable via BIOS) |
| USB | - 3x USB 3.2 Gen2 Type A on rear I/O - 1x USB 3.2 Gen2 Type C on rear I/O (Supports DP 1.4a display output / USB device mode) |
| Other | - TPM 2.0 on board - 8x GPIO |
| Graphic Controller | Intel® Graphics with up to 32 Eus |
| Display Interface | - HDMI: 2x HDMI port on rear I/O (HDMI 2.0b, 4096x2160 @ 60Hz) - DP: Type C port on rear I/O (DP 1.4, 4096x2304 @ 60Hz) - *LVDS: 1x LVDS on board connector (*Optional, available upon request with MOQ requirement) |
| Dimension | 120mm(L) x 120mm(W), 4.72"(L) x 4.72"(W) |
| Power Supply | DC 12-24V input |
| Environment | - Operating temperature: 0°C~60°C (SKU:N355 & N150) - Operating temperature: -40°C~85°C (SKU:X7835RE) - Storage Temperature: -40°C~85°C - Relative Humidity: 5~95%, non-condensing |
| MTBF | TBD |
| Ordering Guide | |
|---|---|
| AB1-3T71 | (R).NANO-6065-N355. Nano-ITX ESB. Intel Twin Lake SoC.w/ DDR5 SO-DIMM/ dual HDMI/ dual 2.5 GbE LAN/ micro SD/ SIM card/ 12-24V/ TYPE C |
| AB1-3T83 | (R).NANO-6065-N150. Nano-ITX ESB. Intel Twin Lake SoC.w/ DDR5 SO-DIMM/ dual HDMI/ dual 2.5 GbE LAN/ micro SD/ SIM card/ 12-24V/ TYPE C |
| AB1-3T84 | (R).NANO-6065-X7835RE. Nano-ITX ESB. Intel Amston Lake SoC.w/ DDR5 SO-DIMM/ dual HDMI/ dual 2.5 GbE LAN/ micro SD/ SIM card/ 12-24V/ TYPE C
|
