*Status: Preliminary

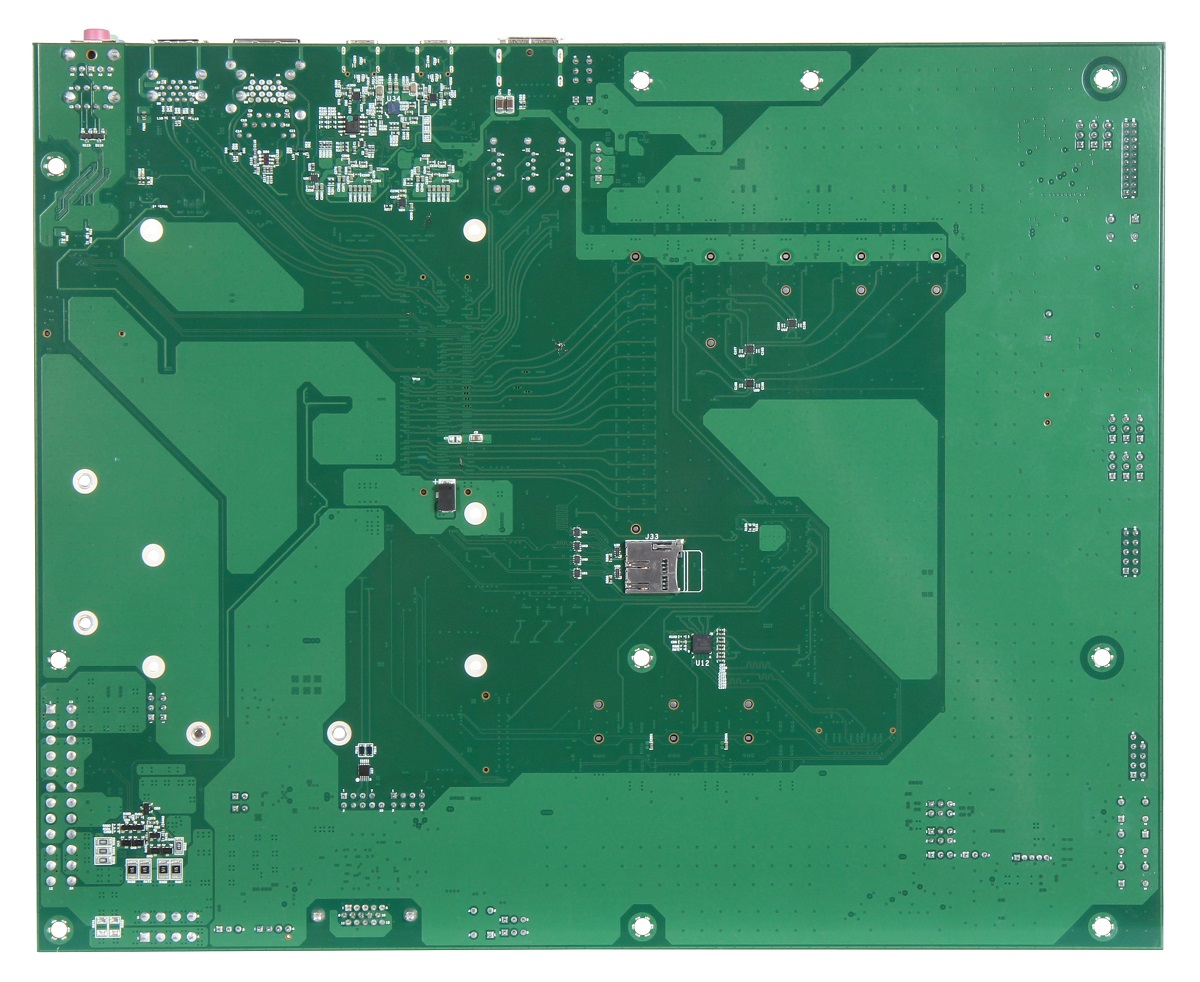

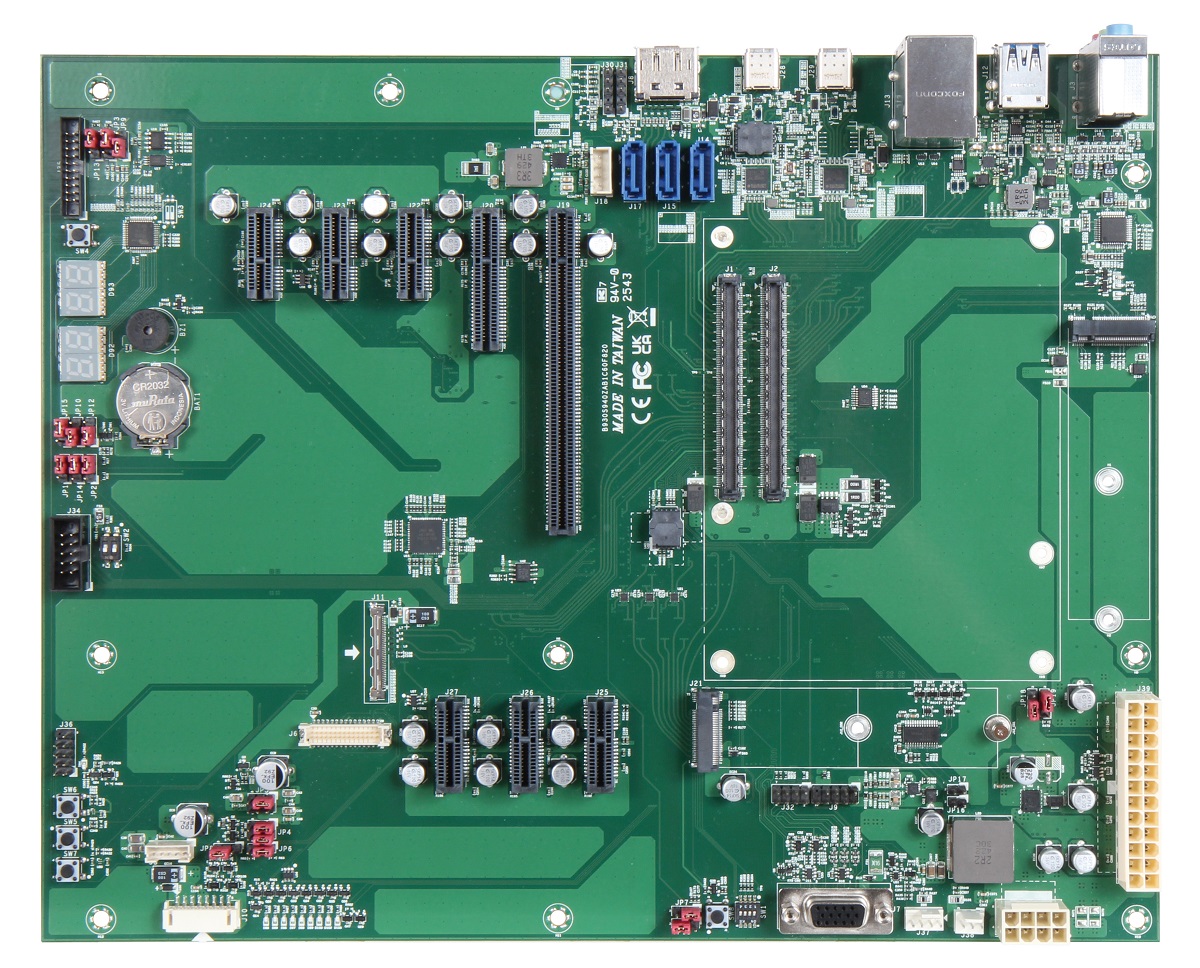

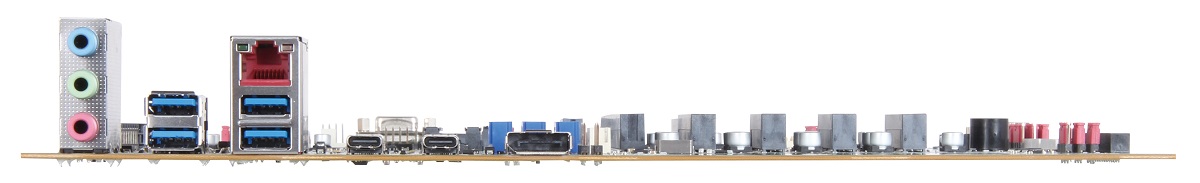

| Specification | |
|---|---|
| Form Factor | ATX size (305mm x 244mm) |
| Supported Module | COM Express Type 6 , Basic & Compact sizes |
| General Function | - RTC battery - BIOS SPI socket - Power BTN / Reset BTN / Rapid shutdown BTN / Sleep BTN / LID BTN - One VGA port - Audio Jack |
| SATA | 3x SATA III |
| USB | 2x USB Type-C, 4x USB Type-A |
| Ethernet | 1x 2.5GbE RJ45 |
| PCI Express | - 1x PCIe 4.0 x16 - 1x PCIe 4.0 x4 - 6x PCIe 4.0 x1 - 1x M.2 Key M |
| Serial I/O | - GPIO - I2C - SMBus - UART |
| Other Expansion I/O | 1x System fan connector (4-pin PWM, smart fan control) (Temperature and voltage monitoring) |
| Dimension | ATX 305mm x 244mm (12" x 9.6") |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Storage Humidity | 0% to 95%, non-condensing |
| Operating Humidity | 0% to 95%, non-condensing |
| Ordering Guide | |
|---|---|
| AB1-3U26Z | PCOM-B60F ATX Form Factor Evaluation Carrier Board for COM Express Type VI Module |
