| Specification | |
|---|---|
| M/B | WUX-x7213RE, WUX-x7433RE, WUX-x7835RE |
| CPU | Intel Atom® x7213RE, Intel Atom® x7433RE, Intel Atom® x7835RE Processor |
| BIOS | AMI UEFI BIOS |
| System Memory | DDR4 3200 MT/s Non-ECC SO-DIMM up to 32GB |
| Storage | - 1x M.2 Key M 2242 - Onboard 128GB eMMC 5.0 (up to 256GB) |
| H/W Status Monitor | System monitor (Voltage and Temperature) |
| Expansion | - 1x M.2 Key E 2230 for wireless module - 1x M.2 Key M 2242 for storage |
| Serial Port | 1x RS-232/422/485 on RJ45 |
| Display | - 1x HDMI® Port - 1x DP Port |
| USB | 4x USB 3.2 Gen 2 ports (10Gbps) |
| Audio | Audio jack with Line-out |
| Ethernet | - 2x Intel® I226IT 2.5GbE controller - 2x RJ45 connectors with two LED indicators |
| Power Input | DC 12V ~19V |
| Operation Temperature | -40°C ~ 60°C |
| Storage Temperature | -40°C ~ 85°C |
| Relative Humidity | 40°C, 95%RH non-condensing |
| Operating Vibration | 5Grms/10-500Hz, IEC 60068-2-6 |
| Operating Shock | 50G, 11 msec, IEC 60068-2-27 |
| Dimension | 130(W) x 112.5(D) x 55.8 (H) mm |
| Weight | 1.5 Kg |
| Mounting | Wall mount |
| Ordering Guide | |
|---|---|

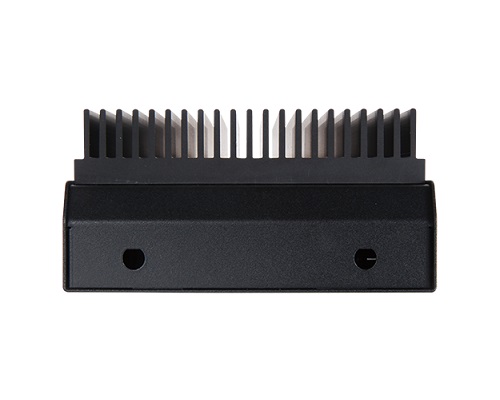

| In Progress | (R).ATO.RICH-61F0. NUC System. Intel Atom® Processors x7000RE Series |
