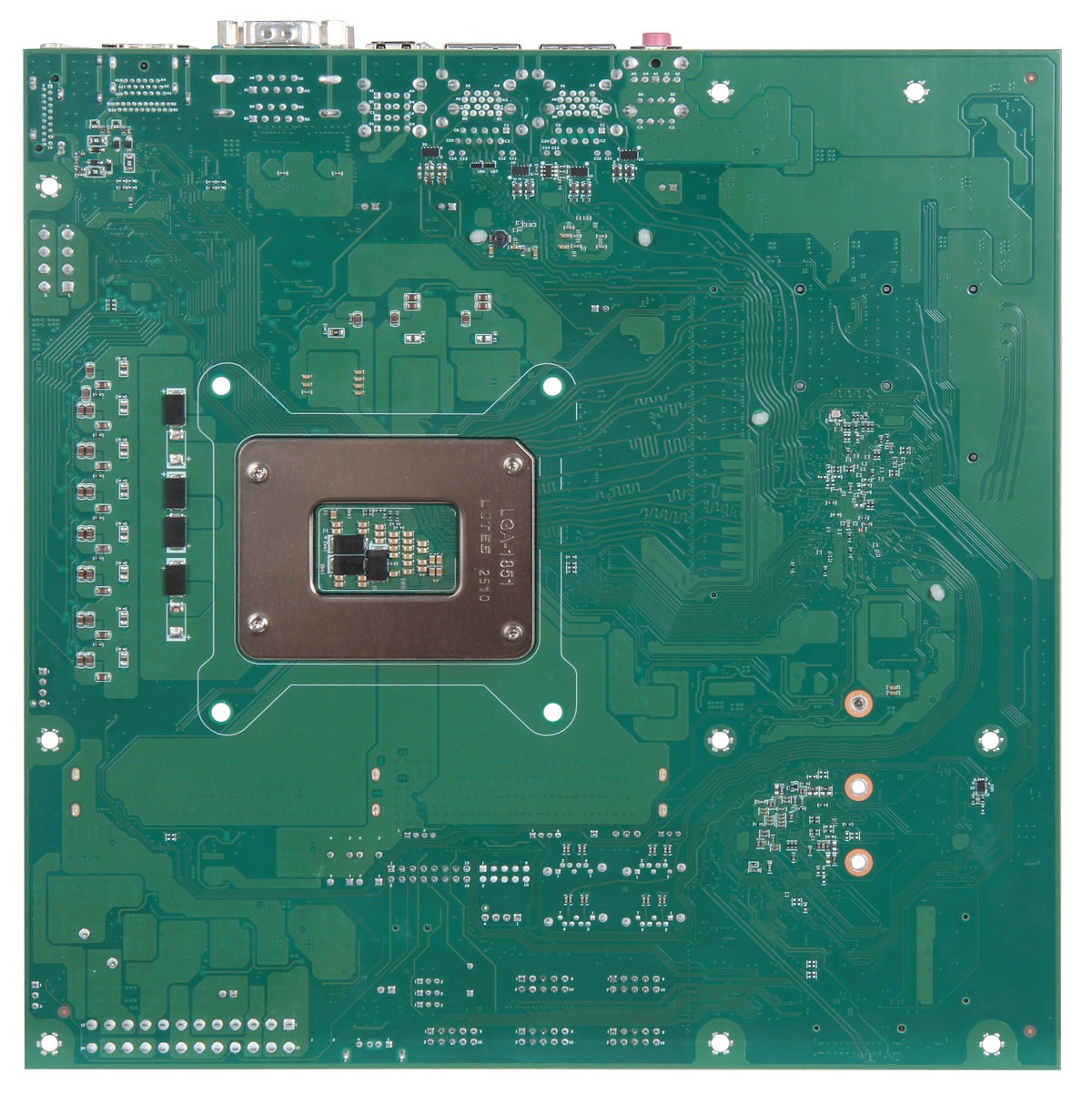

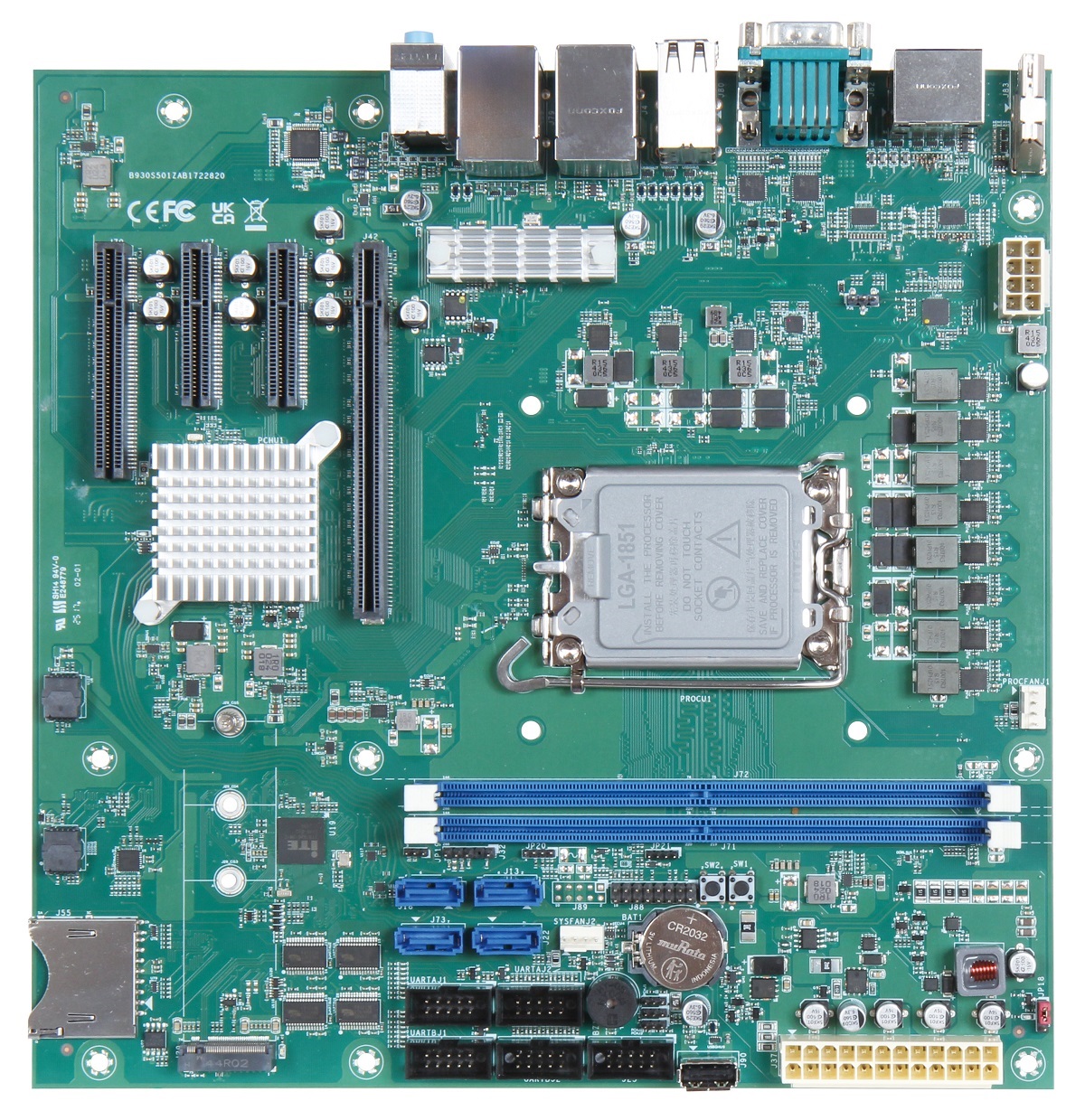

| Specification | |
|---|---|
| Processor | - Intel® Core™ Ultra Processors (Series 2), LGA 1851 socket, 65W TDP - Intel® Core™ Ultra Processors (Series 2), LGA 1851 socket, 125W TDP |
| Chipset | Intel® H810 |
| BIOS | AMI uEFI BIOS |
| Memory | Supports up to 96GB DDR5 6400 MT/s on 2 non-ECC UDIMM |
| Storage Devices | - 4 x SATA ports support RAID 0, 1, 5, 10 - 1 x SD |
| Watchdog Timer | Programmable, time out period from 1 sec to 255 secs |
| Graphic Controller | Intel® Xe LPG Graphics |
| Audio | 1 x Audio Jack Line-in , Line-out , Mic-in w/ Realtek ALC897 |
| Ethernet | - 1 x Intel® I210AT with GbE LAN 10/100/1000 Mbps (Supports OOB w/ OS recovery, BIOS recovery, Power On/Off, Reset, SOL) - 1 x Intel® I219LM with GbE LAN 10/100/1000 Mbps |
| Serial Port | 2 x COM ports support RS-232/422/485 |

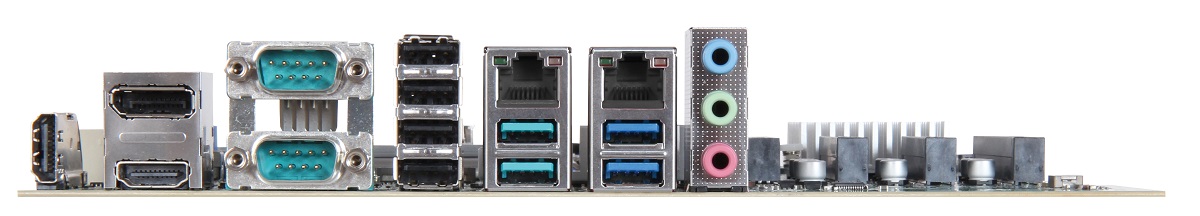

| USB | - 2 x USB 3.2 Gen2 Type A on bracket - 2 x USB 3.2 Gen1 Type A on bracket - 4 x USB 2.0 Type A on bracket |
| Display | - 2 x HDMI® 2.0 3840 x 2160@60Hz - 1 x DP 1.4 3840 x 2160@60Hz |
| PCIe | - 1 x PCIe Gen5 x16 - 1 x PCIe Gen4 x8 (x4 signal) Open Slot - 2 x PCIe Gen4 x4 (x1 signal) Open Slot |
| Serial Port | 4 x pin headers support RS-232 |
| USB | 1 x USB 2.0 Vertical Type A |
| M.2 | 1 x M.2 M Key 2242/2260/2280 supports SATA, PCIe x1 |
| Security | TPM 2.0 (onboard IC ) |
| GPIO | 1 x 8-bit Digital I/Os |
| Others | 1 x SMBus |
| Dimension | 244 x 244 mm (9.61" x 9.61") |
| Power Supply | AT mode/ ATX mode |
| Operating Temperature | 0 ~ 60 °C (32 ~ 140 °F) |
| Storage Temperature | -20 ~ 80°C(-4 ~ 176 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC |
| OS | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04, RedHat Enterprise |
| Portwell Special Feature | PET, OOB API |
| Ordering Guide | |
|---|---|
| AB1-3T78 | RUBY-D722G2A-125W. Micro-ATX.IMB.LGA1851. H810 PCH. DDR5/DP/Dual HDMI®/Dual GbE/COM/Audio/USB. 125W |
| AB1-3U98 | RUBY-D722G2A-65W. Micro-ATX.IMB.LGA1851. H810 PCH. DDR5/DP/Dual HDMI®/Dual GbE/COM/Audio/USB. 65W |
