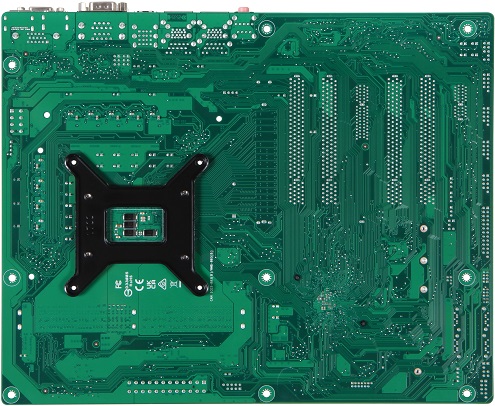

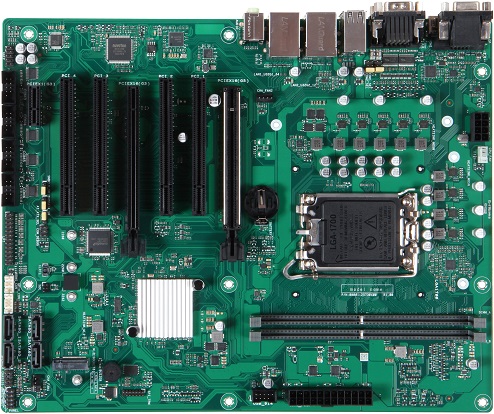

RUBY-D813-H610E-D5

14th/13th/12th Gen Intel® Core™ processors based industrial ATX motherboard supporting DDR5 SDRAM up to 96GB, dual GbE LAN, dual PCIe x16 (one x4 mode), multiple display DP/VGA/HDMI, USB 3.2 Gen2, M.2

×

1

2

3

❮ ❯

Features

14th/13th/12th Gen Intel® Core™ processor series (formerly Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S)
Dual DDR5 5600MHz Non-ECC UDIMM up to 96GB
Dual LAN with 1x Intel® I219V and 1x Intel® I210AT
6x COM ports, 4x USB 3.2 ports , 4x SATA III ports and Audio
Two PCIe x16 (1x Gen 5, 1x Gen 3 x4 signal), one PCIe Gen 3 x1 , four PCI, one M.2 (Key M) size 2242/2260/2280
Multiple displays by DP, VGA and HDMI

Documents & Downloads

RUBY-D813-H610E-D5 is a versatile ATX industrial motherboard designed for high-performance edge computing and automation. Powered by 12th, 13th, and 14th Gen Intel® Core™ processors (LGA1700) and supporting up to 96GB of fast DDR5 memory, it delivers robust computing performance for demanding industrial applications. Featuring dual Gigabit Ethernet, rich I/O including six COM ports, multiple USB 3.2 interfaces, and four SATA III ports, it ensures seamless connectivity and integration. Expansion flexibility is built in with PCIe Gen 5 x16, PCIe Gen 3 slots, legacy PCI, and M.2 support for storage or add-on modules. With TPM security, multi-display outputs (HDMI, DP, VGA), and broad OS support—including Windows IoT and popular Linux distributions—RUBY-D813-H610E-D5 is ideal for factory automation, network security, medical systems, and transportation—empowering smarter, connected solutions for the future.

Specification
Processor	12th/13th/14th Generation Intel® Core™ i3/i5/i7/i9 Processors, LGA 1700 socket
Chipset	Intel® H610E
BIOS	AMI uEFI BIOS
Memory	Supports up to 96GB DDR5 5600 MT/s on 2 non-ECC UDIMM
Storage	4 x SATA ports
Watchdog Timer	Programmable, timeout period from 1 second to 255 seconds
Graphic Controller	Intel® UHD Graphics
Audio	1 x Audio Jack Line-out w/ Realtek ALC897 1 x Audio Jack Mic-in w/ Realtek ALC897
Ethernet	1 x Intel I219V with GbE LAN 10/100/1000 Mbps 1 x Intel I210AT with GbE LAN 10/100/1000 Mbps
Serial Port	2 x COM ports support RS-232/422/485
USB	2 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 Type-A
Display	1 x HDMI® 2.0 1 x DP 1.2 1 x VGA
PCIe	1 x PCIe Gen5 x16 1 x PCIe Gen3 x16 ( x4 signal ) 1 x PCIe Gen3 x1
PCI	4 x PCI
Serial Port	4 x RS-232 via pin header
USB	1 x USB 2.0 via pin header
M.2	1 x M.2 Key M (2242/2260/2280), supports PCIe x1/SATA
Security	TPM SPI header
GPIO	1 x 8-bit Digital I/Os
Dimension	305 x 244 mm (12.00" x 9.61")
Power Supply	AT mode/ ATX mode
Processor	12th/13th/14th Generation Intel® Core™ i3/i5/i7/i9 Processors, LGA 1700 socket
Chipset	Intel® H610E
BIOS	AMI uEFI BIOS
Memory	Supports up to 96GB DDR5 5600 MT/s on 2 non-ECC UDIMM
Storage	4 x SATA ports
Watchdog Timer	Programmable, timeout period from 1 second to 255 seconds
Graphic Controller	Intel® UHD Graphics
Audio	1 x Audio Jack Line-out w/ Realtek ALC897 1 x Audio Jack Mic-in w/ Realtek ALC897
Ethernet	1 x Intel I219V with GbE LAN 10/100/1000 Mbps 1 x Intel I210AT with GbE LAN 10/100/1000 Mbps
Serial Port	2 x COM ports support RS-232/422/485
USB	2 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 Type-A
Display	1 x HDMI® 2.0 1 x DP 1.2 1 x VGA
PCIe	1 x PCIe Gen5 x16 1 x PCIe Gen3 x16 ( x4 signal ) 1 x PCIe Gen3 x1
PCI	4 x PCI
Serial Port	4 x RS-232 via pin header
USB	1 x USB 2.0 via pin header
M.2	1 x M.2 Key M (2242/2260/2280), supports PCIe x1/SATA
Security	TPM SPI header
GPIO	1 x 8-bit Digital I/Os
Dimension	305 x 244 mm (12.00" x 9.61")
Power Supply	AT mode/ ATX mode
Operating Temperature	0 ~ 60 °C (32.0 ~ 140.0 °F)
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity	10% to 95%, non-condensing
Certification	CE/FCC
OS	Windows 11 IoT Enterprise 2024 LTSC, Windows 10 IoT Enterprise 2021 LTSC, Ubuntu 24.04, RedHat Enterprise, Fedora Workstation, OpenSUSE
Portwell Special Feature	PET

Ordering Guide
AB1-3U27	RUBY-D813-H610E-D5. ATX IMB. LGA1700. H610E. Intel® Core™ Processors. w/ DDR5/VGA/DP/HDMI/Dual GbE/COM/Audio/USB *Please refer to product datasheet for additional ordering information.
