WMP-109

10.1” Medical Panel PC Featuring Intel® Processor N97, Fanless Design, and Optional PoE Function



Features

  • Intel® Processor N97 (formerly Alder Lake-N) (quad-core, up to 3.6GHz)
  • IEC 60601-1-2 (V4.1) compliance
  • 10.1” display (1280 x 800) with PCAP multi-touch
  • IP65 front protection for dust and water resistance
  • Fanless design for silent operation
  • Compact size for limited-space installation
  • TPM 2.0 onboard for enhanced security
  • Supports DDR5 memory up to 16GB
  • M.2 NVMe SSD storage (128GB)
  • Dual Gigabit LAN and multiple USB ports
  • Optional PoE function for embedded applications
  • Optional webcam or RFID customization
Quote & Request
Datasheet
Request Evaluation Sample

Documents & Downloads

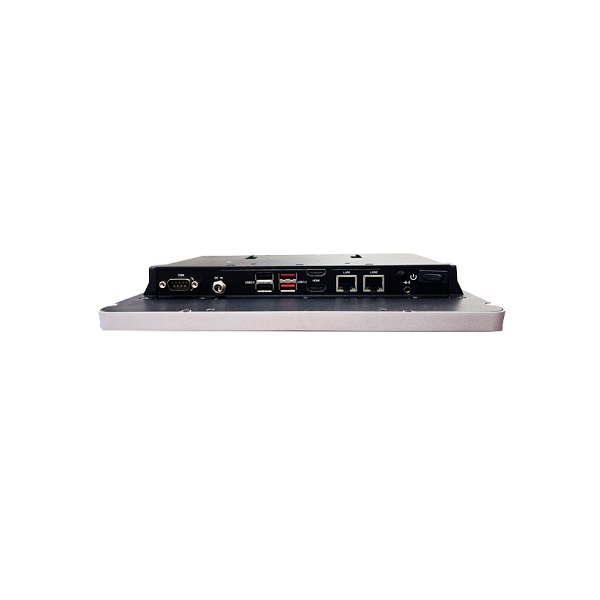

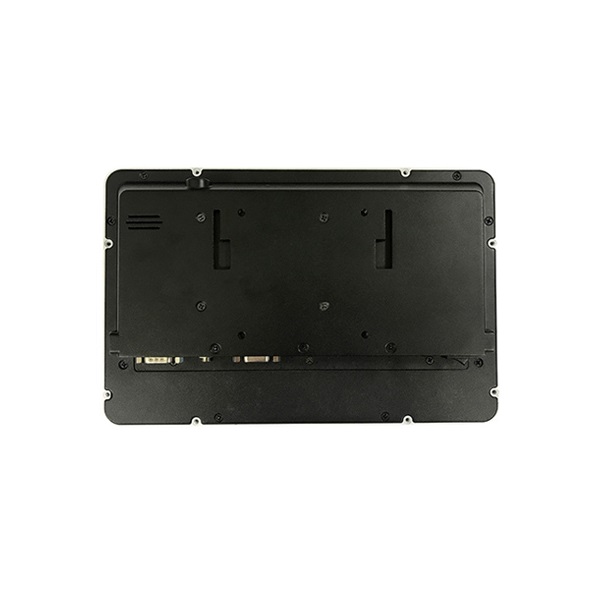

The WMP-109 is a compact 10.1-inch medical-grade panel PC designed for space-constrained environments and HMI applications. Powered by Intel® Processor N97, it offers fanless operation, robust performance, and compliance with EMC standards. Its IP65 front protection and optional PoE functionality make it ideal for clinical and embedded use.



Ordering Guide
WMP-109 10.1” Medical-grade panel PC based on Intel® Processor N97

*Please refer to product datasheet for additional ordering information.
