| Specification | |
|---|---|
| Processor | Intel® Core™ 3 Processor N355 (Twin Lake), Intel® Processor N150 (Twin Lake), Intel Atom® x7433RE Processor (Amston Lake) |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 16GB DDR5 4800 MT/s |
| Storage | 1x SATA port shared with M.2 |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Audio | 1x Audio Jack Line-in , Line-out , Mic-in w/ Realtek ALC897 |
| Ethernet | - 1 GbE LAN w/ Intel WGI210AT - 2x 2.5 GbE LAN w/ Intel WGI226LM - Amston Lake uses i226IT/I210IT, Twin Lake uses i226LM/i210AT |

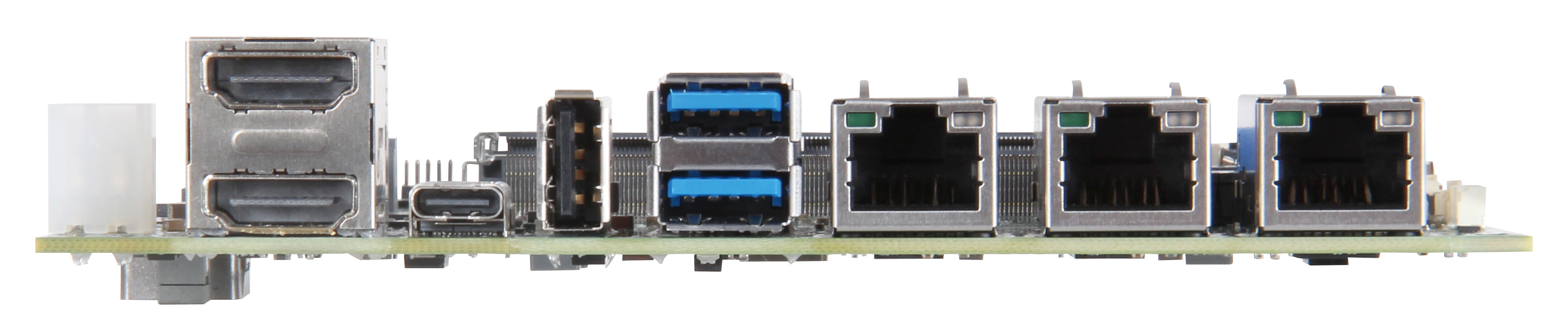

| USB | - 2x USB 3.0 Type A via rear I/O - 1x USB 2.0 Type A via real I/O - 1X Type-C with DP Alt Mode via rear I/O - 2x USB 2.0 via pin header |
| Display | - 2x HDMI 2.0 via rear I/O - 1x LVDS via pin header |
| Serial Port | - 4x COM ports support RS-232 - 2x COM ports support RS-232/422/485 |
| M.2 | - M.2 E Key (2230) support USB, PCIe x1 - 1x M.2 M Key (2280) support SATA, PCIe x1 - 1x M.2 B Key (3042/3052) support USB, PCIe x1, 4G/5G |
| SIM | Nano SIM slot |
| Security | TPM 2.0 (BOM option) |
| Dimension | 146 x 102 mm (5.75" x 4.02") |
| Power Supply | DC Jack 9~36V |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) -40 ~ 85°C (Amston Lake SKU) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Ordering Guide | |
|---|---|
| AB1-3T85 | PEB-2775-N150. 3.5”. Intel® Twin Lake SoC. w/ DDR5 SO-DIMM/ dual HDMI®/ dual 2.5GbE LAN and single 1GbE LAN/ M.2/ SIM card/ 9-36V |
| AB1-3T77 | PEB-2775-N355. 3.5". Intel® Twin Lake SoC. w/ DDR5 SO-DIMM/ dual HDMI®/ dual 2.5GbE LAN and single 1GbE LAN/ M.2/ SIM card/ 9-36V |
| AB1-3T86 | PEB-2775-x7433RE. 3.5”. Intel® Amston Lake SoC. w/ DDR5 SO-DIMM/ dual HDMI®/ dual 2.5GbE LAN and single 1GbE LAN/ M.2/ SIM card/ 9-36V |
