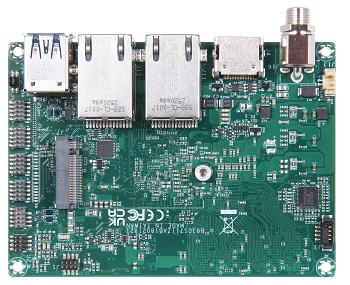

| Specification | |
|---|---|
| Processor | - Intel® Processor N150 - Intel Atom® x7433RE Processor - Intel Atom® x7211RE Processor |
| BIOS | AMI uEFI BIOS |
| Memory | 1x DDR5 4800MT/s SO-DIMM up to 16GB |
| Storage Devices | 1x M.2 M Key 2242 (PCIe/SATA) |
| Watchdog Timer | Programmable Watchdog Timer, time out period from 0.5 secs to 254.5 secs |
| Hardware Monitoring | System Monitor (Voltage, Fan speed, Temperature) |
| Expansion Interface | 1x M.2 E Key 2230 |
| Audio | - HDA controller integrated in Intel® SoC - Realtek ALC897 HDA codec - Support line-in, line-out, mic-in on board pin header |
| Ethernet | - 2x Intel® 1GbE Controller (I210) - 2x RJ45 connectors on rear I/O |
| Serial Port | 2x RS-232/422/485 with on board pin header |
| USB | - 2x USB 3.2 Gen 2 on rear I/O - 2x USB 2.0 on board pin header |
| Others | - TPM 2.0 onboard - 8x GPIO - 1x I2C & 1x SMBus - 1x Smart Fan |
| Graphic Controller | Intel® Graphics up to 24 EUs |
| Display Interface | - LVDS: 1x LVDS on board connector (Dual channel, 24bit, 1920x1200 @60Hz) - HDMI: 1x HDMI port on rear I/O (HDMI 2.0, 3840x2160 @60Hz) |
| Dimension | 100mm(L) x 72mm(W) |
| Power Supply | DC in 12-24V input |
| Environment | - Operating temperature: 0°C~60°C (SKU: N150) - Operating temperature: -40°C~85°C (SKU: x7433RE / x7211RE) - Storage Temperature: -40°C~85°C - Relative Humidity: 5~95%, non-condensing |
| Certification | CE, FCC |
| Ordering Guide | |
|---|---|
| AB1-3U28 | PICO-8020-N150. Pico-ITX ESB. Intel® Processor N150 (Twin Lake). w/DDR5/HDMI/GbE/TPM/COM/USB/Audio |
| AB1-3T73 | PICO-8020-X7433RE. Pico-ITX ESB. Intel Atom® x7433RE (Amston Lake). w/DDR5/HDMI/GbE/TPM/COM/USB/Audio |
| AB1-3U31 | PICO-8020-X7211RE. Pico-ITX ESB. Intel Atom® x7211RE (Amston Lake). w/DDR5/HDMI/GbE/TPM/COM/USB/Audio |
