| Specification | |
|---|---|
| Processor | Intel® Processor N150 Intel Atom® x7433RE Processor Intel Atom® x7211RE Processor |
| BIOS | AMI uEFI BIOS |
| Memory | Supports up to 16GB LPDDR5 4800 MT/s onboard |
| Watchdog Timer | Programmable, time out period from 1 sec to 255 secs |
| Graphic Controller | Intel® Graphics |
| Rear - Ethernet | 2x Intel I210AT with GbE LAN 10/100/1000 Mbps |
| Rear - USB | 2x USB 3.2 Gen2 Type A |
| Rear - Display | 1x HDMI® 1.4 3840 x 2160@30Hz |
| Audio | 1x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC897 |
| Serial Port | 2x Pin Header support RS-232 |
| USB | 2x USB 2.0 Pin Header |
| M.2 | 1x M.2 2242 Key M support SATA, PCIe x1 |
| Security | TPM 2.0 (onboard IC) |
| GPIO | 1x 8-bit Digital I/O |
| Dimension | 100 x 72 mm (3.9" x 2.8") |
| Power Supply | DC Jack 12V |
| Operating Temperature | 0°C~60°C (32°F~140 °F) (CPU SKU: N150) -40°C~ 85°C (-40°F~185 °F) (CPU SKU: x7433RE ) -40°C~ 85°C (-40°F~185 °F) (CPU SKU: x7211RE ) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC UKCA |
| OS | Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04 |
| Portwell Special Feature | Portwell Engineering Toolkits (PET) |
| Ordering Guide | |
|---|---|
| PICO-8021-N150 | Pico-ITX ESB. Intel® Processor N150 (Twin Lake). w/LPDDR5/HDMI/GbE/TPM/COM/USB/Audio |
| PICO-8021-X7433RE | Pico-ITX ESB. Intel Atom® x7433RE (Amston Lake). w/LPDDR5/HDMI/GbE/TPM/COM/USB/Audio |

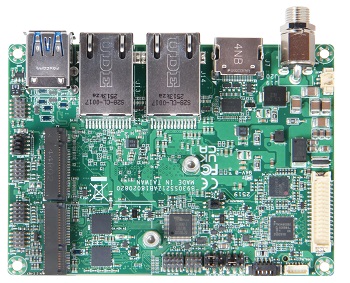

| PICO-8020-X7211RE | Pico-ITX ESB. Intel Atom® x7211RE (Amston Lake). w/LPDDR5/HDMI/GbE/TPM/COM/USB/Audio |
