Why Choose the Portwell PNC-ON4S-G10?
✔ OCP Inspired™: PNC-ON4S-G10 has been recognized with the OCP Inspired™ designation, adhering to the OCP Tenets of Impact, Efficiency, Scale, Openness, and Sustainability.
✔ High Port Density: Optimize your connectivity with multiple port configurations, perfect for next-generation networks.
✔ Energy Efficiency & Performance: Powered by Intel® Ethernet controller, the PNC-ON4S-G10 OCP NIC 3.0 network adapter delivers high performance with energy efficiency, ensuring optimal load balancing and seamless interoperability.
✔ Flexibility & Scalability: Built upon OCP NIC 3.0 open standards preventing vendor lock-in.
[Blog] Why Portwell’s PNC Series Stands Out in the OCP NIC 3.0 Landscape: Choosing the Right Network Card for Modern Deployments
| Specification | |
|---|---|
| Form Factor | OCP NIC 3.0 SFF |
| LAN Controller | Intel® XL710-BM1 |

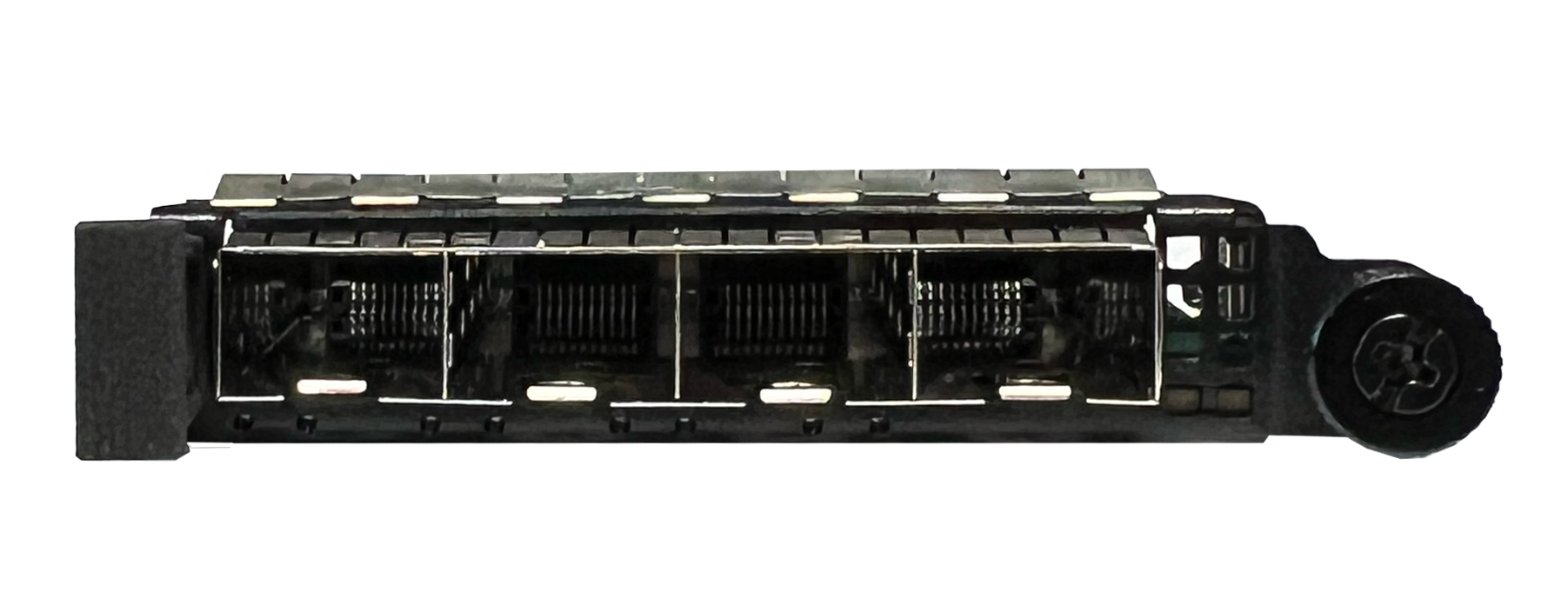

| Ethernet Port | 4x 10GbE SFP+ ports |
| Connector Type | OCP NIC 3.0 4C+ Primary Connector |
| Host Interface | PCIe Gen3 x8 |
| Bypass | N/A |
| Dimension | 76 x 115 x 22.6 mm (WxDxH) 2.99" x 4.53" x 0.89" (WxDxH) |
| Operating Environment | Temperature: 0°C to 40°C Humidity: 5% to 95% non-condensing |
| Storage Environment | Temperature: -20°C to 70°C Humidity: 5% - 95% non-condensing |
| Certification | CE/FCC |
| Ordering Guide | |
|---|---|
| 530-24-0030 | PNC-ON4S-G10. OCP NIC 3.0 kit. 4x 10G SFP+. Tall bracket |
| 530-24-0031 | PNC-ON4S-G10. OCP NIC 3.0 kit. 4x 10G SFP+. SFF bracket |
