| Specification | |
|---|---|
| Processor | Intel® Xeon® 6 processors (codenamed Sierra Forest and Granite Rapids) Intel® Xeon® 6700 series processors with E-cores Intel® Xeon® 6700 series processors with P-cores |
| Core Logic | - |
| Memory | Total Slots: 32x DDR5 DIMM slots, up to 6400/5200 MHz (1DPC/2DPC)/8000 MHz (1DPC, MCR) Capacity: 8-channel per CPU, 16 DIMM per CPU Memory Type: Maximum up to 4TB Memory Size: DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots: Up to 10 PCI-E slots Slot Type: 6 x PCI-E Gen5 x8 link or 3 x PCI-E Gen5 x16 link (FHFL) 2 x PCI-E Gen5 x16 link (FHHL) 2 x OCP 3.0 Maximum support 3 doublewide GPU (RS720-E12-RS8G & RS720-E12-RS24U/G) |
| Disk Controller | SATA Controller: 2 x M.2 connector (PCI-E Gen2 x2 link) Optional kits: PIKE II 3008-8i/3108-8i Broadcom HBA CARD 9500-16I Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i Broadcom MegaRAID 9670W-24i Broadcom MegaRAID 9670W-16i SAS Controller Optional kits: PIKE II 3008-8i/3108-8i Broadcom HBA CARD 9500-16I Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i Broadcom MegaRAID 9670W-24i Broadcom MegaRAID 9670W-16i |

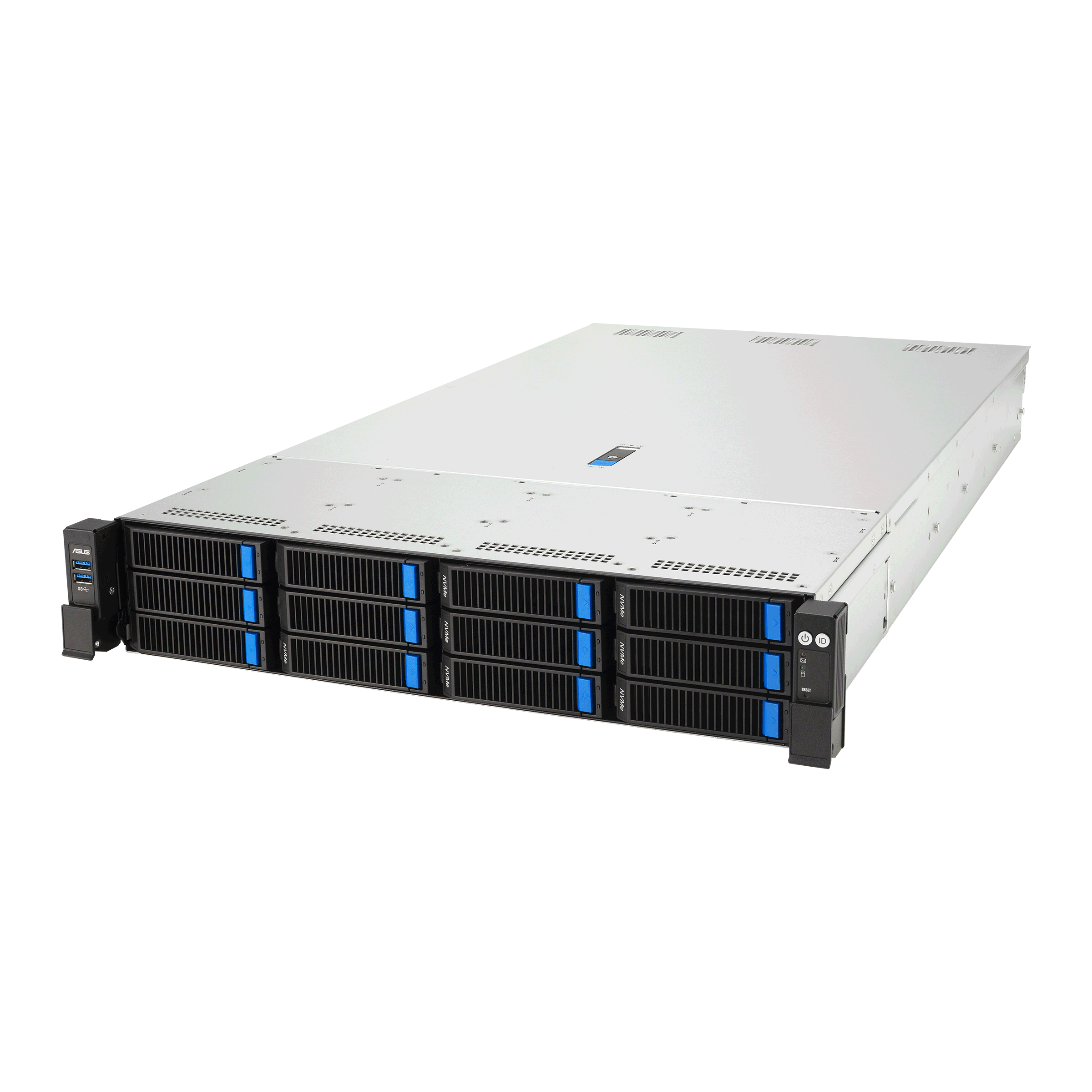

| Storage Bays | I = internal A or S will be hot-swappable RS720-E12-RS8G 8 x 2.5” hot-swap drive bays Support 8 x NVMe/SATA*/SAS* RS720-E12-RS12U 12 x 3.5” hot-swap drive bays Support 12 x NVMe/SATA*/SAS* RS720-E12-RS24U/G 24 x 2.5” hot-swap drive bays Support 24 x NVMe/SATA*/SAS* *HBA/ RAID card is required to support SAS or SATA hard drive |
| Networking | LAN: 1 x Management Port |
| Graphic | VGA: Aspeed AST2600 64MB |
| Front I/O Ports | 2 x USB 3.2 Gen1 ports |

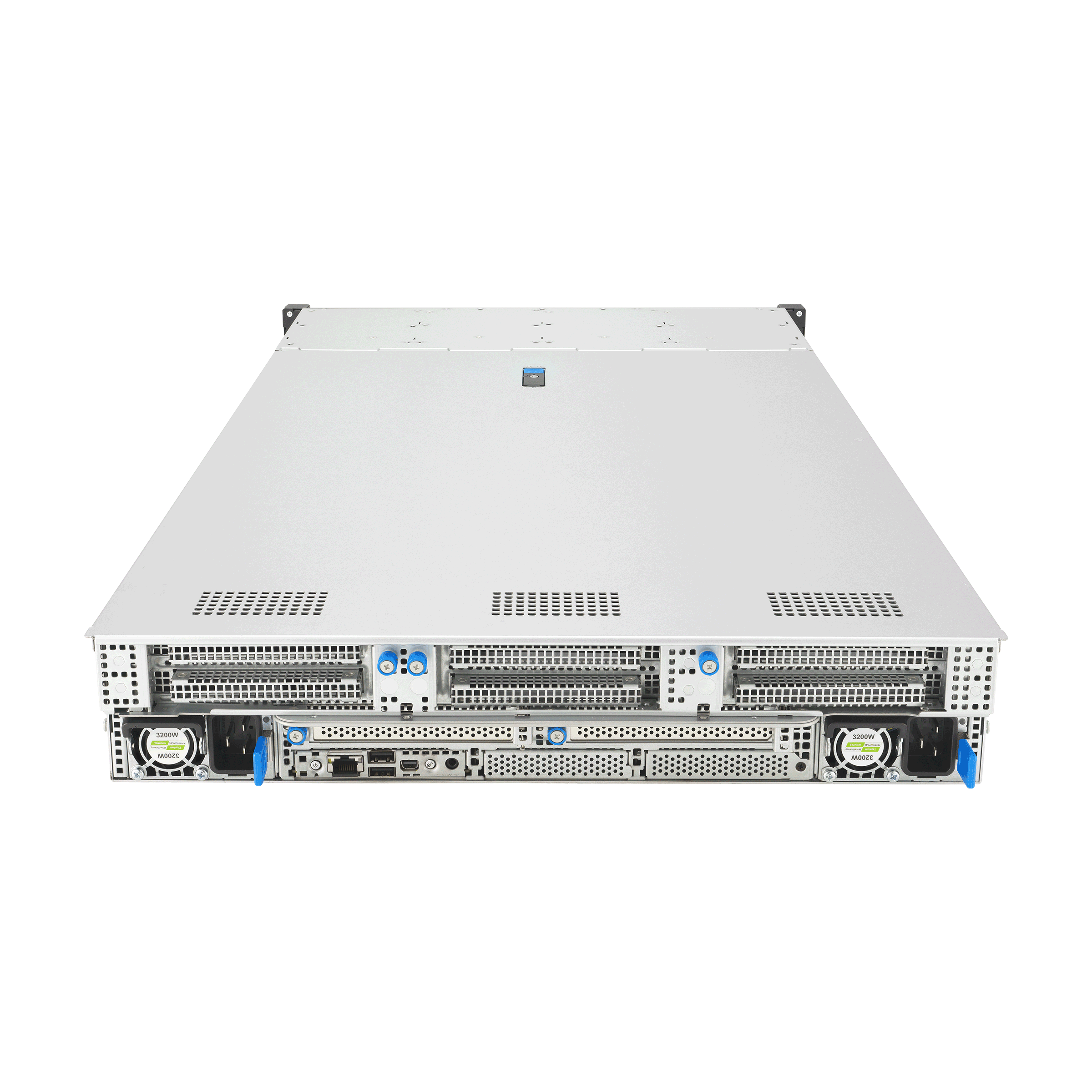

| Rear I/O Ports | 2 x USB 3.2 Gen1 ports 1 x Mini-DP port 1 x RJ-45 Mgmt. LAN port 1 x Type C port |
| Switch/LED | Rear Switch/LED: 1 x Power switch 1 x Location switch/LED 1 x Q-Code/Port 80 LED Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x Message LED, LAN 1-4 LED (on NIC module)** **The number of LAN LEDs available depends on the LAN |
| OS Support | Windows Server, RedHat® Enterprise Linux, SuSE® Linux Enterprise Server, CentOS, Ubuntu, VMware |
| Management Solution | Out of Band Remote Management: On-Board ASM12-iKVM for KVM-over-IP |
| Dimension | 2U, 449 (W) x 88 (H) x 830 (D) mm 17.68 (W) x 3.5 (H) x 32.7 (D) inches |
| Net Weight Kg | 18.195 |
| Gross Weight Kg | 28.855 |
| Power Supply | 1+1 Redundant 80 PLUS 3200W/2700W Titanium PSU |
| Environment | Operating temperature: 10℃ ~ 35℃ Non-operating temperature: -40℃ ~ 70℃ Non-operating humidity: 20% ~ 90% (Non condensing) |
| Ordering Guide | |
|---|---|
| In-progress | Scalable, High Performance 2U Server based on Intel® Xeon® 6 Scalable Processors |
