*Status: Preliminary

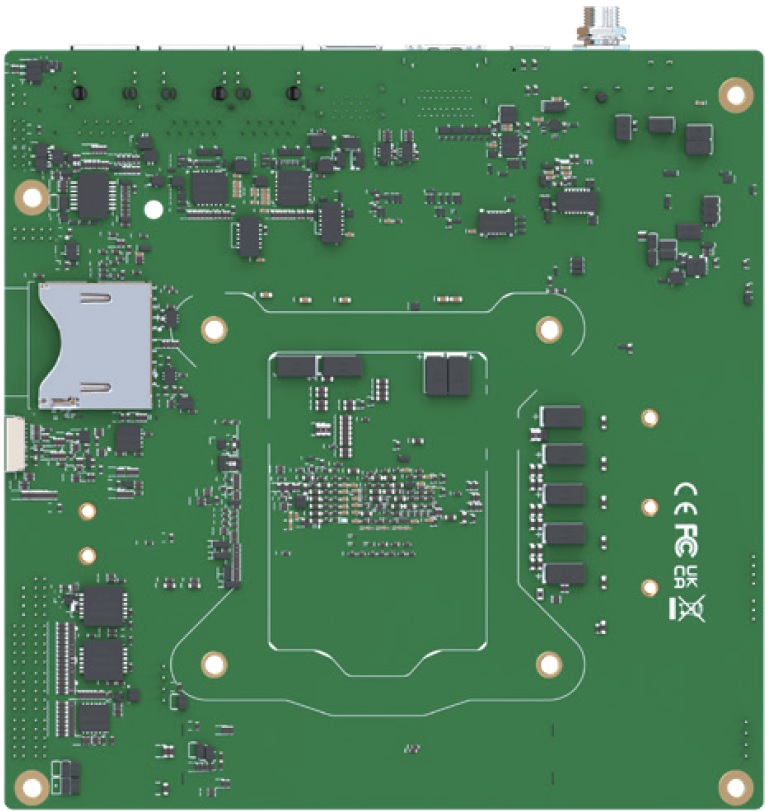

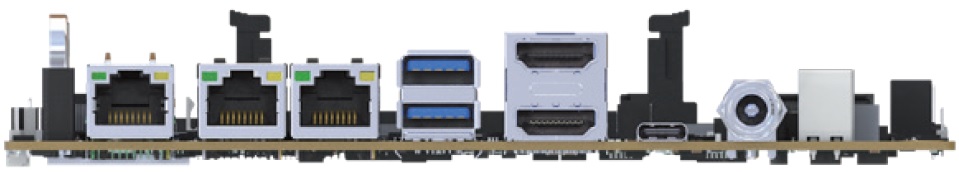

| Specification | |
|---|---|
| Processor | Intel® Core™ Ultra Processors (Series 3), 65W TDP |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 64GB DDR5 7200 MT/s on 2 non-ECC SODIMM |
| Watchdog Timer | Programmable, time out period from 1 sec to 255 secs |
| Graphic Controller | Intel® Xe LPG Graphics |
| Ethernet | - 1x Intel I210AT with GbE LAN 10/100/1000 Mbps (Support OOB w/ BIOS recovery, Power On/Off, Reset, SOL) - 2x Intel® I226V with 2.5 GbE LAN 10/100/1000/2500 Mbps |
| USB | - 2x USB 3.2 Gen2 Type A - 1x USB4 Type C (Support DP 1.4a display output) |
| Display | 2 x HDMI® 2.1 8192 × 4320@60Hz |
| PCIe | 1x PCIe Gen5 x8 Open Slot |
| Audio | 1x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC897 |
| Serial Port | - 4x Pin Header support RS-232 - 2x Pin Header support RS-232/422/485 |
| USB | 2 x USB 2.0 Pin Header |
| M.2 | - 1x M.2 M Key 2242 2260 2280 support PCIe x4 - 1x M.2 M Key 2280 support PCIe x4 - 1x M.2 B Key 3042 3052 support USB 2.0, USB 3.2, PCIe x1 |
| SIM | 1 x Nano SIM slot |
| Security | TPM 2.0 ( On Board IC ) |
| GPIO | 1x 8-bit Digital I/O |
| Others | 1x SMBus |
| Dimension | 170 x 170 mm (6.69" x 6.69") |
| Power Supply | DC Jack , 4-pin ATX connector 12~24V |
| Operating Temperature | 0 ~ 60 °C (32 ~ 140 °F) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC |
| OS | Windows 11 IoT Enterprise 2024 LTSC |
| Portwell Special Feature | OOB API, PET, RPET |
| Ordering Guide | |
|---|---|

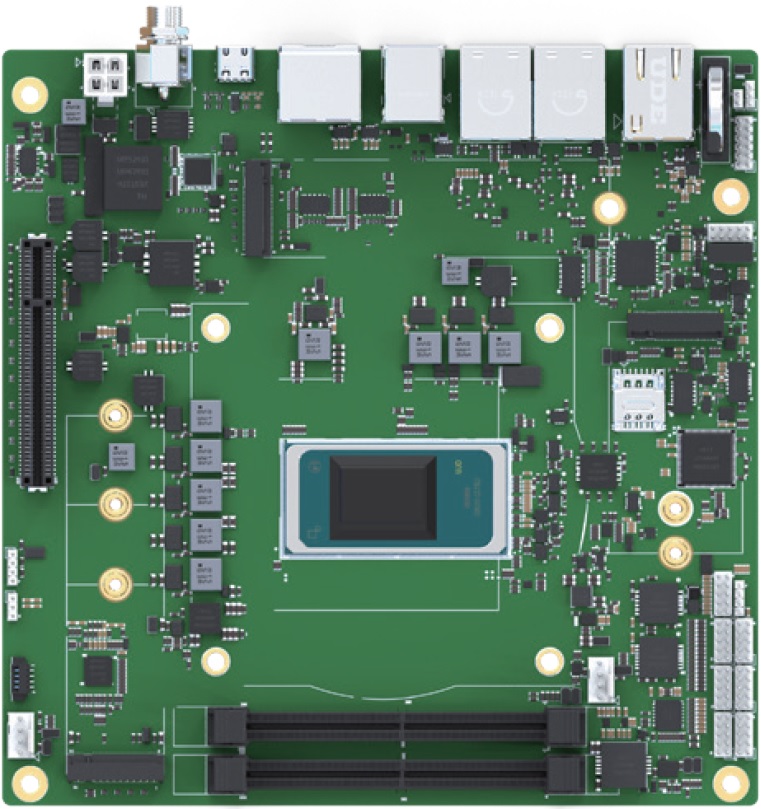

| WADE-807A | Mini-ITX ESB. Intel® Core™ Ultra Panther Lake H484 4Xe. w/o ECC BGA. w/DDR5 SODIMM/USB-C/HDMI/Triple GbE/COM/Audio/USB |
