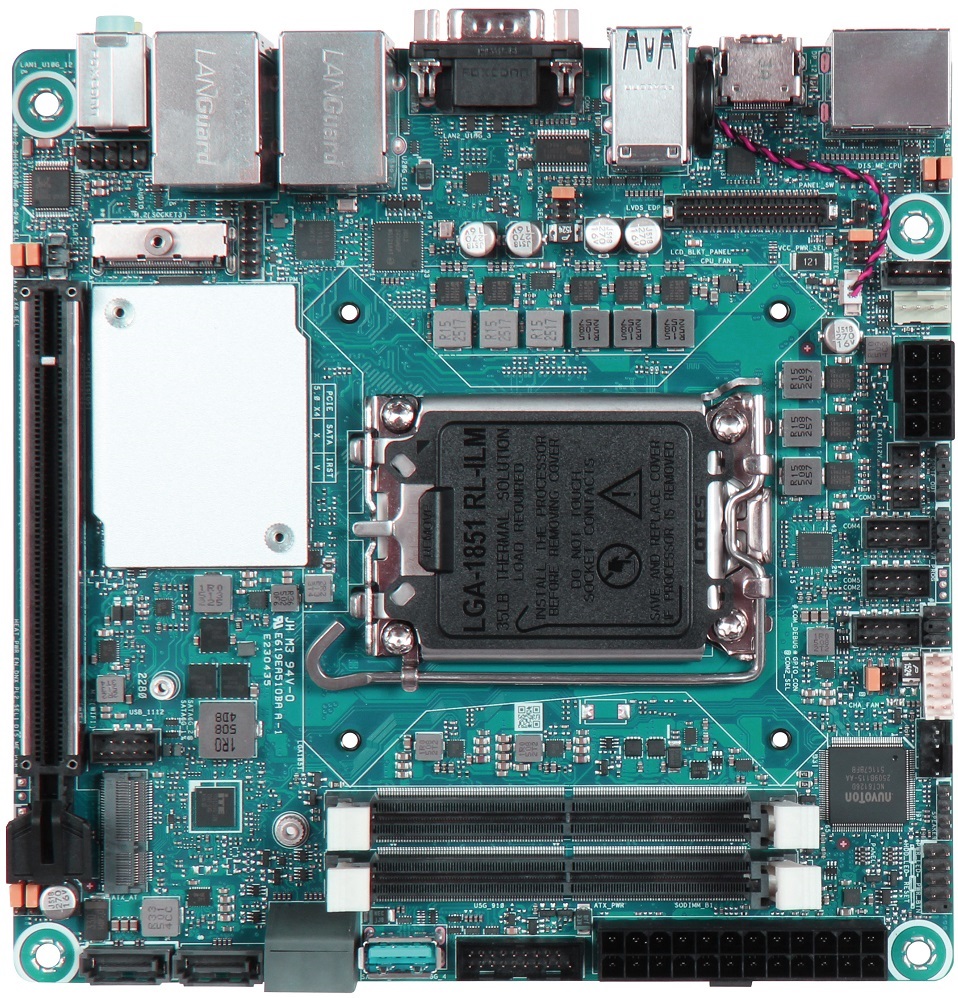

Designed for flexibility, it offers PCIe Gen5 x16 expansion, dual M.2 slots (Key E for wireless and Key M for NVMe storage), and dual Ethernet—including 2.5GbE for high-speed connectivity. With 11 USB 3.2 ports, USB4 Type-C, 5 COM ports, and 4 SATA III ports, the WADE-8214-Q870 provides extensive I/O options for industrial and edge AI workloads.
Advanced display capabilities include 2x DisplayPort 1.4 and HDMI 2.1, supporting resolutions up to 4096 x 2160 @ 60Hz, along with eDP/LVDS via onboard header. Built for reliability, it operates in temperatures from 0°C to 60°C, making it ideal for factory automation, IoT gateways, and embedded systems.
| Specification | |
|---|---|
| Processor | Intel® Core™ Ultra Processors (Series 2), LGA 1851 socket, 65W TDP |
| Chipset | Intel® Q870 |
| BIOS | AMI uEFI BIOS |
| Memory | Supports up to 96GB DDR5 6400 MT/s on 2 non-ECC SODIMM |
| Storage | 4x SATA ports RAID 0, 1, 5, 10 |
| Watchdog Timer | Programmable, time out period from 1 sec to 255 secs |
| Graphic Controller | Intel® Graphics OpenGL 4.5 |

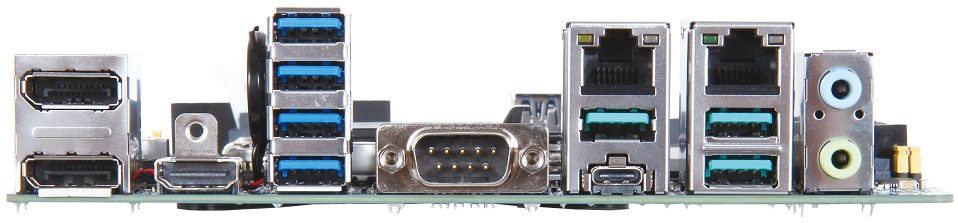

| Rear - Audio | - 1x Audio Jack Line-in w/ Realtek ALC897 - 1x Audio Jack Line-out w/ Realtek ALC897 |
| Rear - Ethernet | - 1x Intel I210AT with GbE LAN 10/100/1000 Mbps - 1x Intel I226LM with 2.5GbE LAN 10/100/1000/2500 Mbps |
| Rear - Serial Port | - 1 x COM ports support RS-232/422/485 |
| Rear - USB | - 3x USB 3.2 Gen2 Type A on Bracket - 4x USB 3.2 Gen1 Type A on Bracket - 1x USB4 Type C on Bracket |
| Rear - Display | - 2x DP 1.4 4096 x 2160@60Hz - 1x HDMI® 2.1 4096 x 2160@60Hz |
| PCIe | 1x PCIe Gen5 x16 ( 1 x16 mode, 2 x8, 1x8; 2x4 mode ) |
| Serial Port | - 1x Pin Header support RS-232/422/485 - 3x Pin Header support RS-232 |
| USB | - 1x USB 3.2 Gen1 Vertical Type A - 2x USB 3.2 Gen1 Pin Header |
| M.2 | - 1x M.2 2230 Key E support CNVi, PCIe x1 - 1x M.2 2280 Key M support PCIe x4 TPM |
| Security | SPI header |
| Display | 1x eDP / LVDS (On Board Header) |
| GPIO | 1x 8-bit Digital I/Os |
| Dimension | 170 x 170 mm (6.69" x 6.69") |
| Power Supply | AT mode/ ATX mode |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC UKCA |
| OS | Windows 11 IoT Enterprise 2024 LTSC, Windows 10 IoT Enterprise 2022 LTSC |
| Portwell Special Feature | PET, RPET |
| Ordering Guide | |
|---|---|
| AB1-3U52 | WADE-8214-Q870. Mini-ITX. ESB. Q870. Intel® Core™ Ultra. LGA1851. w/o ECC. w/DDR5 SODIMM/DP/HDMI/Dual GbE/COM/Audio/USB |
