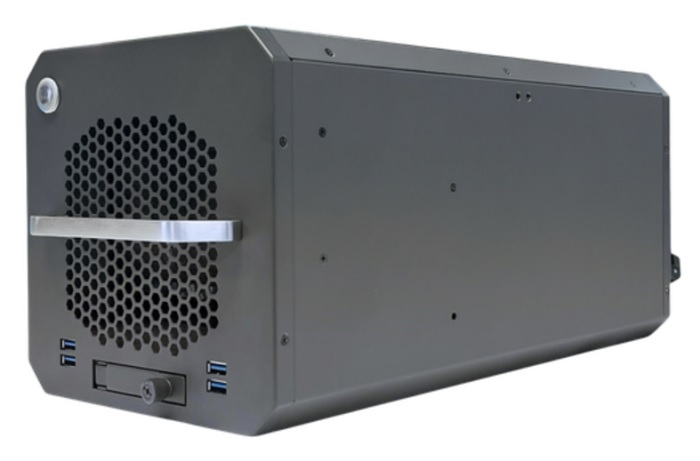

NURO-812E

High-End Edge GPU Workstation with 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processor Featuring PCIe Gen 5 Support



Features

  • Tested with NVIDIA RTX™ 6000 Ada Generation, NVIDIA RTX A6000, NVIDIA RTX A4500, NVIDIA RTX 4000 SFF Ada Generation and NVIDIA RTX A2000 graphics cards
  • Supports 1x full-size PCIe Gen 5 x16 GPU
  • Supports Intel® R680E/Q670E chipset
  • Delivers up to 64GB DDR5 4800 MT/s
  • ECC and Non-ECC SO-DIMM on two sockets
  • Supports 1x M.2 NVMe SSD and 1x Removable 2.5” SATAIII drive
  • 850W/1200W Removable PSU



The Portwell’s NURO-812E is a high-end edge computing GPU workstation based on 14th/13th/12th Gen Intel® Core™ processor, and is capable of supporting single full-height, full-length PCIe Gen 5 x16 GPU card. With its high-performance capability, NURO-812E is designed for AI inference applications.

[Use Case] Robotic Weeder

Specification
Processor- 14th/13th/12th Generation Intel® CoreTM processors family in LGA1700 package
- 8x DMI 4.0
- Support Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring, Trusted Execution and Speed Step Technology (depends on CPU
ChipsetIntel® R680E/Q670E
BIOS AMI uEFI BIOS
Memory- Supports up to 64GB DDR5 4800 MHz SDRAM on two 262-pin SO-DIMM sockets
- Supports both ECC and non-ECC
Display Interface1DP and 1HDMI, resolution up to 4096x2304@ 60 Hz
Storage Devices- 1x SATAIII drives (Additional Dual ports via Backplane)
- 1x M.2 Type M 2280
Watchdog TimerProgrammable watchdog timer, time out period from 0.5 sec to 254.5 secs.
Hardware MonitoringSystem monitor(Voltage,Fan Speed and Temperature)
Expansion Interface- 16x Gen5 x1
- 4x Gen4 x1
Super I/O
(Embedded Controller)
IT512E-1
Audio- Realtek ALC888S HDA codec, one 7.1 channel on board audio pin header
Ethernet- Marvell AQC114C 5G Gigabit Ethernet controller
- 2 x 5GbE Ethernet ports
GPIOOn board programmable 8-bit Digital I/Os
USB- 2x USB 3.2 Gen 2 ports on Rear I/O (10Gb/s)
- 2x USB 3.2 Gen 1 ports on Rear I/O (5Gb/s)
- 4x USB 3.2 in the front
Dimension (W x H x L)8' x 8' x 16'
Power Input850W/1200W Removable PSU
Environment- Operation Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 80°C
- Relative Humidity: 5~95%, RH
Weight8kg (20 lbs)


Ordering Guide
500-23-0040(R).NURO-812E. High-End Edge GPU Workstation with 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processor Featuring PCIe Gen 5 Support
