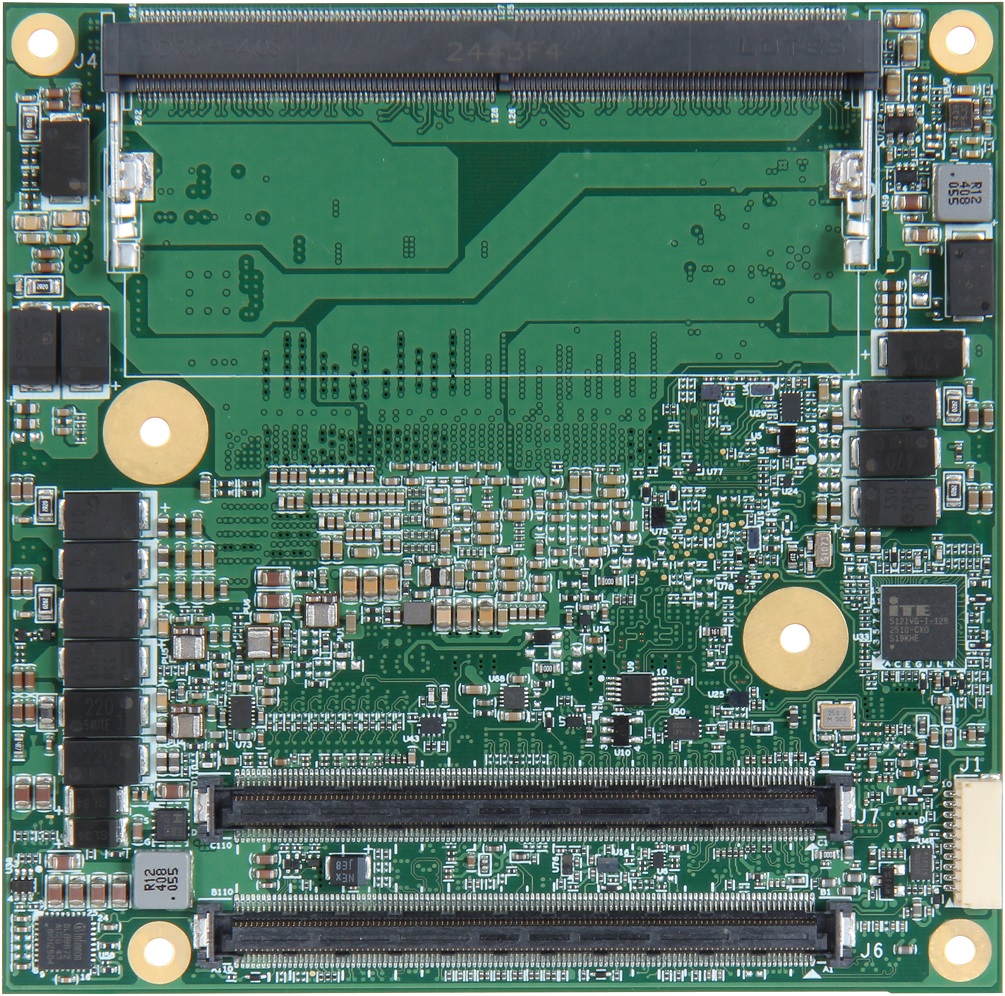

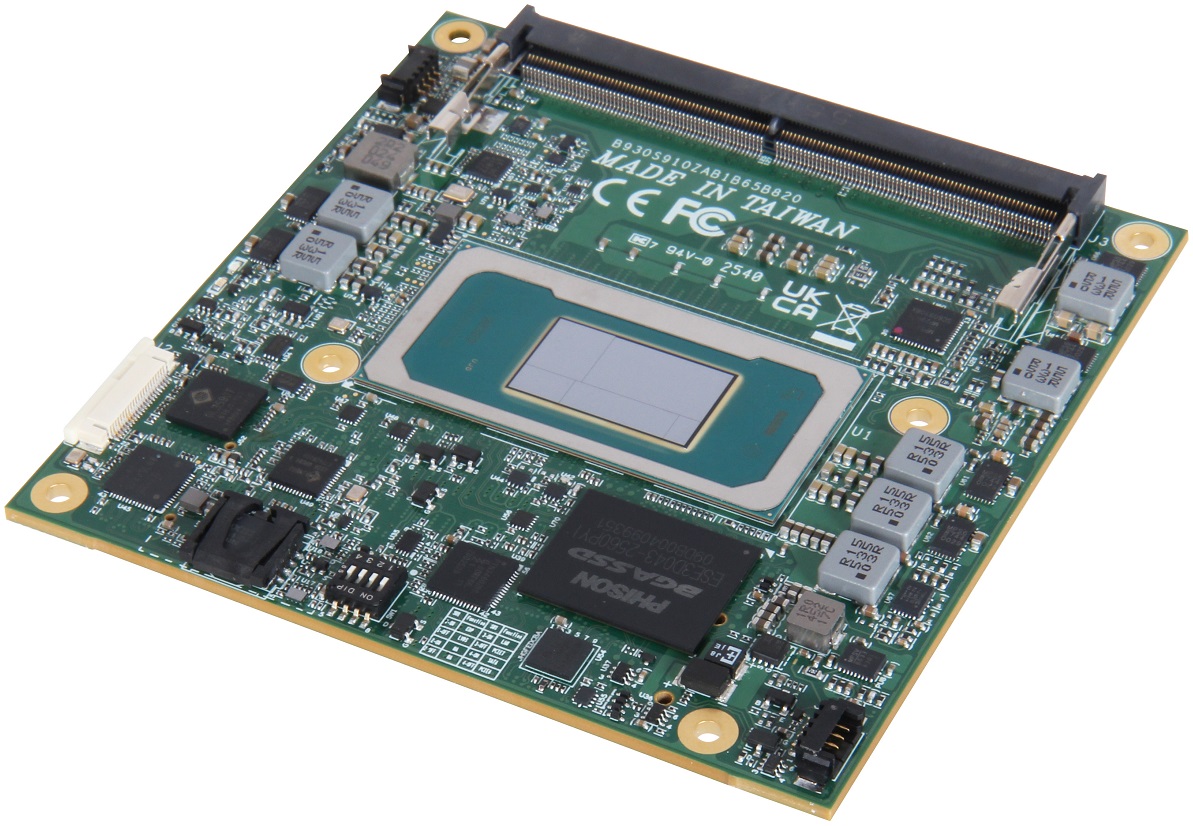

PCOM-B65B

COM Express Type VI Compact Size Module based on Intel® Core™ Ultra Processors (Series 3) with DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen 2, 2.5 GbE TSN Ethernet, discrete TPM 2.0, eDP, SATAIII
*Status: Preliminary

×

1

2

3

❮ ❯

Features

Intel® Core™ Ultra Processors (Series 3) (Panther Lake) with up to 16 cores
Built-in Intel Arc GPU with up to 12 Xe cores and up to120 TOPS
Featuring NPU 5 with up to 50 TOPS
Dual-channel DDR5 SO-DIMM up to 128GB, 7200 MT/s with IBECC
Up to 12 PCIe Gen4 lanes
On-board NVMe SSD (optional up to 1TB)
CSI connector for camera integration
Extensive I/O: USB4, USB 3.2, USB 2.0, SATA, 2.5GbE
Supports DDI/eDP/LVDS (optional)
Extended temperature SKU options

Documents & Downloads

The Portwell PCOM-B65B Type 6 COM Express Compact module is purpose-built to harness the full capabilities of the Intel® Core™ Ultra processors (Series 3) in compact, scalable embedded designs. With balanced performance, a flexible power range (15W–45W), and rich expansion options, it’s ideal for long-life industrial deployments. PCOM-B65B is engineered for scalability and integration flexibility. The module offers up to 12 PCIe Gen4 lanes, high-speed DDR5 memory, optional onboard NVMe, and powerful AI acceleration from Intel Core Ultra processors—enabling customers to build compact yet highly capable edge solutions for machine vision, diagnostics, aerospace, and industrial control.

Specification
Form Factor	COM Express Type 6 Compact Size (95 mm x 95 mm)
CPU Series	Intel® Core Ultra X9 Series Intel® Core Ultra X7 Series Intel® Core Ultra 5 Series Intel® Core Ultra 7 Series
BIOS	AMI uEFI BIOS
ECC	Board
Storage	PCIe (NVMe) up to 256GB
Memory	2x SO-DIMM DDR5 up to 128GB 7200 MT/s
SATA	2x SATA III (Shared w/ PCIe)
USB	4x USB 3.2 Gen1 x2 8x USB 2.0
Ethernet	1x 2.5 Gbe LAN (Shared w/ PCIe)
PCIe	1x PCIe Gen4 x4 1x PCIe Gen4 x1 (Shared w/ SATA) 1x PCIe Gen4 x1 (Shared w/ LAN) 6x PCIe Gen4 x1
Legacy I/O	8x GPIO 2x UART
Security	TPM 2.0
Display	eDP / LVDS eDP up to HBR3 3840 x 2160@120Hz eDP / LVDS LVDS (24bit, dual channel) 1920 x 1200@60Hz DDI 1/2/3 DP up to HBR3 3840 x 2160@120Hz DDI 1/2/3 HDMI® 2.1 DDI 1/2/3 USB4 40Gb
Dimension	95 mm x 95 mm (3.74” x 3.74”)
Operating Temperature	-40 ~ 85 °C (-40 ~ 185 °F)
Storage Temperature	-40 ~ 85 °C (-40 ~ 185 °F)
OS	Linux, Windows 11
Portwell Special Feature	Portwell Engineering Toolkit (PET)

Ordering Guide
PCOM-B65B	COM Express Type VI Compact Size Module. Intel® Core™ Ultra Processors (Series 3). DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen 2, 2.5 GbE TSN Ethernet, discrete TPM 2.0, eDP, SATAIII *Please refer to product datasheet for additional ordering information.
