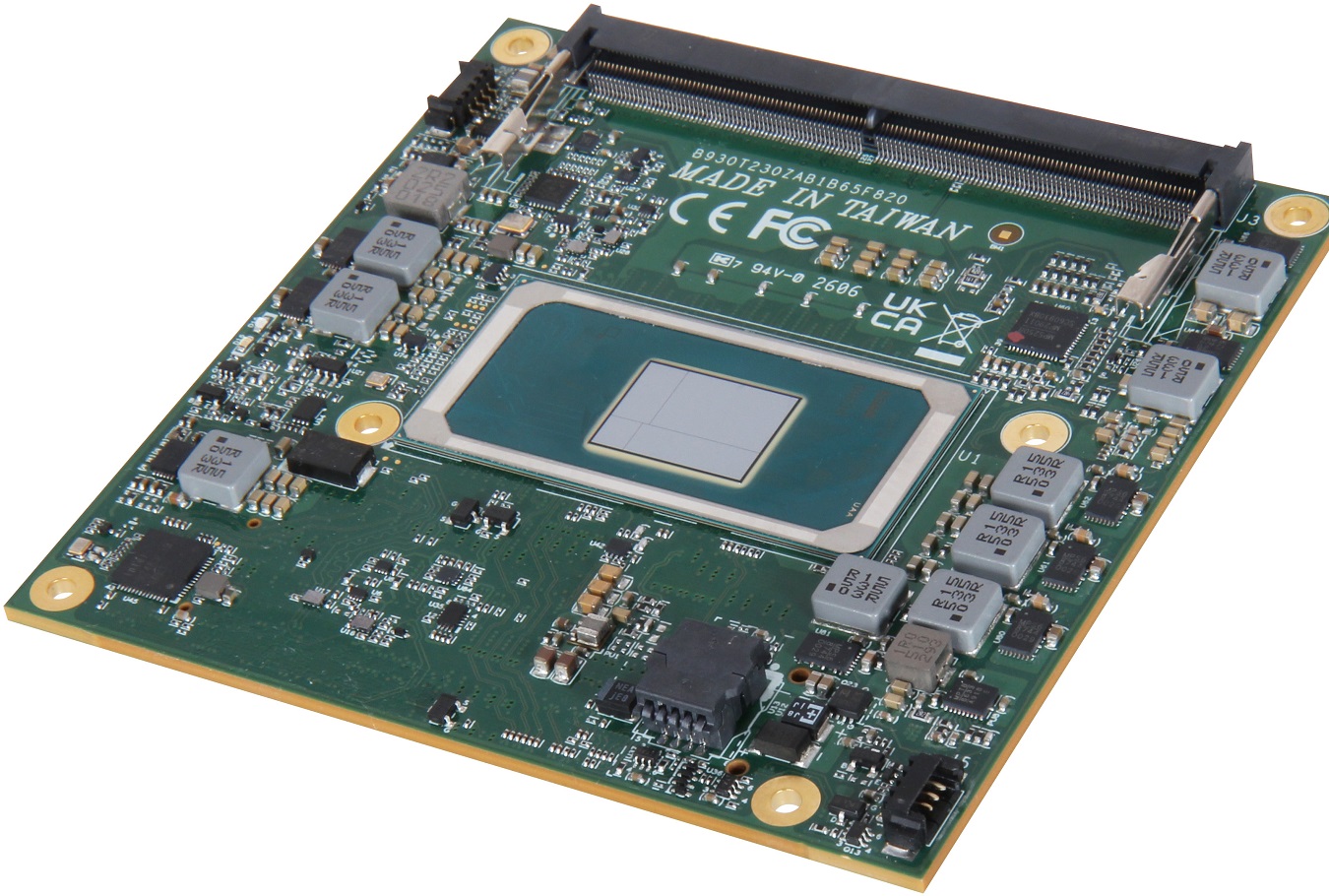

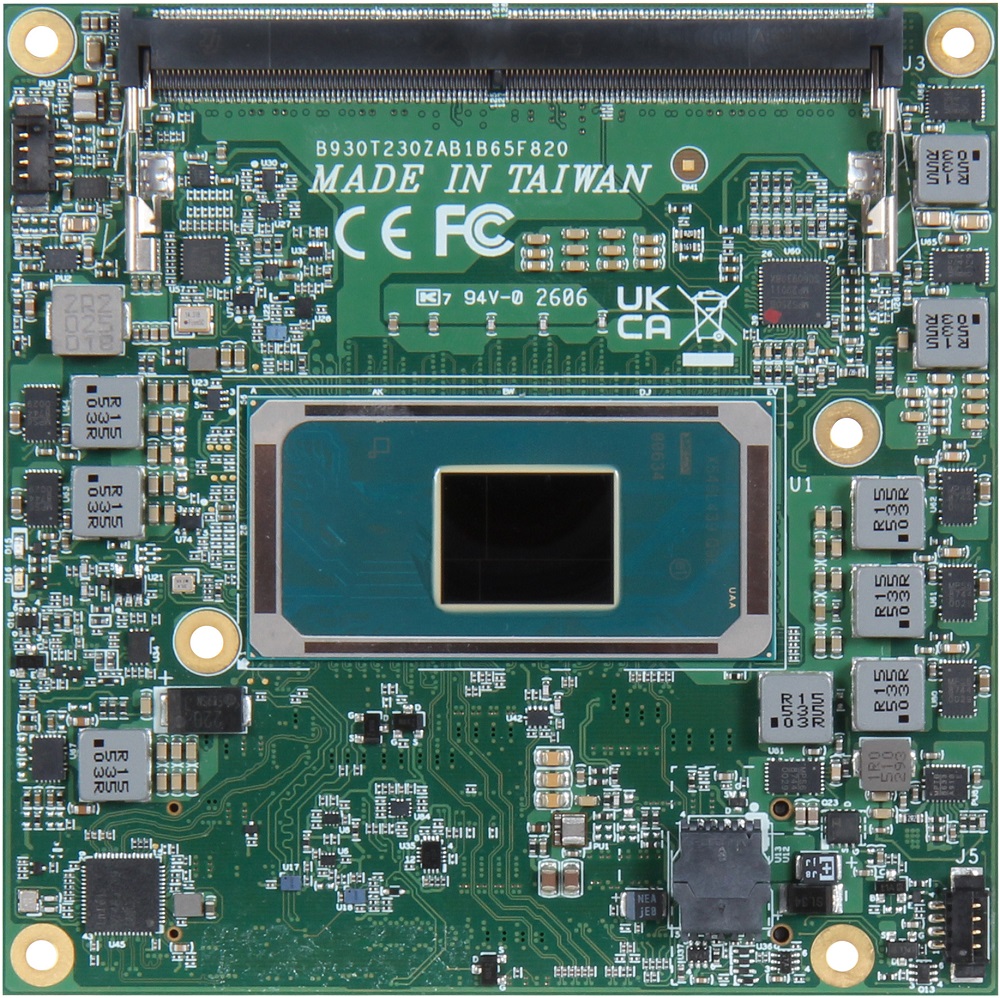

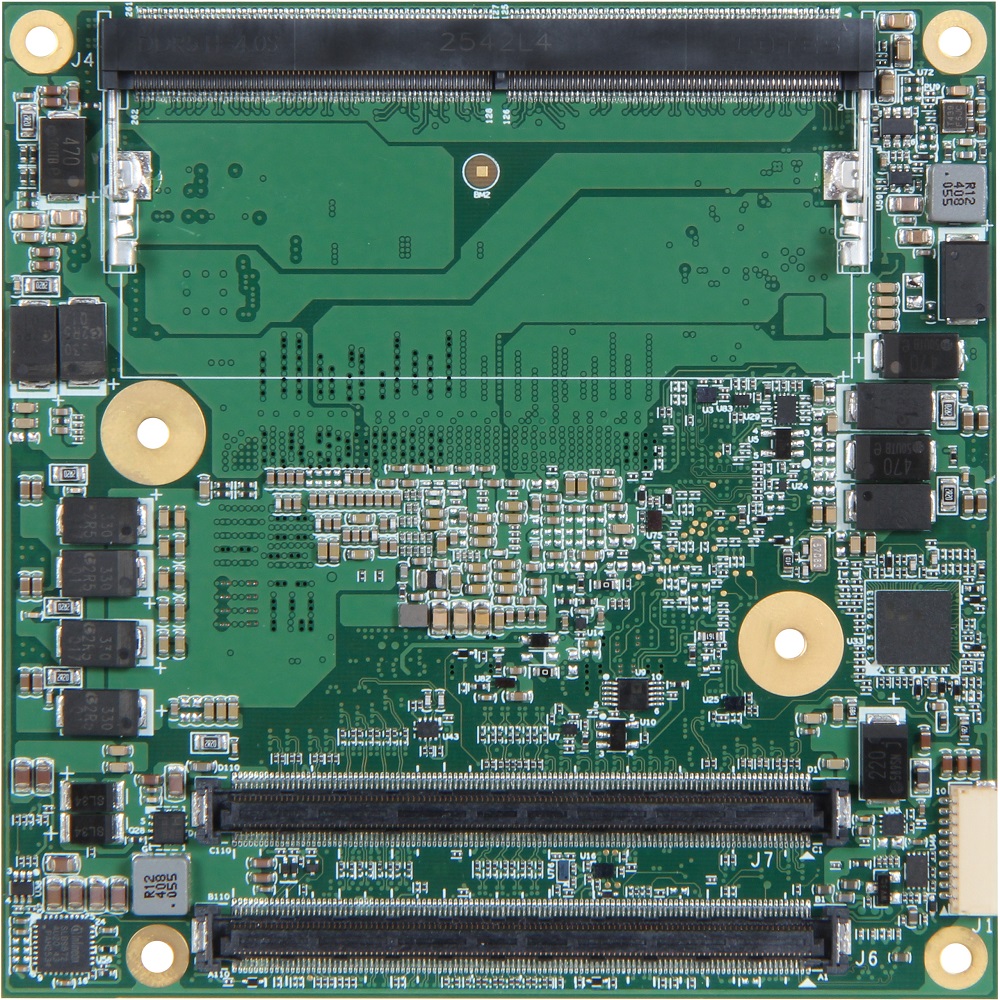

PCOM-B65F

COM Express Type VI Compact Size Module based on Intel® Core™ Ultra Processors (Series 3) with DDR5 SO-DIMM, PCIe Gen 5, USB 3.2 Gen 2, 2.5GbE Ethernet, TPM 2.0, DDI, eDP
*Status: Preliminary

×

1

2

3

❮ ❯

Features

Intel® Core™ Ultra Processors (Series 3) (Panther Lake) with up to 16 cores
Built-in Intel Arc GPU with up to 4 Xe cores and up to 40 TOPS
Featuring NPU 5 with up to 50 TOPS
Dual-channel DDR5 SO-DIMM up to 128GB, 7200 MT/s with IBECC
Up to 20 PCIe Gen4 lanes
4x USB 3.2 Gen 2, 2x DDI, eDP
Extended temperature SKU options

Documents & Downloads

The Portwell PCOM-B65F is a COM Express Type 6 Compact module powered by Intel® Core™ Ultra Processors (Series 3), featuring DDR5 memory support, PCIe Gen5 expansion, advanced AI acceleration, 2.5GbE networking, and rich display interfaces. Designed for embedded edge AI, industrial automation, transportation, and intelligent computing applications, it delivers high performance in a compact, scalable form factor.

Specification
Form Factor	COM Express Type 6 Compact Size (95 mm x 95 mm)
CPU	Intel® Core™ Ultra 9 Processor 386H; 16C/16T; 2.1GHz, max. turbo 4.9GHz; 18M cache; 25W TDP; 4x Xe graphics cores Intel® Core™ Ultra 7 Processor 366H; 16C/16T; 2.0GHz, max. turbo 4.8GHz; 18M cache; 25W TDP; 4x Xe graphics cores Intel® Core™ Ultra 7 Processor 356H; 16C/16T; 1.9GHz, max. turbo 4.7GHz; 18M cache; 25W TDP; 4x Xe graphics cores Intel® Core™ Ultra 5 Processor 336H; 12C/12T; 1.9GHz, max. turbo 4.5GHz; 18M cache; 25W TDP; 4x Xe graphics cores
ECC Memory Support	IBECC
BIOS	AMI uEFI BIOS
Memory	2x DDR5 SO-DIMM, up to 128GB, 7200 MT/s
USB	4x USB 3.2 Gen2 8x USB 2.0
Ethernet	1x 2.5 GbE LAN (Shared w/ PCIe)
PCIe	1x PCIe Gen5 x8 1x PCIe Gen5 x4 7x PCIe Gen4 x1
Legacy I/O	8x GPIO 2x UART
Security	TPM 2.0
Display	eDP up to HBR3 2x DDI DP up to HBR3
Dimension	95 mm x 95 mm (3.74' x 3.74')
Operating Temperature	-40 ~ 85 °C (-40 ~ 185 °F)
Storage Temperature	-40 ~ 85 °C (-40 ~ 185 °F)
OS	Linux, Windows 11
Portwell Special Feature	Portwell Engineering Toolkits (PET)

Ordering Guide
PCOM-B65B	COM Express Type VI Compact Size Module. Intel® Core™ Ultra Processors (Series 3). DDR5 SO-DIMM, PCIe Gen 5, USB 3.2 Gen 2, 2.5GbE Ethernet, TPM 2.0, DDI, eDP *Please refer to product datasheet for additional ordering information.
