| Specification | |
|---|---|
| Form Factor | SMARC (82 x 50 mm) |
| Processor | Intel Atom® x7835RE; 8x cores; 1.3GHz, max. turbo 3.6GHz; 6M cache; 12W TDP Intel Atom® x7433RE; 4x cores; 1.5GHz, max. turbo 3.4GHz; 6M cache; 9W TDP Intel Atom® x7213RE; 2x cores; 2.0GHz, max. turbo 3.4GHz; 6M cache; 9W TDP Intel Atom® x7211RE; 2x cores; 1.0GHz, max. turbo 3.2GHz; 6M cache; 6W TDP Intel® Core™ 3 Processor N355; 8x cores; 1.0GHz, max. turbo 3.9GHz; 6M cache; 15W TDP Intel® Processor N97; 4x cores; 2.0GHz, max. turbo 3.6GHz; 6M cache; 12W TDP |
| Processor Graphics | Intel® UHD Graphics, up to 32 execution units (EUs) |
| Memory | Onboard LPDDR5 memory up to 16GB; supports non-ECC (In-Band ECC) |
| Storage | Onboard eMMC up to 256GB |
| SATA | 1 x SATA III |
| USB | 2 x USB 3.2 Gen2 6 x USB 2.0 |
| Ethernet | 2 x 2.5GbE (NBASE-T) Ethernet (Intel® i226 series) |
| Serial I/O | - GPIO: 8-bit ( 4 input / 4 output default) - I2C: 3.2 MHz - SMBus: 1 MHz - UART: 2 x serial ports (Tx/Rx) - eSPI: share with SPI1 - CAN bus: 2 x CAN bus interfaces (Optional) |
| PCIe | 4 x PCIe Gen3 x1 or 2 x PCIe Gen3 x2 |
| Display | - Primary: eDP/LVDS, up to 3840 x 2160 @ 120Hz - Secondary: DP/HDMI, up to 4096 x 2160 @ 60Hz - Third: DP++, up to 4K resolution |
| CSI | Supports 2 x MIPI-CSI (4-channel + 2-channel) camera interfaces to carrier |
| Security | TPM 2.0 |
| Dimension | 82 x 50 mm (3.23" x 1.97") |
| Power Input | DC 5V +/-5% (4.75–5.25V) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) -40°C to 85°C (-40°F to 185°F) (Industrial SKUs) |
| Certification | TBD |
| MTBF | TBD |
| Vibration | TBD |
| OS | Windows 11 Ubuntu |
| Ordering Guide | |
|---|---|

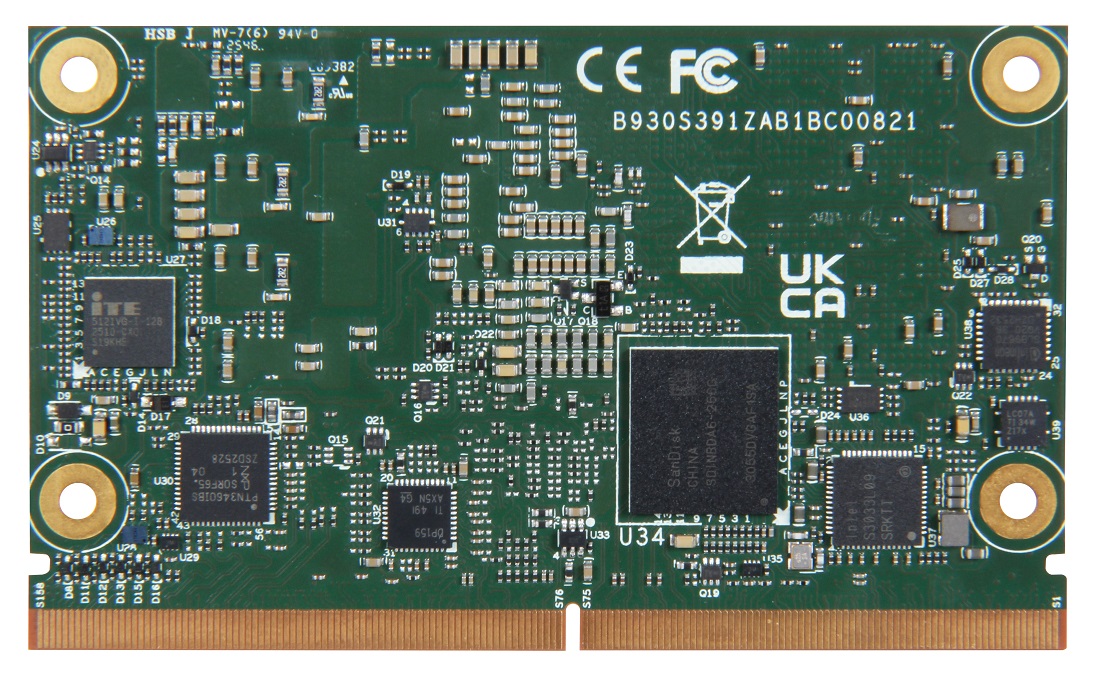

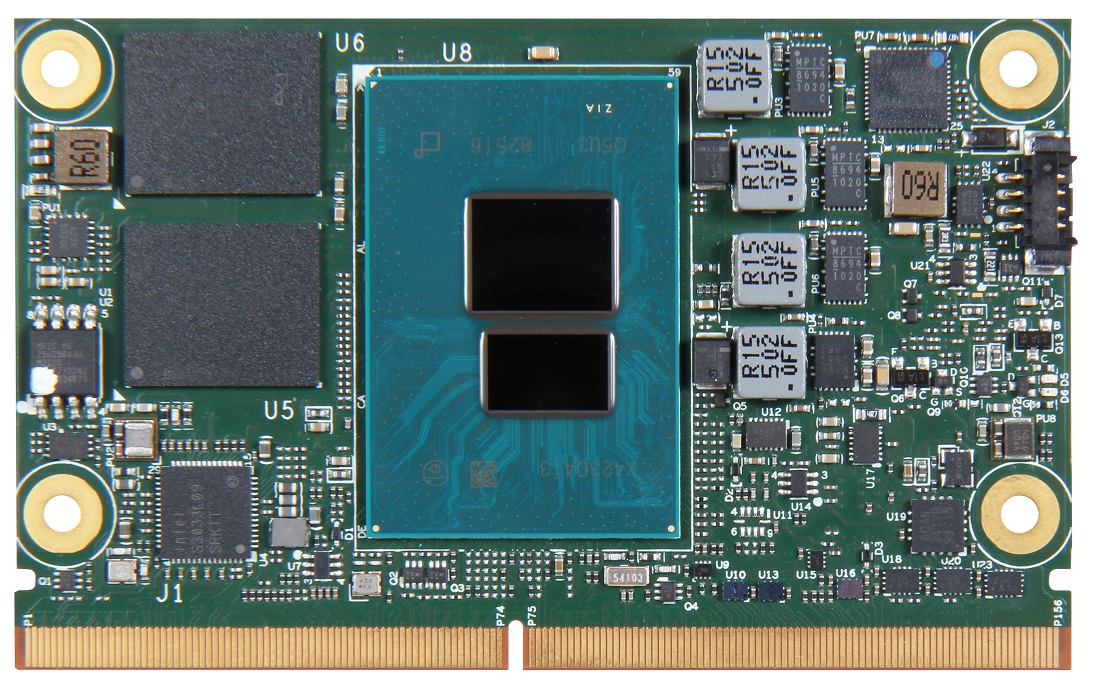

| PCOM-BC00 | SMARC 2.2 Module based on Intel Atom® x7000RE Series Processors, Intel® Core™ Processor N-series, and Intel® Processor N-Series |
