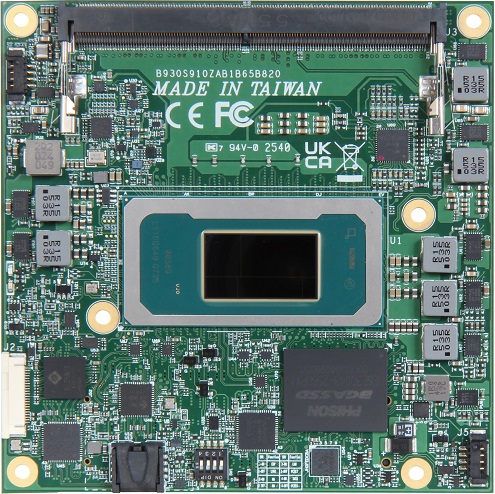

PCOM-B659

COM Express Type VI Compact Size Module based on 13th Gen Intel® Core™ Processors (formerly Raptor Lake-P) with DDR5 SO-DIMM, DDI, PCIe Gen 4, USB4, USB 3.2 Gen 2, 2.5 GbE TSN Ethernet, discrete TPM 2.0, eDP, SATAIII

×

1

2

3

❮ ❯

Features

13th Gen Intel® Core™ processors series (formerly Raptor Lake-P)
Up to 14C/20T, and up to 96x graphic execution units
2x DDR5-5200 non-ECC SO-DIMMs up to 96GB, 2x Gen 4 x4, and 8x PCIe Gen 3 x1
4x USB 3.2 Gen 2, 8x USB 2.0, 2x SATAIII, 3x DDI, VGA, eDP/LVDS, 2x USB4 (option)
Industrial temperature range -40°C to +85°C (option)
Onboard PCIe NVMe SSD (option)

Documents & Downloads

The Portwell PCOM-B659 is a COM Express Type VI Compact size module designed with the 13th Gen Intel® Core™ P/U-series processors, and based on the PICMG COM Express Module Base Specification Rev 3.1. Specifically, the 13th Gen Intel Core processor platform adopts Intel 7 lithography process and supports AI acceleration with Intel Deep Learning Boost (VNNI) to offer advanced computing performance with 12~28W thermal power for dynamic embedded use conditions. PCOM-B659 features PCIe Gen 4 and 2x non-ECC DDR5 SO-DIMM interfaces, and is suitable for mission critical use cases and AI edge computing. It also provides (up to) 8x PCIe Gen 3 x1 lanes, 2x USB4 (option; default interface DDI), 4x USB 3.2 Gen 2, and 2x SATA III. Moreover, its extensive and flexible I/O capacity makes it ideal for diverse embedded/industrial applications.

Specification
Processor	- 13th Gen Intel® Core™ i7/i5/i3 processors, up to 14 cores/16 threads - P series Industrial: i7-1370PRE / i5-1350PRE / i3-1320PRE - P series Embedded: i7-1370PE / i5-1350PE / i5-1340PE / i3-1320PE - U series Industrial: i7-1365URE / i5-1345URE / i3-1315URE - U series Embedded: i7-1365UE / i5-1345UE / i5-1335UE / i3-1315UE / U300E
PCH	SoC
ECC Memory Support	No
Memory Type/ Speed	DDR5 SO-DIMM up to 96GB 5200MT/s
SATA	2x SATA III share with PCIe lane
USB	- 2x USB4 (option; default interface DDI) - 4x USB 3.2 Gen2 - 8x USB 2.0
Ethernet	Intel® I226 series (Support TSN/TCC on industrial SKU)
Serial I/O	- GPIO: 8 bit GPIO (default 4 input/4 output) - I2C: Baud Rate: 400KHz - SMBus: Baud Rate: 100KHz - UART: TX/RX signal only
PCI Express Gen4	2x Gen4 x4
PCI Express Gen3	8x Gen 3.0 x1 (2 lanes share with SATA, 1 lane share with LAN)
Storage	Up to 1TB onboard NVMe SSD (share with PCIe Gen4 x4 lanes)
Display	- 2x DDI (HDMI/DP), resolution up to 4K - 1x LVDS (or eDP), resolution up to 4K
Security	TPM 2.0
Dimension	95 x 95mm
Power DC IN	Normal: +12V DC AT/ATX mode
Storage Temperature	-40°C to 85°C
Operation Temperature	0°C to 60°C -40°C to 85°C (Industrial SKU)
Certification	Contact us
MTBF	TBD
Vibration	TBD
OS	- Windows 10/11 - Ubuntu

Ordering Guide
PCOM-B659	COM Express Type VI Compact Size Module. 13th Gen Intel® Core™ Processors. DDR5 SO-DIMM, DDI, PCIe Gen 4, USB4, USB 3.2 Gen 2, 2.5 GbE TSN Ethernet, discrete TPM 2.0, eDP, SATAIII *Please refer to product datasheet for additional ordering information.
