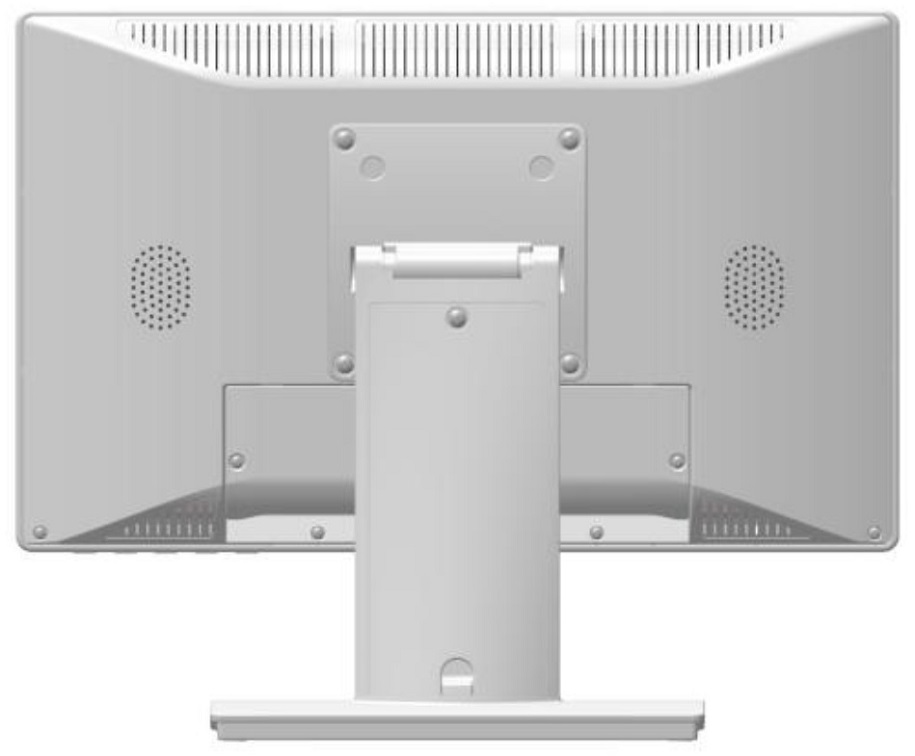

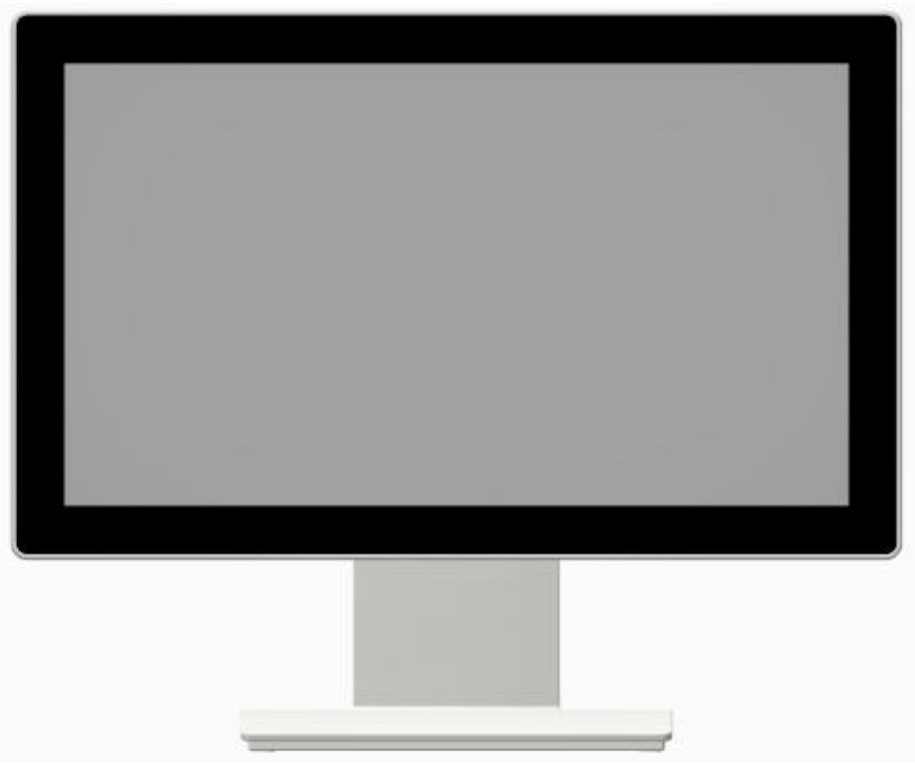

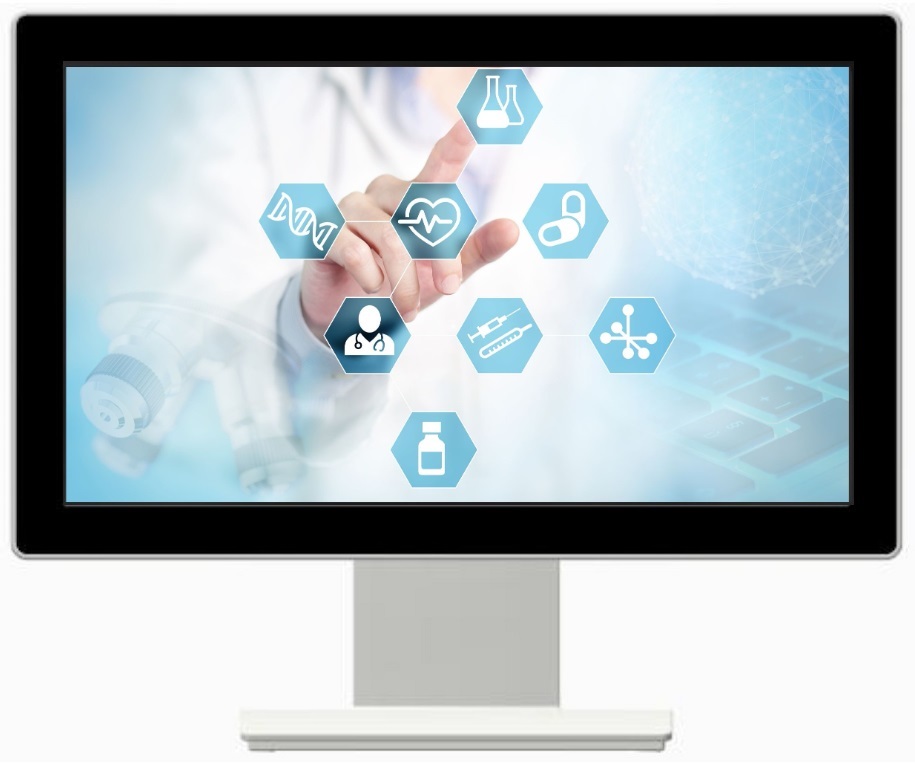

MEDS-M1561

15.6" Medical-Grade True-Flat USB-C Display

×

1

2

3

❮ ❯

Features

15.6“ Full HD (1920 x 1080) Medical-Grade LCD
True-Flat Design with PCAP Touch for seamless operation and easy cleaning
User-friendly OSD menu
DDC2B Plug and Play Ready
Optional DICOM
Single-cable USB-C (USB data, DisplayPort, Power Delivery)

Documents & Downloads

Engineered for modern healthcare environments, Portwell’s 15.6” medical-grade display with USB-C connectivity is the ideal operator interface for medical equipment. It features a wide viewing angle, high contrast ratio, and high brightness to provide consistent, reliable, and high-quality images. Designed for seamless integration, the monitor includes VESA mounting, DICOM support, an IPX1-rated enclosure, and a single-cable USB-C solution that supports USB data, DisplayPort (DP), and Power Delivery (PD).

Certified to IEC 60601-1-2:2014 + A1:2020 (Edition 4.1 Edition) EMC and IEC 60601-1:2005 + A1:2012 + A2:2020 (Edition 3.2) safety standards, it delivers uncompromising performance across a wide range of clinical applications.

Specification
LCD Size / Type	15.6" MVA
Resolution	1920 x 1080 (FHD)
Brightness	300 nits (typ.)
Contrast Ratio	1000:1 (typ.)
Backlight	LED
Touch Screen	PCAP (USB-C interface)
Viewing Angle	178°(H) / 178°(V)
Color Support	16.2M colors
Active Screen Area	344.16 x 193.59 mm
Support Resolution	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1360 x 768, 1680 x 1050, 1920 x 1080
Video Input	1x HDMI 1.4
USB-C	1x USB-C (DP Alt Mode, Touch, USB 3.0 Upstream, Power Delivery)
USB Hub	2x USB Type-A 2.0 (downstream)
Power Connector	1x DC Jack (2.5mm lockable)
Power Input (Monitor)	12VDC/5A (If both the USB Type-C port and DC barrel input are connected simultaneously, the DC barrel power input takes priority.)
Power Adapter	AC IN: 100~240V; DC OUT: 12V/5A
Power Consumption	9.66 W
Temperature Range	Operating: 5~40°C / Storage: -10~60°C
Humidity Range	Operating: 20~80% / Storage: 10~90% (non-condensing)
Dimensions	392.96 (W) x 326.73(H) x 159.96(D) mm
Weight	Net Weight: 3.21 kg Gross Weight: 4.51 kg
VESA Mount	100 x 100 mm
Certification	- Safety: IEC 60601-1, EN 60601-1, ANSI/AAMI ES60601-1 - EMC: IEC 60601-1-2, EN 60601-1-2, ANSI/AAMI ES60601-1-2 - Regulatory: CE, FCC Part 18 - Environmental: RoHS, WEEE, REACH
